SenseCAP Solar Node P1 for Meshtastic - Solar-powered LoRa and Meshtastic module
ID: 1198710
zł384.47
Tax included
zł312.58 tax excl.

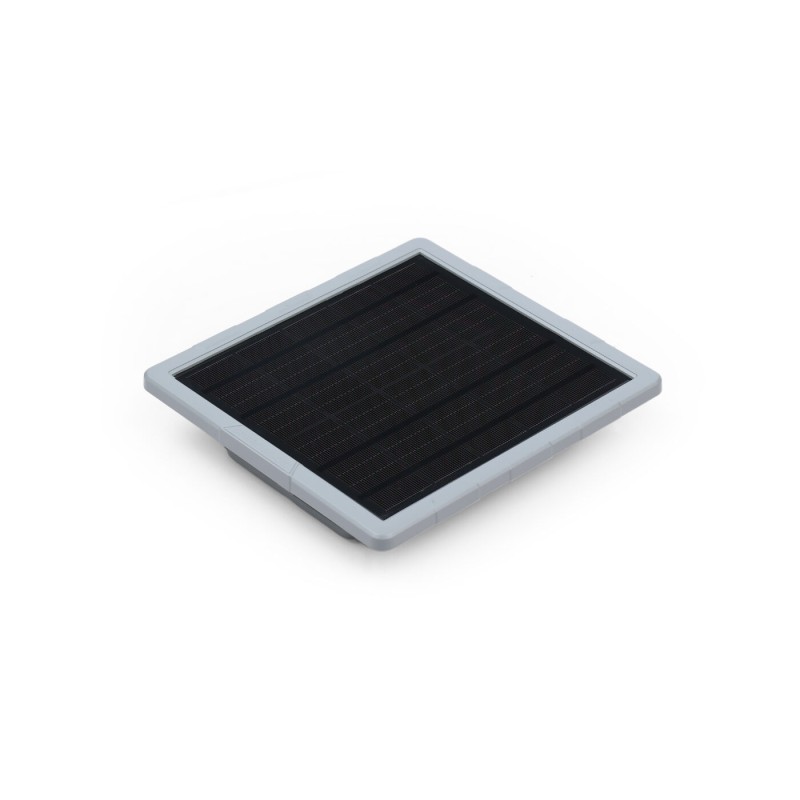

Solar-powered communication node integrating LoRa modules and XIAO nRF52840 Plus microcontroller, ready to work thanks to pre-installed Meshtastic software. The device is equipped with a 5W solar panel, which makes it ideal for field work. Thanks to its long range (up to 8-9 km) and the possibility of expansion via Grove interface, P1 will be useful in environmental monitoring, IoT, exploration and emergency communication. Seeed Studio 114993643
Description
The SenseCAP Solar Node P1 is a self-powered communication node with solar energy supply, designed for use in remote or off-grid environments. It integrates the XIAO nRF52840 Plus microcontroller and the Wio-SX1262 LoRa module, enabling long-range communication with ultra-low power consumption. Preloaded with Meshtastic firmware, the device is ready to use straight out of the box.
The kit includes a 5W solar panel, making it perfect for outdoor environments. Thanks to the built-in Grove interface, you can easily connect various sensors, making it a versatile monitoring tool. The communication range between two devices can reach up to 8–9 km in open terrain. The device can act as a field node, relay, or an expansion point for a Meshtastic network, significantly extending its coverage. It is ideally suited for environmental monitoring, IoT applications, field exploration, and emergency communication.
Features
- Main controller: XIAO nRF52840 Plus (ARM Cortex-M4, 64 MHz, 256KB RAM, 1MB Flash + 2MB external memory)
- LoRa module: Wio-SX1262 (Semtech SX1262, up to 22 dBm transmit power, 868–915 MHz)
- Antenna LoRa: rod antenna, 2 dBi, 868–915 MHz
- Bluetooth: 5.0
- Solar panel: 5W
- Interfaces: 1x Grove (IIC/GPIO/UART), USB-C for debugging
- Buttons: Power, Reset, Programmable
- LED indicators: Charging (x2), Solar panel status (x1), Mesh signal (x1), Programmable (x1)
- Power input: USB-C 5V 1A or solar panel 5V 1A
- Operating environment: -40°C ~ +60°C
- Certifications: CE, FCC
- Dimensions: 191.2 x 201.2 x 42.1 mm
Kit contents
- SenseCAP Solar Node P1
- Mounting kit (ball joint, connector, clamp, mounting ring)
- Rod antenna 2 dBi 868–915 MHz x1
- RF cable: RP-SMA male to RF-SMA female (300mm)
- USB-C cable (black)
- User manual
