Wio-WM1302 LoRaWAN Gateway Module (SPI) US915-M – LoRaWAN gateway module, SX1302, SPI interface, US915 - Seeed Studio 114992969
ID: 1200518
zł124.86
Tax included
zł101.51 tax excl.

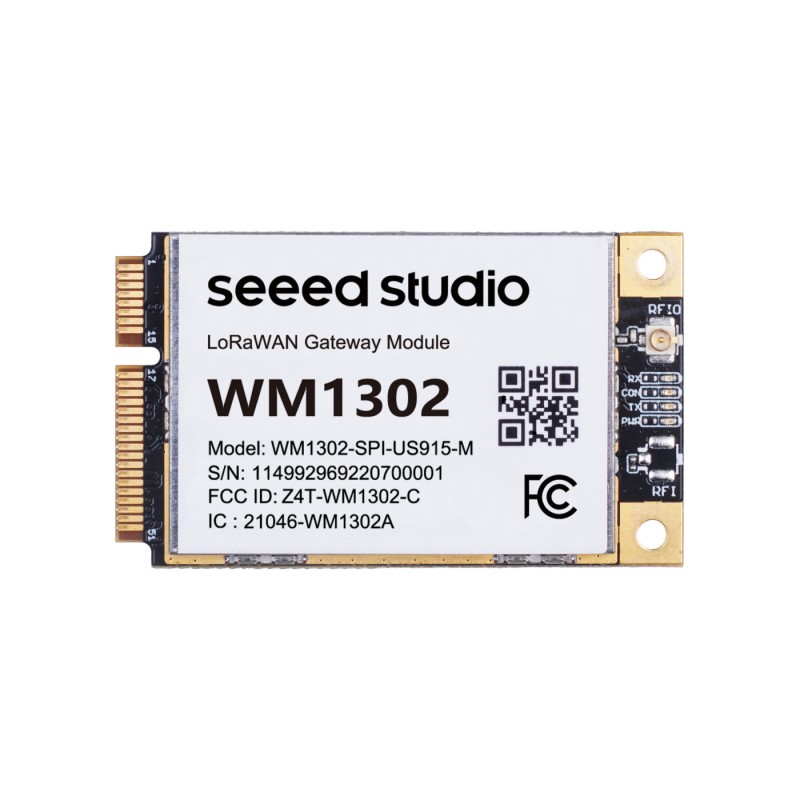

Wio-WM1302 LoRaWAN Gateway Module (SPI) US915-M Seeed Studio 114992969 is a mini-PCIe format module based on the SX1302 chip, designed for building LoRaWAN gateways in the US915 band. Thanks to its low power consumption, high sensitivity, and SPI interface, it is well suited for IoT and M2M applications requiring reliable long-range communication.
Description
The Wio-WM1302 module in the SPI version and US915 band is a new generation of LoRaWAN gateway modules in mini-PCIe format, based on the Semtech® SX1302 baseband chip. It features low power consumption, high sensitivity, and optimized operating temperature, eliminating the need for additional cooling. Thanks to the 52-pin golden finger connector, the module can be easily integrated into LPWAN gateway devices.
It supports reception with sensitivity up to -139 dBm (SF12, 125 kHz) and transmission with power up to 25 dBm at 3.3 V supply. Compared to earlier SX1301 and SX1308 chips, it delivers higher performance and lower power consumption. CE, FCC, and TELEC certifications simplify the certification process of finished devices. The module is intended for use in M2M, IoT, and LPWAN gateways as well as in research projects on long-range communication.
Properties
- Semtech SX1302 baseband chip with SX1250 front-end
- Operating band: US915 (902–928 MHz)
- Sensitivity: up to -139 dBm (SF12, 125 kHz)
- Transmit power: up to 25 dBm (at 3.3 V)
- Interface: SPI (SPI version)
- Power consumption:
- Standby: 7.5 mA
- RX: 40 mA
- TX (maximum power): 415 mA

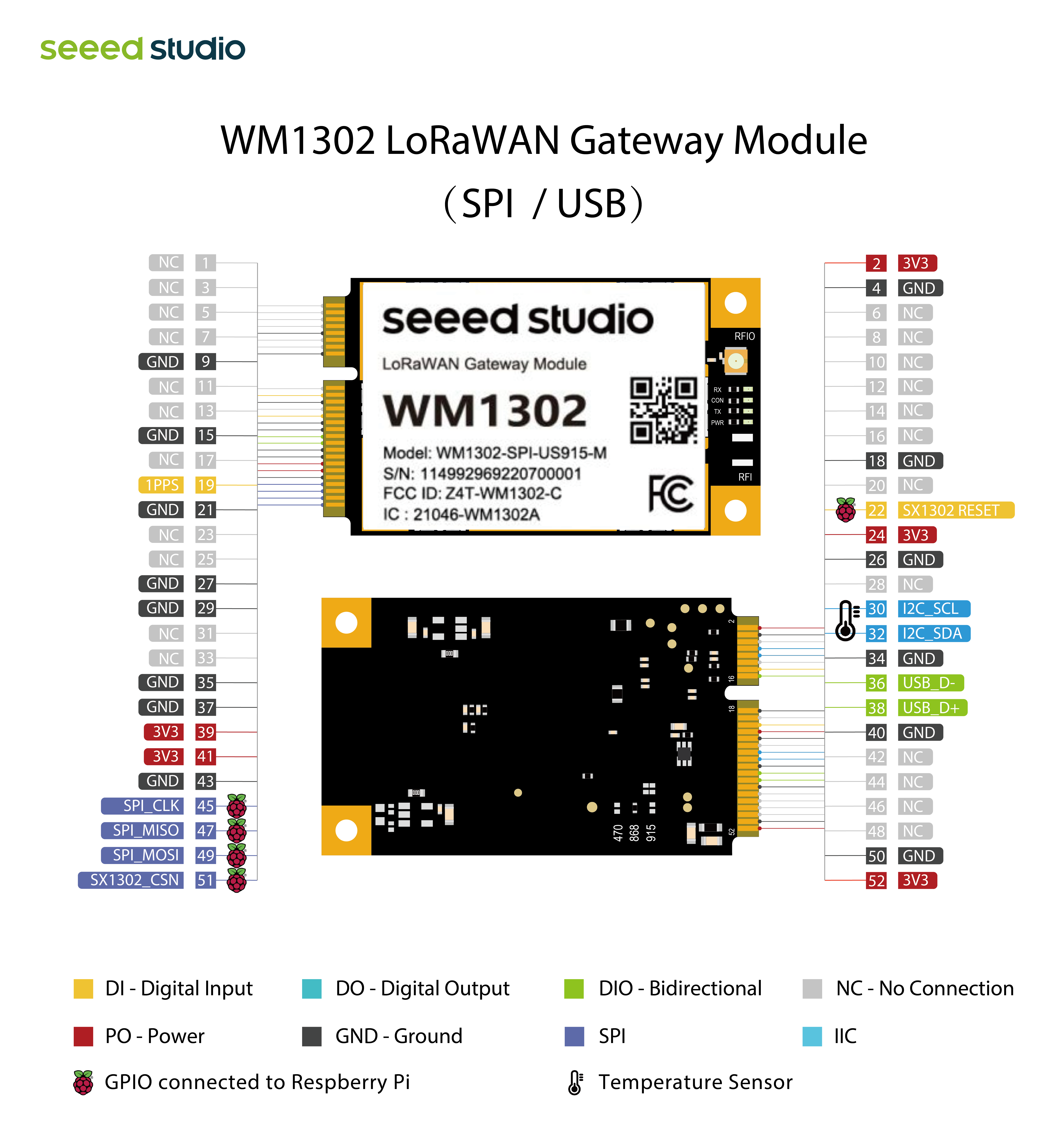

- Format: mini-PCIe, 52-pin golden finger
- Antenna connector: U.FL
- LED indicators: power (green), configuration (red), TX (green), RX (blue)
- Dimensions: 30 × 50.95 mm
- Operating temperature range: -40°C to +85°C
- Certifications: CE (EU868), FCC ID (US915), TELEC (AS923)
