A comprehensive development kit for creating mobile and energy-efficient LoRa® devices with GPS support and environmental sensors. The kit includes a development board with nRF52840 and Semtech LR1110, an Air530 GPS module and a 0.96” OLED display, ready to work with Meshtastic software. With support for Bluetooth 5.3, Zigbee, Thread and four Grove connectors, the kit offers extensive expansion possibilities and full freedom to design independent communication and location systems. Seeed Studio E24070201

4 weeks
On request
Kamami is the official distributor of Seeed Studio modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

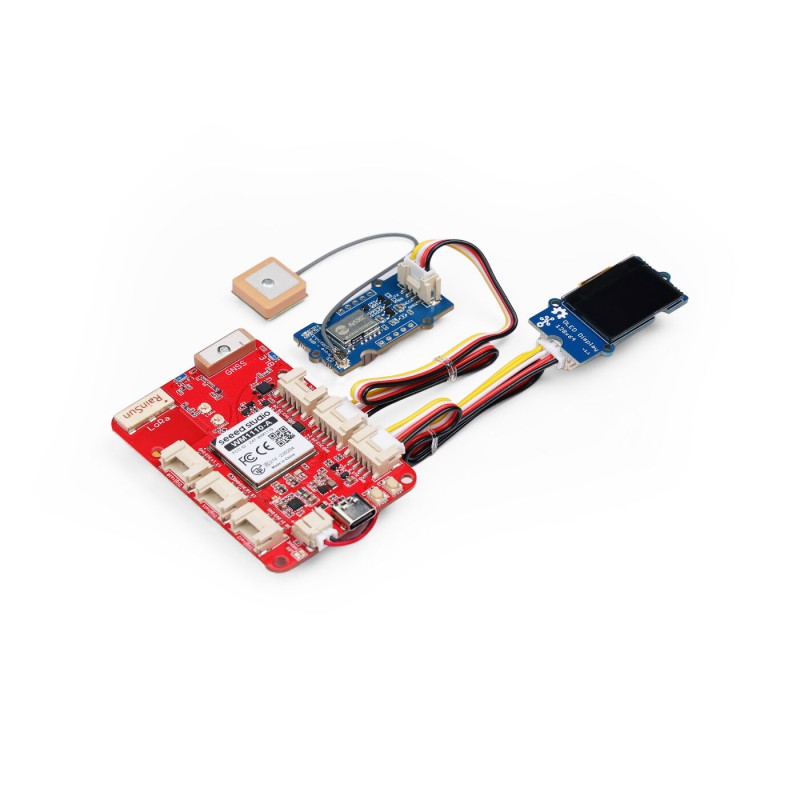

The Wio Tracker 1110 Dev Kit for Meshtastic is a complete, ready-to-use solution for creating energy-efficient tracking devices based on LoRa® and GPS technology. It includes the Wio Tracker 1110 Dev Board (featuring a Nordic nRF52840 chip with Bluetooth LE support and a Semtech LR1110 module for LoRa), a Grove - Air530 GPS module, and a Grove OLED 0.96” display. Thanks to native compatibility with Meshtastic firmware, the kit is ready to operate immediately after connecting and flashing the software. It’s an ideal device for outdoor adventures, asset tracking, or building a decentralized communication network in areas without infrastructure. The kit offers precise real-time positioning with support for multiple GNSS systems (GPS, BeiDou, GLONASS, Galileo, QZSS, SBAS) and includes a temperature and humidity sensor (SHT41) for monitoring environmental conditions.


The integrated OLED display provides clear visualization of data such as battery level, GPS location, signal status, and message history. Additionally, the kit features four Grove connectors for quickly attaching extra modules (e.g. environmental sensors, buttons, screens) without soldering. Thanks to Arduino compatibility, developers have full freedom to create custom features.


The kit supports a wide range of wireless protocols: Bluetooth 5.3, Thread, Zigbee, ANT, Mesh, and more, allowing integration with various types of devices. The included documentation also provides source files for free enclosure designs (for 3D printing or laser cutting). Potential applications include asset tracking, off-grid communication, and environmental monitoring in remote areas. Simply connect the kit, flash the Meshtastic firmware, and start building your independent LoRa mesh network. It’s a unique solution for outdoor enthusiasts, DIY makers, educators, and research teams.

Features

  • Main board: Wio Tracker 1110 (nRF52840 + LR1110)
  • Bluetooth: 5.3, supports LE, Mesh, Zigbee, ANT
  • LoRa: Semtech LR1110, 863–928 MHz, up to 20 dBm output power
  • GNSS: GPS, BeiDou, GLONASS, Galileo, QZSS, SBAS
  • Memory: 1MB Flash + 256KB RAM + 4MB external Flash
  • Ports: USB-C, RF connectors for GPS and LoRa antennas
  • Grove connectors: 4 available (ADC, UART, I2C, digital)
  • Sensors: Temperature and humidity (SHT41), 3-axis accelerometer
  • OLED display 0.96”: 128x64, SSD1308Z, white, 3.3/5V power supply
  • Grove Air530 GPS module: accuracy up to 2.5 m, sensitivity up to -166 dBm, ultra-low power consumption
  • Power supply: 5V via USB-C or 3.7V battery
  • Software: Compatible with Arduino and Meshtastic

Kit contains

  • Wio Tracker 1110 Dev Board (Meshtastic compatible)
  • Grove – OLED Display 0.96”
  • Grove – GPS (Air530)
