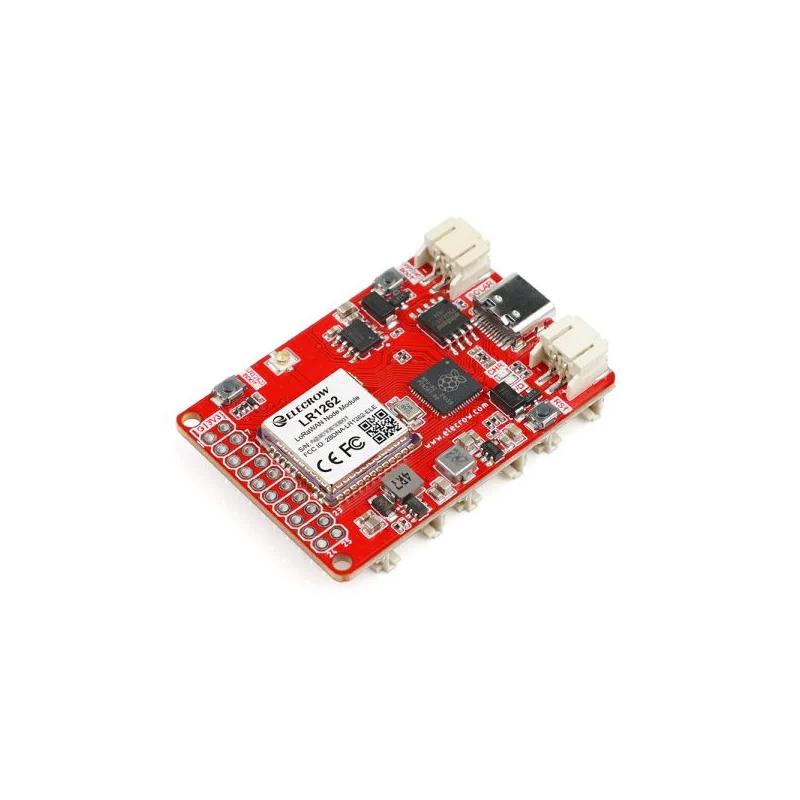

Main view
search
  • Main view
  • Top view
  • Bottom view
ID: 1201688
zł79.91
Tax included

zł64.97 tax excl.

LoRaWAN node module based on the RP2040 chip and the LR1262 radio module, enabling communication in the 868 MHz band. It supports point-to-point (LoRa P2P) transmission and LoRaWAN networks, making it ideal for IoT projects. Equipped with Crowtail connectors, a battery charging interface, and the ability to be powered by a solar panel, it allows for the creation of autonomous and energy-efficient field devices. Compatibility with Arduino and MicroPython facilitates rapid prototyping and application development. Elecrow LR1262 Node Board LoRaWan Node

Delivery date unknown
Out-of-Stock

Description

LR1262 Node is a high-performance LoRaWAN node module designed for long-range communication in the 868 MHz band. The device uses the RP2040 chip as the main controller and the LR1262 module for LoRa signal transmission and reception. With support for both point-to-point communication (LoRa P2P) and LoRaWAN networking, the module is ideal for creating smart sensor nodes in IoT systems. Combined with Crowtail series modules (Ax2, Dx2, IICx1, UARTx1), the LR1262 Node Board enables rapid development of applications such as weather stations, environmental monitoring systems, smart homes, or industrial automation.


Designed for outdoor use, the module includes a lithium battery charging circuit and a solar panel power interface, allowing the creation of autonomous and energy-efficient field devices. With six Crowtail connectors, users can easily connect popular sensors such as temperature and humidity, air quality, light, or PM2.5 dust sensors. Additionally, 20-pin GPIO headers are available for extending functionality with custom components. The board is compatible with Arduino and MicroPython, making it easy to start developing a wide variety of projects. The kit also includes a LoRa antenna and pin headers that can be soldered as needed. Its compact size, low power consumption, and extensive communication options make the LR1262 Node an excellent solution for IoT projects requiring reliable long-range wireless connectivity.

Features

  • Main chip: Raspberry Pi RP2040, 264KB SRAM, 4MB Flash
  • Processor: Dual-Core ARM Cortex-M0+ @ 133MHz
  • Radio module: LR1262, supports 803–930 MHz frequency band
  • Antenna interface: 1st generation IPEX
  • Communication modes: LoRa P2P and LoRaWAN network
  • Compatibility: Arduino, MicroPython

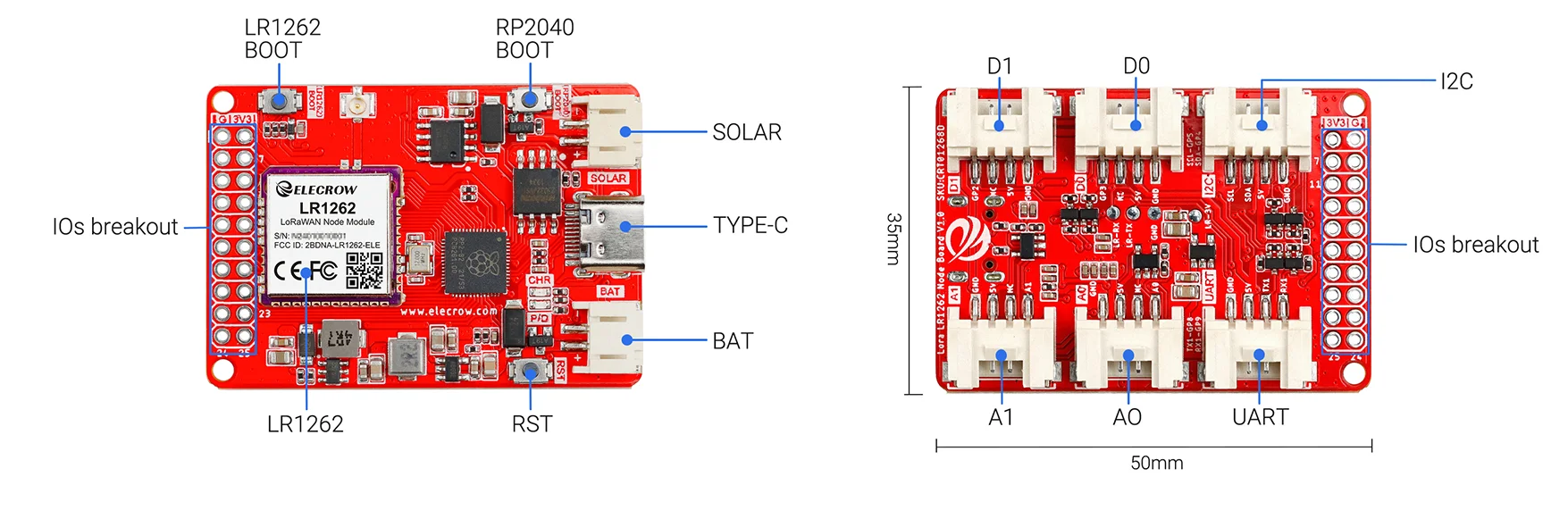

  • Communication interfaces: 1x USB-C, 6x Crowtail connectors (2x analog, 2x digital, 1x UART, 1x IIC)
  • GPIO headers: 2x10 universal pins
  • Power interface: lithium battery, solar panel (5V 1A)
  • Operating power supply: USB 5V / 1A
  • Built-in battery charging and discharging circuit
  • Compatible with over 150 Crowtail modules
  • Easy pin installation with dual headers
  • Dimensions: 35 × 50 mm

Kit contains

  • LR1262 Node Board
  • LoRa Antenna (868MHz/915MHz)
  • Connector set
  • USB-C Cable
