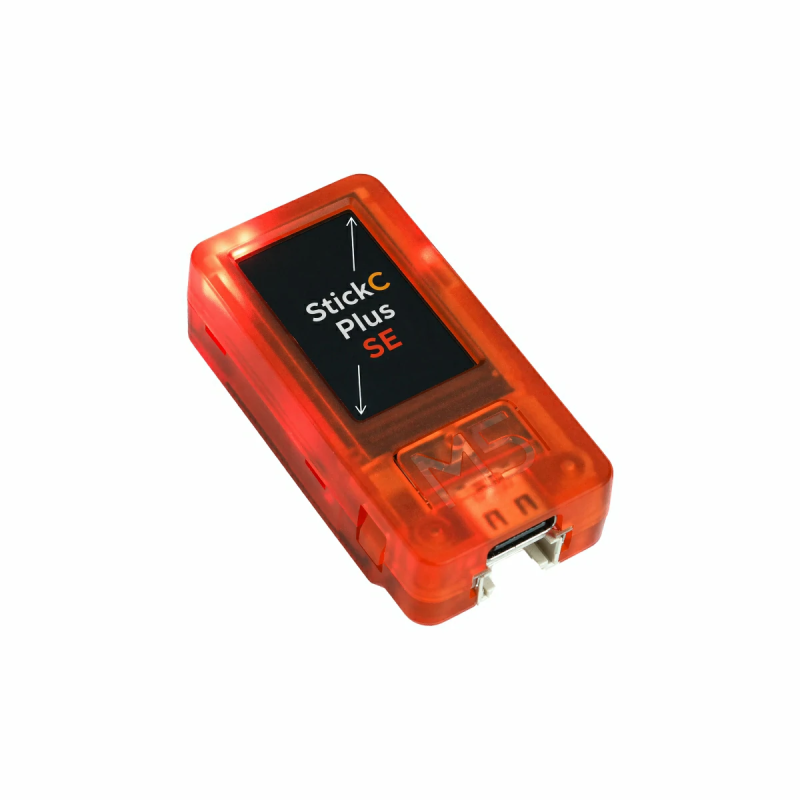

  • Main view
  • Main view (rotated)
  • Top view
  • Bottom view
  • Angled view
  • Front view (connectors)
  • Rear view
  • Side view
  • Side view
ID: 1208845
zł101.30
Tax included

zł82.36 tax excl.

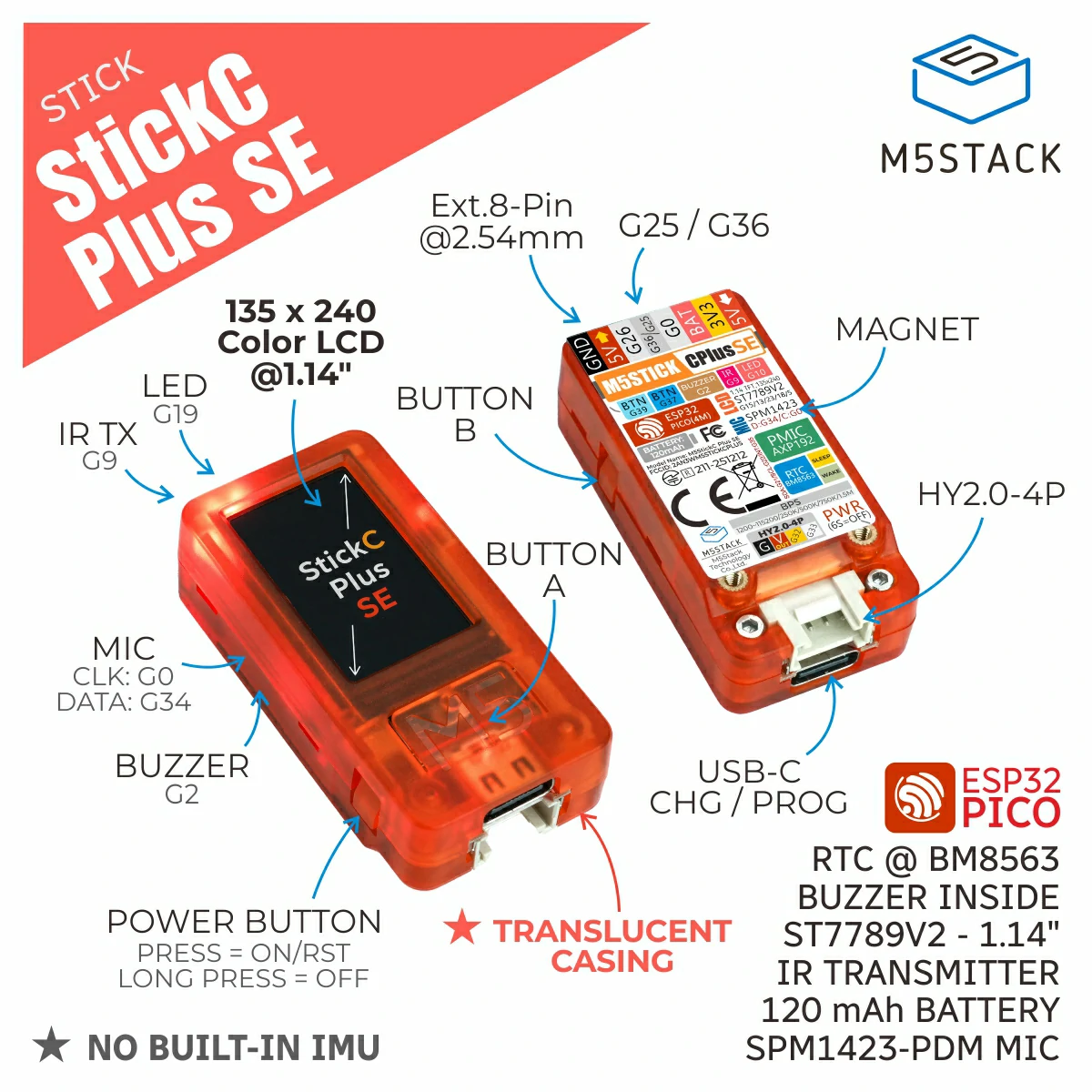

Compact IoT development platform with an ESP32-PICO-D4 module, 1.14" color TFT display, 2.4 GHz WiFi connectivity and a built-in 120 mAh battery. The design integrates an infrared transmitter, microphone, RTC, buzzer, programmable buttons, and HY2.0-4P and Hat-Bus interfaces, making it suitable for compact IoT controllers, wearable devices and simple home automation terminals. M5Stack K016-P-SE

24h
Available
Available quantity: 10

Description

The miniature development kit uses an ESP32-PICO-D4 with a dual-core 32-bit Xtensa LX6 processor clocked at up to 240 MHz, 4 MB of Flash memory and 520 KB of SRAM. The design integrates a 1.14" color TFT LCD with a resolution of 135 x 240 px and a built-in 3.7 V, 120 mAh lithium battery.

2.4 GHz WiFi connectivity - the ESP32-PICO-D4 provides wireless communication using a built-in 3D antenna, enabling the development of IoT controllers, network terminals and smart home devices.

1.14" TFT LCD - the 135 x 240 px display with an ST7789v2 controller enables the presentation of parameters, messages and simple graphical user interfaces.

IR transmitter, microphone, RTC and buzzer - the integrated components extend the board's capabilities with infrared transmission, audio recording, timekeeping and sound signal generation. Two programmable buttons and a red LED can be used for application control and status indication.

HY2.0-4P and Hat-Bus connectors - the HY2.0-4P interface and 8-pin Hat-Bus connector with a 2.54 mm pitch enable the connection of Unit and Hat expansion modules and provide access to GPIO lines for prototyping projects.


The transparent orange enclosure measuring 48 x 24 x 8.4 mm features a magnetic back, making it easier to attach the device to metal surfaces, while the weight of 17 g supports use in compact portable devices. Support for UiFlow1, UiFlow2, Arduino IDE, ESP-IDF and PlatformIO provides several software development options, while the available manufacturer's Wiki documentation contains information about the hardware, interfaces and getting started with the module.

Features

  • Processor and memory
    • ESP32-PICO-D4 module
    • Dual-core 32-bit Xtensa LX6 processor
    • Clock frequency up to 240 MHz
    • 4 MB Flash memory
    • 520 KB SRAM
  • Connectivity
    • 2.4 GHz WiFi
    • Built-in 2.4 GHz 3D antenna
    • Infrared transmitter
  • Display and user interface
    • 1.14" color TFT LCD
    • Resolution 135 x 240 px
    • ST7789v2 controller
    • 2 x programmable button
    • 1 x red LED
    • Passive buzzer
    • SPM1423 microphone
    • BM8563 RTC
  • Power supply
    • Input voltage 5 V / 500 mA
    • Built-in 3.7 V lithium battery
    • Battery capacity 120 mAh
    • AXP192 power management IC
    • Charging and programming via USB-C
  • Expansion interfaces
    • 1 x HY2.0-4P
    • 8-pin Hat-Bus, 2.54 mm pitch
    • G32 and G33 lines on the HY2.0-4P connector
    • G26, G36 and G0 lines on Hat-Bus
    • Support for Hat and Unit expansions
  • Software
    • UiFlow1
    • UiFlow2
    • Arduino IDE
    • ESP-IDF
    • PlatformIO
  • Design
    • Transparent orange enclosure
    • Magnetic back
    • No built-in IMU
    • Dimensions 48 x 24 x 8.4 mm
    • Weight 17 g
    • Operating temperature from 0°C to 60°C
1208845

Data sheet

Microcontroller
ESP32-PICO-D4
Flash memory
4 MB
Number of I/O
Other
Ethernet
none
WiFi/BT module
Yes
Bluetooth module
Yes
MicroSD slot
No
Length
48mm
Width
24mm
USB connector type
USB type C
