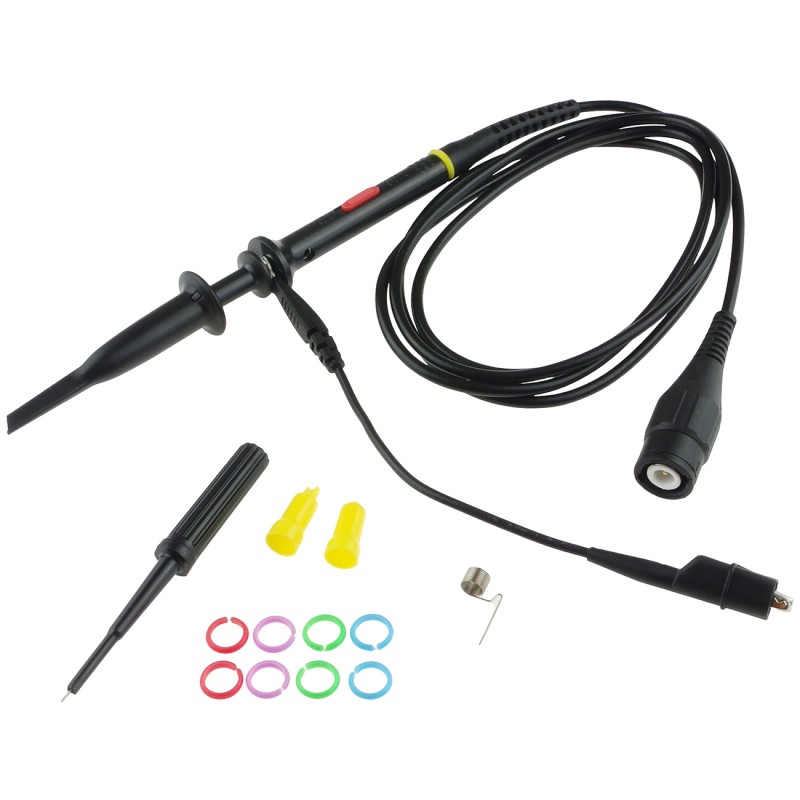

Hantek PP-150B measurement probe 100MHz 600V
ID: 1190007
5906623486496
zł29.00
Tax included
zł23.58 tax excl.
Professional oscilloscope probe, ideal for precise signal measurements. Hantek PP-150B
Description
The Hantek PP-150B is a passive voltage probe designed for precise measurements using digital and analog oscilloscopes. The probe features an ergonomic, portable design, and its housing is made using injection molding technology, which provides greater durability and flexibility during use. The Hantek PP-150B offers a choice of 1× or 10× attenuation, which allows for adjustment to various measurement ranges. The product meets European safety standards, having a CE certificate. It is compatible with a wide range of oscilloscopes in the medium and low frequency range, making it an ideal choice for both professional and amateur use.
Features
- Damping Factor: 1× and 10×
- Input Resistance: 1MΩ (at 1×), 10MΩ (at 10×)
- Input Capacitance: 85pF-115pF (at 1×), 18.5pF-22.5pF (at 10×)
- Bandwidth: DC-6MHz (at 1×), DC-100MHz (at 10×)
- Input Voltage: <200V DC + peak AC (at 1×), <600V DC + peak AC (at 10×)
- Cable Length: 120 cm
- Temperature Range: Operation: -10℃ to +50℃, Storage: -20℃ to +75℃
- Humidity: ≤85% (relative humidity)
- Weight: 55g
