ID: 1204926
zł5,338.20
Tax included

zł4,340.00 tax excl.

Rogowski current probe designed for measuring very high-amplitude alternating currents up to 3000 A, offering a wide bandwidth from 4 Hz to 10 MHz and a sensitivity of 2 mV/A. Its near-zero impedance enables accurate measurements without affecting the circuit being tested, which is useful in analyzing fast waveforms and power systems (MOSFETs, IGBTs, SiC, GaN). Micsig RCP3000L-700

4 weeks
On request
Kamami is the official distributor of Micsig oscilloscopes and accessories. All products of this brand in our offer are original and come directly from the manufacturer.

Description

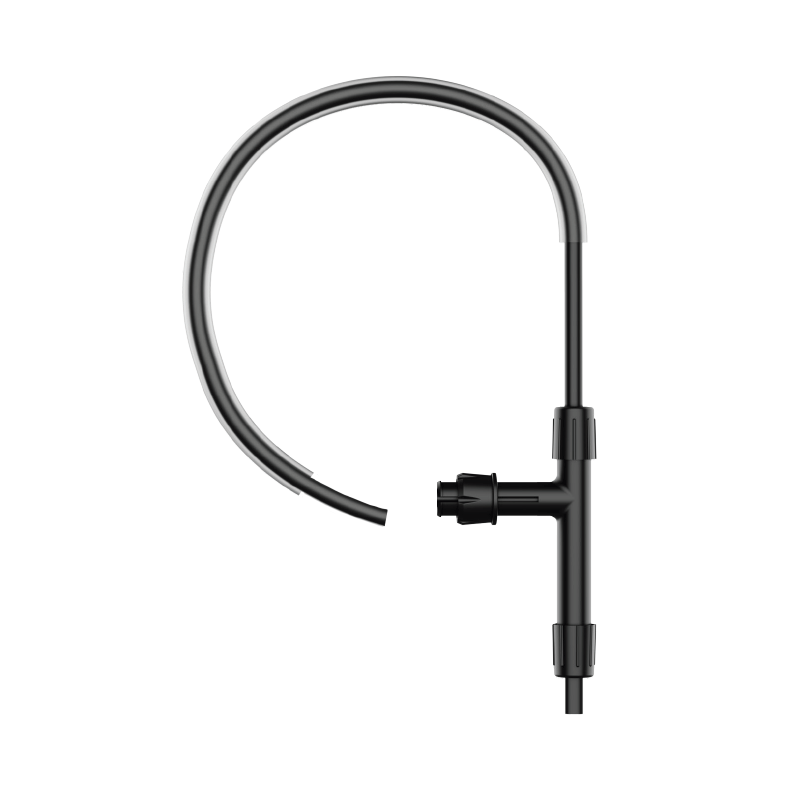

Micsig RCP3000L-700 is a Rogowski current probe designed for precise measurement of high-amplitude AC currents reaching up to 3000 A. Thanks to Rogowski coil technology, the probe features near-zero insertion impedance, allowing measurements without affecting the tested circuit. This is particularly important in applications requiring high accuracy and minimal interference. The device offers a wide bandwidth of up to 10 MHz, enabling analysis of fast-changing signals and high-frequency waveforms. As a result, it is well suited for measuring currents in power transistors such as MOSFET, IGBT, SiC, and GaN, where capturing dynamic changes and high-order harmonics is essential.

The flexible coil design allows easy adaptation to hard-to-reach areas and measurements in systems with complex geometries. The compact cross-section of the coil enables operation even in very tight spaces, for example between semiconductor leads. The probe is equipped with a standard BNC connector, ensuring full compatibility with most oscilloscopes available on the market. With high voltage insulation up to 10 kV, it can be safely used in high-voltage applications.

Features

  • Probe type: Rogowski (AC current measurement)
  • Maximum current: 3000 A (peak)
  • Bandwidth: 4 Hz to 10 MHz
  • Sensitivity: 2 mV/A (500X)
  • Slew rate: 70 kA/μs
  • Accuracy: 2%
  • Voltage insulation: up to 10 kV (peak, for the coil)
  • Output impedance: 1 MΩ
  • Near-zero insertion impedance
  • Interface: standard BNC connector
  • Construction: flexible Rogowski coil
  • Application: measurement of high-frequency, pulsed, and transient currents
  • Use cases: motor drives, UPS/SMPS systems, MOSFET/IGBT (SiC, GaN) testing, harmonic analysis, three-phase systems
  • Diameter: 8 mm
  • Coil length: 700 mm
  • Cable length: 1.5 m
  • Power supply: DC 12 V
