Ethernet GPIO module by Numato Lab equipped with 32 GPIO lines compatible with 3.3 V TTL levels and 11 analog inputs with 10-bit resolution, designed for remote control and monitoring of external devices over Ethernet using web interface, TELNET, and HTTP commands. Numato Lab NLETHGC032-HW

3 weeks
On request
Kamami is the official distributor of Numato Lab modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

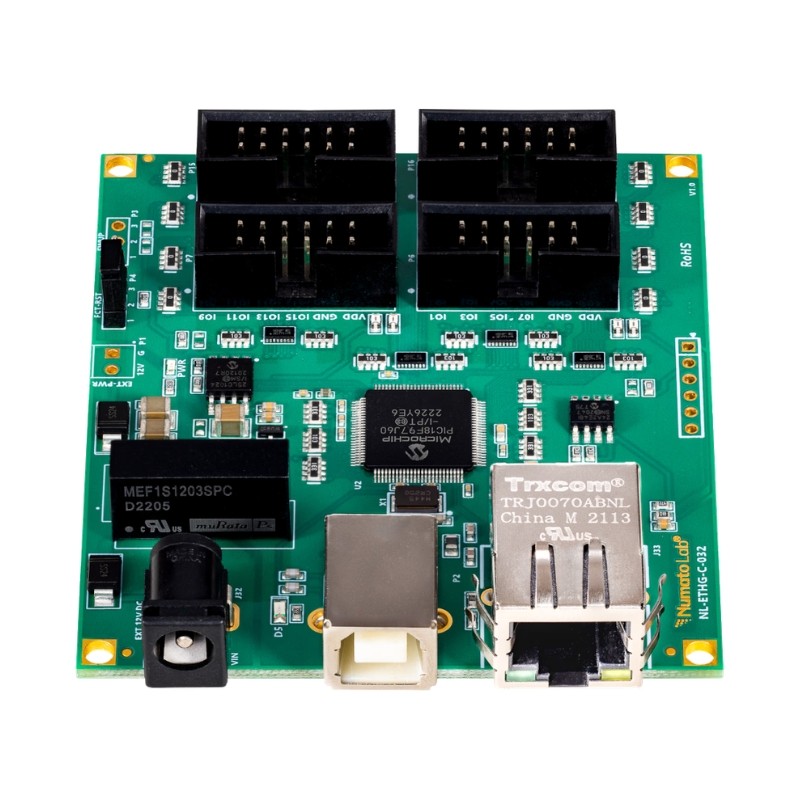

The Numato Lab NLETHGC032-HW is designed for expanding automation systems, control applications, and embedded projects with additional input and output lines operated over an Ethernet network. The module is equipped with 32 GPIO lines compatible with 3.3 V TTL levels, each individually configurable as a digital input or output. The design also supports 11 analog inputs multiplexed with GPIO lines, enabling analog signal measurement with 10-bit resolution.


The module can be controlled through a web browser, TELNET, HTTP commands, or custom user applications. Support for text-based commands enables compatibility with terminal applications such as PuTTY and TeraTerm, while readall/writeall functions allow simultaneous reading or updating of all GPIO states using a single command. The module features soldered goldpin headers for convenient peripheral connections and integration with industrial computers, Raspberry Pi, BeagleBone, and other embedded platforms.

Features

  • 32 GPIO lines compatible with 3.3 V TTL
  • 11 analog inputs multiplexed with GPIO
  • Analog input resolution: 10-bit
  • Individual GPIO configuration as input or output
  • Ethernet communication interface
  • Control via web interface, TELNET, and HTTP
  • Support for custom control applications
  • readall/writeall functions
  • Soldered goldpin headers
  • Compatible with PuTTY and TeraTerm
  • Operating temperature range: -30°C to +85°C
  • Suitable for automation, embedded systems, and test fixtures
  • Compatible with Raspberry Pi and BeagleBone
  • Manufacturer: Numato Lab
  • Manufacturer code: NLETHGC032-HW
