Schematic diagram of the Pololu RC Switch with Isolated Solid State Relay/Switch, SPST.
search
  • Schematic diagram of the Pololu RC Switch with Isolated Solid State Relay/Switch, SPST.
  • Schematic diagram of the Pololu RC Switch with Isolated Solid State Relay/Switch, SPST.
  • Schematic diagram of the Pololu RC Switch with Isolated Solid State Relay/Switch, SPST.
ID: 1199638
zł45.81
Tax included

zł37.24 tax excl.

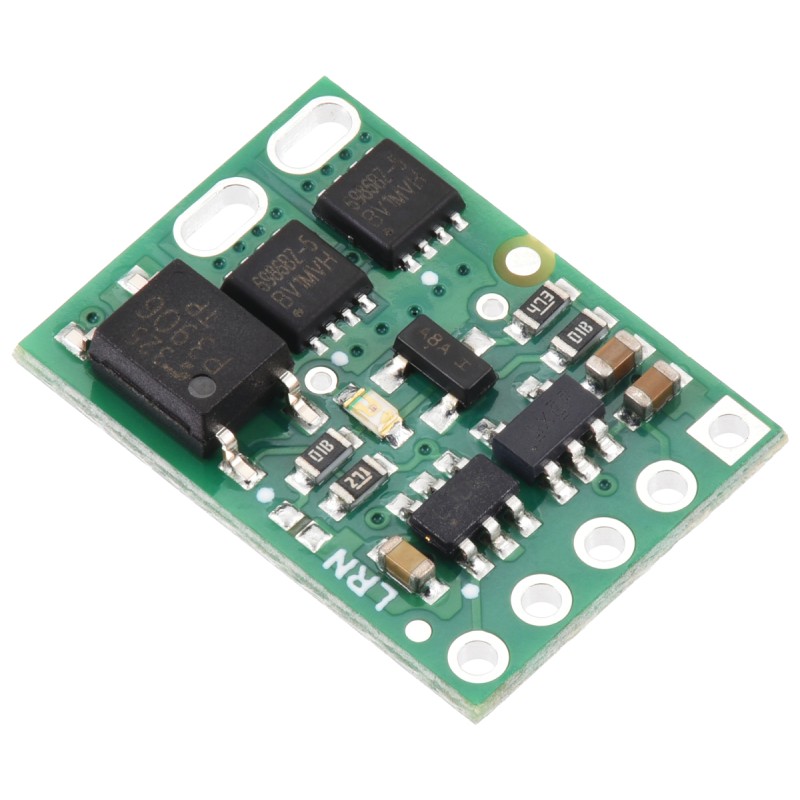

The Pololu 5423 module provides reliable load control in RC systems with full galvanic isolation. The SPST solid-state relay supports up to 6 A at voltages up to 60 V and is suitable for applications requiring silent operation, durability, and precise control using RC signals. The version without soldered connectors offers flexibility for adaptation to individual projects.

6 weeks
Awaiting delivery
Kamami is the official distributor of electronic modules and Pololu robotic parts. All products of this brand in our offer are original and come directly from the manufacturer.

Description

The Pololu 5423 module is an RC version of a SPST solid-state relay without soldered connectors. It enables control of bidirectional loads with full galvanic isolation in RC systems powered with 2.7–16 V. The device offers a configurable activation threshold and operating direction, while the safe-start feature reduces the risk of accidental load switching at startup. The relay supports up to 6 A at voltages up to 60 V (maximum value).

Control is based on RC pulse width, with the possibility of programming the threshold value and operating direction through learning mode. The symmetrical MOSFET configuration allows operation in high-side or low-side mode, and thanks to the absence of mechanical parts, the device features silent operation and increased durability.

Properties

  • Control circuit supply voltage: 2.7–16 V
  • Maximum current consumption of the system: 15 mA
  • Load voltage range: up to 60 V (max.)
  • Maximum load current: 6 A
  • On-state resistance: 30 mΩ (typical)
  • Galvanic isolation of control from load (optical isolation)
  • SPST solid-state relay with back-to-back MOSFETs
  • Configurable switching direction and activation threshold
  • OUT output – relay status indication
  • GOOD output – RC signal validity indication
  • Connectors for self-assembly (no soldered elements)
  • Dimensions: 0.7″ × 0.5″ × 0.5″ (~17.8 mm × 12.7 mm × 12.7 mm)
  • Weight: 1.6 g
1199638

Data sheet

Output current
6A
Number of channels
1
Executive element
SSR
Coil voltage
Nie dotyczy
