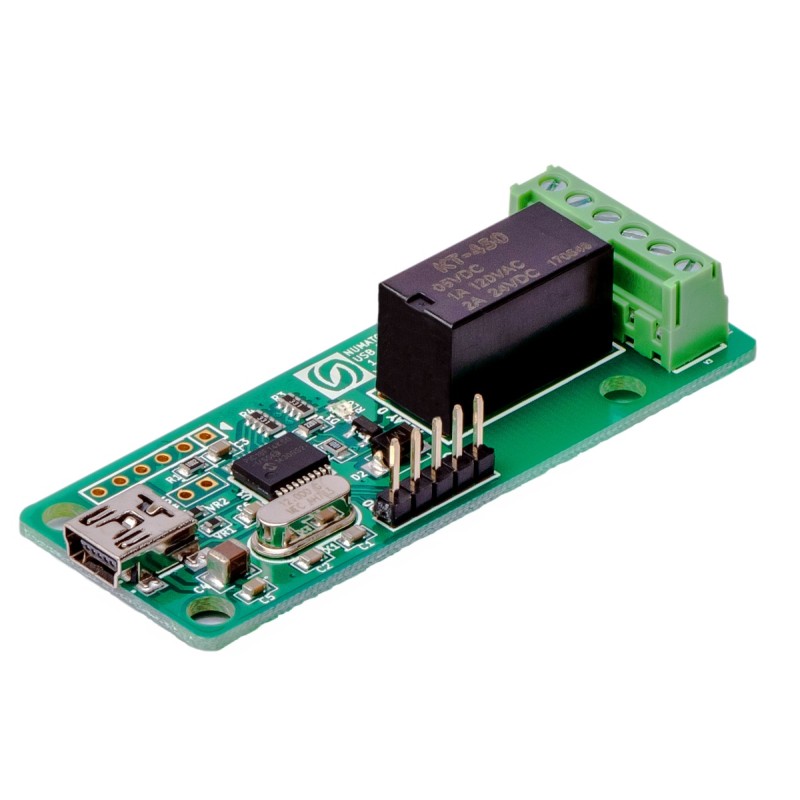

Numato Lab USBPOWRL002EN - 1 Channel USB Powered Relay Module
ID: 1186914
5902186318809
zł84.12
Tax included
zł68.39 tax excl.
Numato Lab's 1-Channel USB Relay Module is an easy-to-use, flexible and versatile device, ideal for remote control of devices, home automation, prototyping and DIY projects, offering a 5V DPDT relay, GPIO, analog inputs and compatibility with multiple operating systems and serial console applications
Description
Numato Lab's 1-channel USB-powered relay module is the perfect solution for projects requiring device control via simple commands via USB. Thanks to the built-in firmware, the module allows you to easily control the relay and read its status without the need for advanced knowledge of USB protocols. It is the perfect choice for those looking for a simple and reliable way to integrate relay control into their projects.
This module can be powered directly from the USB bus or from an external power supply, providing flexibility in a variety of applications. Thanks to compatibility with popular serial console applications such as HyperTerminal or Putty, controlling the module is extremely simple.
Application
- Device Control: Perfect for remote control of electrical and electronic devices via USB
- Home Automation: Simple integration with home automation systems
- Prototyping: Quickly and easily prototype projects using relays
- DIY Projects: Perfect for hobbyists and DIY designers looking for an easy way to control devices from a computer
Features
- Relay: 1 built-in DPDT 5V DC relay
- Maximum Switching Current: 2A
- GPIO: 4 pins TTL compatible
- Analog Channels: 4 input channels (multiplexed with GPIO) with 10-bit resolution
- USB Interface: CDC support, works as a serial port
- Terminals: Relay contacts available on easily accessible screw terminals
- Power supply: Possibility of powering from USB or an external power supply
- Control: Controllable via standard serial console applications or custom applications
- Operating Systems: Windows XP, Windows 7, Windows 8/8.1, Windows 10, Linux, Mac OS X, Android
1186914
Data sheet
- Output current
- 2A
- Number of channels
- 1
- Executive element
- Time relay
- Coil voltage
- Nie dotyczy
