GNSS add on Module - Quectel L76K GNSS module for XIAO
search
  • GNSS add on Module - Quectel L76K GNSS module for XIAO
  • GNSS add on Module - Quectel L76K GNSS module for XIAO
ID: 1195711
5906623496334
zł66.86
Tax included

zł54.36 tax excl.

Compact and energy-efficient GNSS module that supports GPS, BeiDou, GLONASS and QZSS systems, offering precise positioning in applications such as robotics and asset tracking. With a built-in low-noise amplifier (LNA), acoustic filter (SAW) and support for 32 tracking channels, the module provides high sensitivity, low power consumption and fast localization, and allows easy integration with Seeed Studio XIAO boards. Seeed Studio 109100021

24h
Available
Available quantity: 8
Kamami is the official distributor of Seeed Studio modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

The advanced GNSS module offers global tracking support for GPS, BeiDou, GLONASS, and QZSS systems. Designed specifically for Seeed Studio XIAO development boards, the module features a compact size and low power consumption, making it an ideal solution for applications such as asset tracking and robotics. With a built-in Low Noise Amplifier (LNA) and Surface Acoustic Wave (SAW) filter, it provides high sensitivity and better noise reduction, allowing for quick and accurate positioning. It supports 32 tracking channels and 72 signal acquisition channels, offering excellent energy efficiency.

The module can be used with all Seeed Studio XIAO boards, offering versatile support for various satellite systems, ensuring flexibility and precision in different applications. With AGNSS functionality, the module guarantees fast position determination in challenging conditions. Additionally, there is a place for soldering an LED diode, which allows for visual control of the GPS connection status, facilitating diagnostics and improving user comfort.

Features

  • Supports multiple GNSS systems: GPS L1 C/A, GLONASS L1, BeiDou B1, QZSS
  • 32 tracking channels, 72 signal acquisition channels, position accuracy up to 2.0m CEP
  • Power consumption up to 41mA during tracking and signal acquisition, 360µA in standby mode
  • Built-in Low Noise Amplifier (LNA) and SAW filter
  • Excellent sensitivity: -162dBm during tracking and -160dBm during signal reacquisition
  • Built-in active antenna
  • Maximum update rate of 5Hz, default 1Hz
  • NMEA 0183 and CASIC protocols
  • Place to solder the LED
  • Fully compatible with Seeed Studio XIAO development boards
  • Dimensions: 18 x 21 mm

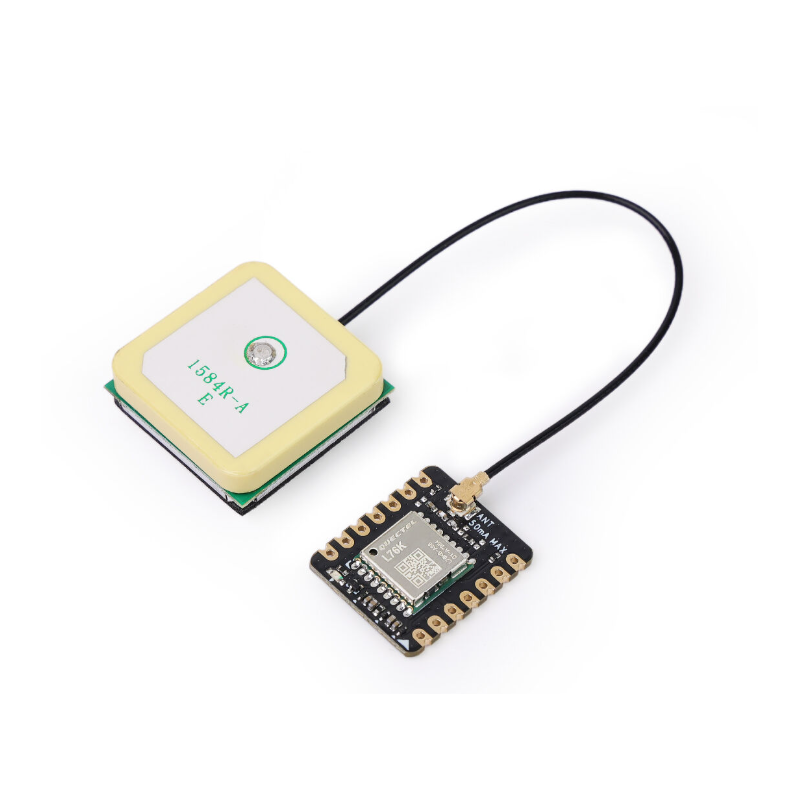

Kit contains

  • L76K GNSS Module
  • Active antenna with iPEX connector
  • 2 x 7-pin female header 2.54mm
