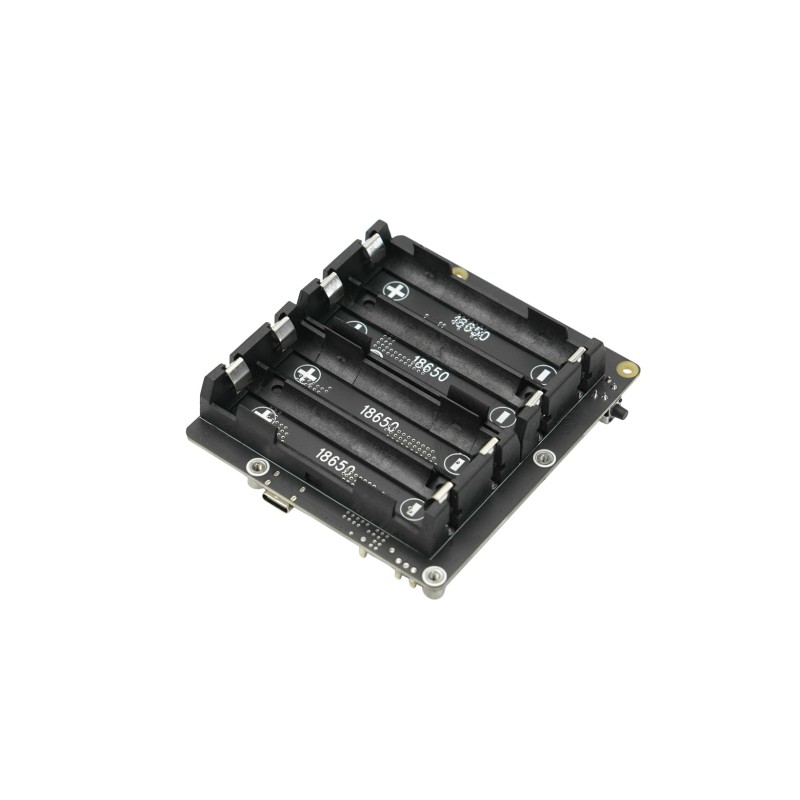

Main view
search
  • Main view
  • Top view
  • Bottom view
ID: 1196968
5902186311541
zł285.58
Tax included

zł232.18 tax excl.

UPS module that ensures uninterrupted operation of Raspberry Pi 5 by automatically switching between external and battery power. With fast charging function, power failure detection and the ability to control the system via software, it is an ideal choice for mobile applications such as smart vehicles or monitoring systems. Its design allows for easy integration with Raspberry Pi 5 without interfering with other HATs, and built-in LED indicators provide a convenient view of the working status and charge level. DFRobot FIT0992

4 weeks
Awaiting delivery
Kamami is the official distributor of DFRobot modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.

Description

The UPS for Raspberry Pi 5 module is a reliable and intelligent power solution that ensures continuous operation even in the event of a power failure. With automatic switching between external and battery power, it is ideal for projects that require energy independence. It allows for mobile power for the Raspberry Pi 5, making it an excellent choice for applications such as smart vehicles, surveillance systems, outdoor projects, and other field applications.


The device is equipped with an advanced power management system that automatically disconnects the power after shutting down the Raspberry Pi, extending battery life. It also supports fast charging and detects power outages. The system can be fully controlled via software, including setting a voltage threshold for safe system shutdown. With the use of pogo pin connectors and a thoughtful design, mounting on the bottom of the Raspberry Pi allows for the simultaneous use of other HATs. Built-in LED indicators provide a quick view of the operational status and battery charge level. This is a comprehensive solution for users seeking stable and intelligent power for their Raspberry Pi 5.

Features

  • Compatibility: Raspberry Pi 5
  • Connection: pogo pins (no additional wiring required)
  • Continuous operation up to 10 hours
  • Maximum output: 5V ±5%, 5A (5.1V 5000mA)
  • Integrated MOSFET minimizing energy losses
  • High-efficiency DC-DC converter (up to 95%)
  • Wide input voltage range: 6V to 18V
  • Automatic switching between the power supply and emergency power
  • Power path management to avoid frequent charging/discharging of the battery
  • Supports fast charging: 2.3 to 3.2A
  • Overcharge, overvoltage, and reverse connection protection
  • Built-in fuel gauge system
  • LED battery level indicators
  • Automatic safe shutdown at low voltage (programmable)
  • Holder for 4 x 18650 batteries
  • DC power connector: 5.5x2.1mm
  • Battery holder for 4 x 18650 cells
  • 5V power outputs: 2 x XH2.54 2-pin
  • USB-A power ports: 2 x USB2.0
  • Power button connector: XH2.54-2P
  • Battery charging voltage: 4.23V
  • Recharge threshold: 4.1V
  • Dimensions: 97.4 × 85mm

Kit contains

  • UPS module for Raspberry Pi 5
  • Mounting screw set
