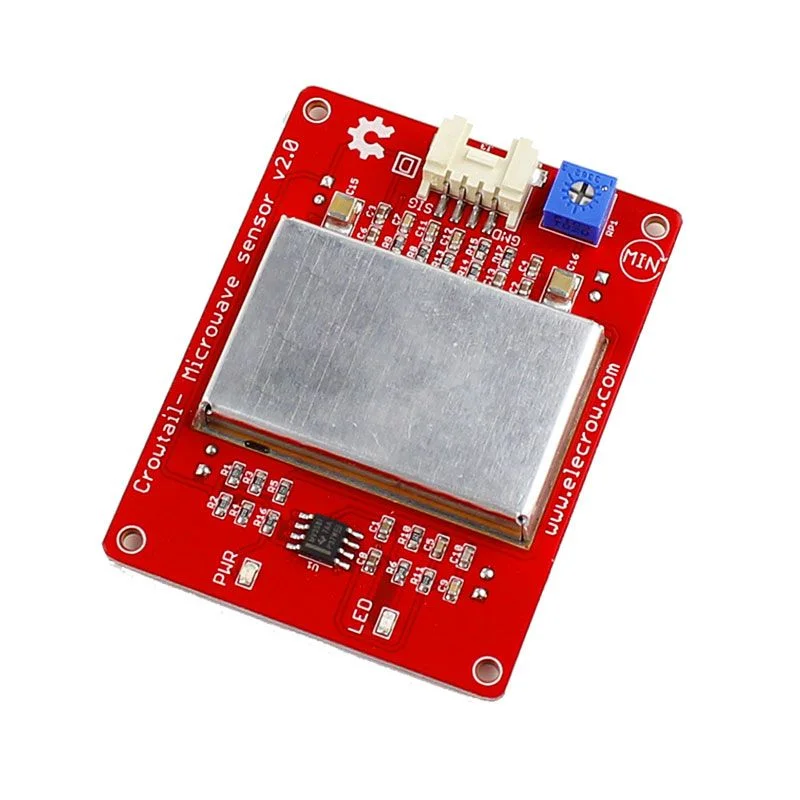

Crowtail-Microwave Sensor 2.0 – digital microwave motion sensor, Doppler, 4 m, 5 V, 10.525 GHz
ID: 1201699
5902186332058
zł31.00
Tax included
zł25.20 tax excl.
Crowtail-Microwave Sensor 2.0 is a motion sensor module based on the Doppler effect, designed for integration with Arduino and Crowduino platforms. Thanks to its resistance to environmental factors, it is suitable for industrial automation, security systems and smart installations.
Description
The Crowtail-Microwave Sensor 2.0 module uses the Doppler radar principle for motion detection. Intended for automation applications such as automatic door control systems, security systems, ATM recording controllers or railway signaling. The sensor operates without contact and is resistant to environmental factors such as temperature, humidity, dust, noise and lighting, making it suitable for harsh conditions. The updated 2.0 version is fully compatible with the Crowtail system and Arduino-compatible boards, enabling fast prototyping and integration in electronic projects.
Properties
- Crowtail interface
- Operating voltage: 5 V ± 5%
- Operating current: < 30 mA
- Center frequency: 10.525 GHz
- Frequency setting accuracy: 3 MHz
- Detection range: up to 4 m
- Power emission (min.): 13 dBm EIRP
- Harmonic emission: < -10 dBm
- High RF interference resistance
- Low emission – safe for humans
- Operation independent of environmental conditions
- Dimensions: 63.0 × 48.5 × 8.0 mm
Included
- Crowtail – Microwave Sensor
- Crowtail cable
1201699
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
