PMW3901 Optical Flow Sensor - module with an optical motion sensor
ID: 587092
606034879270
zł137.53
Tax included
zł111.81 tax excl.
Module with an optical flow sensor PMW3901. It uses a low resolution camera to detect surface movement. It communicates via the SPI interface. Pimoroni PIM453
Description
Module with an optical flow sensor PMW3901. It uses a low-resolution camera and dedicated algorithms to detect surface movement. The module communicates via the I2C interface and is supplied with the voltage from 2 to 6 V. It is an ideal solution for correcting the drone's drift by looking for the ground movement in the x/y axis. Documentation with a library and examples in Python is available in the GitHub repository.
Features
- Two white LEDs for lighting
- Speed: 121 FPS (Frames Per Second)
- Speed: 7.4 rad / s (radians per second)
- Field of view: 42 °
- Range: 80 mm to infinity
- Reverse polarity protection
- Compatible with all Raspberry Pi and Arduino models
- Supply voltage: 2 to 6 V
- SPI interface
- Dimensions: 24 x 24 x 5 mm
Kit contains
- PMW3901 Optical Flow Sensor Breakout module
- Straight male connector 1x5
- Angle female connector 1x5
587092
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
You might also like
Arduino Uno Rev3 is a popular board with Atmel ATmega328 microcontroller from the AVR family, there are 14 I / O lines, 6 PWM channels and 6 analog inputs. The additional ATmega16U4 microcontroller realizes communication via the USB interface. Arduino A000066
Regular pricezł109.90zł93.90 24hAvailable quantity: 9 AvailableThe latest version of the Raspberry Pi series: Raspberry Pi 4 model B with quad-core SoC (Broadcom BCM2711, Cortex-A72) working at 1.5GHz, 2GB RAM LPDDR4, Broadcom VideoCore VI.
zł220.99 Delivery date unknown No product available!
The long-awaited Raspberry Pi 4 model B with the SoC Broadcom BCM2711 SoC (4 x Cortex-A72) running at 1.5GHz, 4 GB LPDDR4 RAM and the Broadcom VideoCore VI graphics chip
zł277.00 24hAvailable quantity: 166 AvailableThe long-awaited Raspberry Pi 4 model B with the SoC Broadcom BCM2711 SoC (4 x Cortex-A72) running at 1.5GHz, 8 GB LPDDR4 RAM and the Broadcom VideoCore VI graphics chip
zł362.90 24hAvailable quantity: 12 AvailableModule with pressure, temperature and humidity sensor BME280. It allows to read the atmospheric pressure in the range from 300 to 1100 hPa and communicates via the I2C interface. Pimoroni PIM472
zł75.60 Delivery date unknown No product available!
Expander with two I2C connectors and one SPI for Raspberry Pi Pico. It has sockets compatible with Pimoroni Breakout modules. Pimoroni PIM547
zł45.26 24hAvailable quantity: 1 Available
Other products in the same category (16)
Module with PIR sensor HC-SR501. It can detect movement up to 7 meters with a detection angle of 120 degrees
zł12.24 24hAvailable quantity: 9 AvailablePmod PIR is a module with a PIR motion sensor (EKMC1601111), which allows you to detect motion up to 5 meters from the module. The sensor during operation is characterized by low power consumption. Digilent 410-389

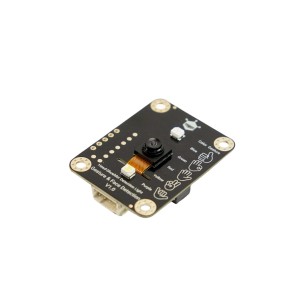

zł98.68 24hAvailable quantity: 3 AvailableA modern module that enables gesture control and detects the presence of people, ensuring privacy and fast offline interactions. Equipped with a camera and an AI processor, the sensor recognizes 5 hand gestures and detects up to 10 faces within a range of 3 meters, supporting I2C and UART communication, making it an ideal solution for IoT, smart homes and touchless systems. DFRobot SEN0626
