New products
zł58.83 tax excl.

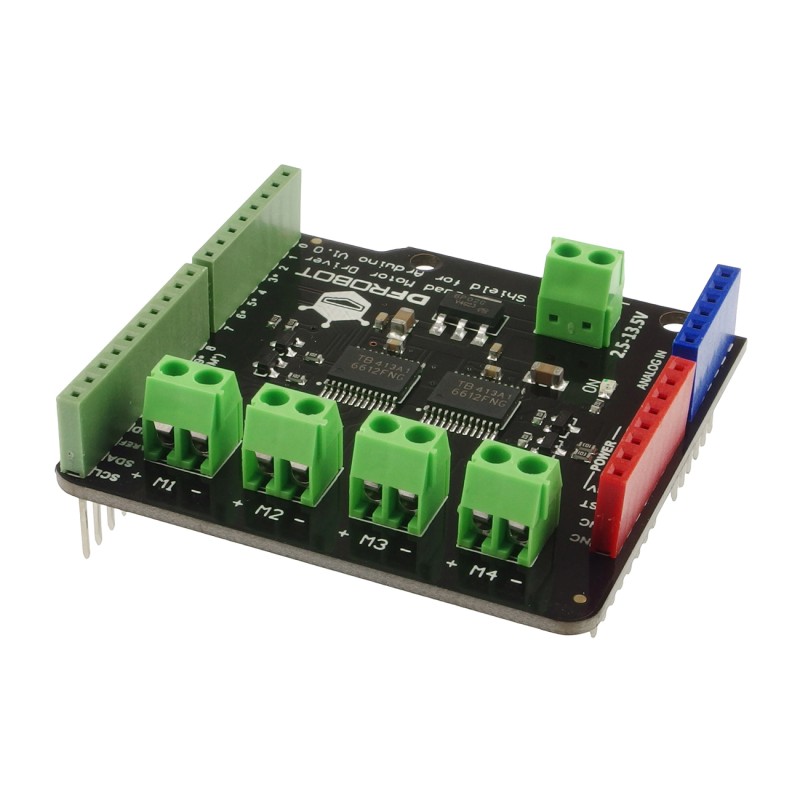

Quad DC Motor Driver Shield is an Arduino compatible DC motor driver that allows you to control 4 DC motors with a voltage between 2.5 ... 13.5V and up to 1.2A. DFRobot DRI0039
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
Quad DC Motor Driver Shield is a DC motor driver compatible with Arduino boards operating with 3.3V and 5V. The module allows direction and speed control (using PWM signals) of four independent DC motors, so it can be used eg in four-wheeled mobile robots. The controller can control motors supplied with voltage in the range of 2.5 ... 13.5 V and with a maximum current of 1.2 A (continuous load). The module was based on the popular TB6612FNG chip. The system has overheat protection and a circuit to detect too low voltage
properties
- Power supply for motors: from 2.5 V to 13.5 V
- Supply voltage of the logic part: from 2.7 V to 5.5 V
- Number of engines: 4
- Maximum current per channel: 1.2 A (continuous operation)
- Arduino pins used: 3, 4, 5, 6, 7, 8, 11, 12
- Working temperature: -20 ° C to 85 ° C
- Dimensions: 53 x 52 mm
- Weight: 24 g
