zł265.59 tax excl.

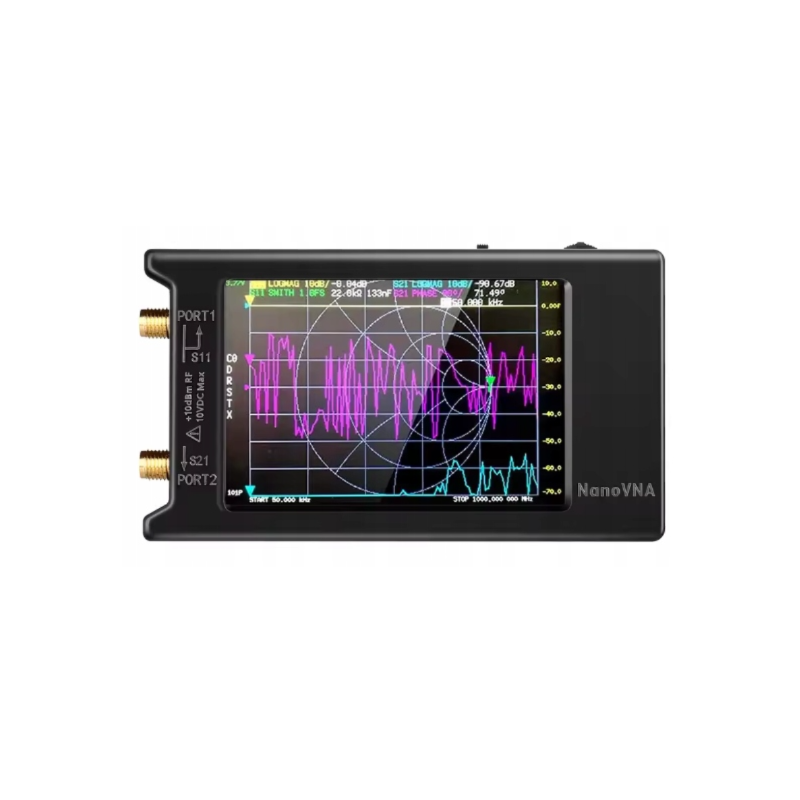

Vector network analyzer with two ports. It can perform measurements for frequencies from 50 kHz to 900 MHz. Equipped with an LCD display, it can be connected to a computer via USB. Nano VNA
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
2-port vector network analyzer that can measure frequencies from 50 kHz to 900 MHz. It offers a dynamic range of up to 70 dB at a frequency of up to 300 MHz and up to 60 dB at a frequency of 600 MHz. It offers a cycle speed of up to 101 points/s, allows you to determine S-parameters, amplitude and phase parameters, as well as quickly and accurately determine damage in coaxial cables. It will be used when analyzing antennas, amplifiers, wires and filters.
The VNA has a built-in 2.8" LCD display with a touch screen. The built-in lithium battery ensures the portability of the device and is charged via the USB type C connector. It can be connected to a computer, which allows for better analysis of measurements using dedicated software.
Features
- 2-port vector network analyzer
- Frequency Range: 50kHz to 900MHz
- Typical dynamic range: 70 dB (up to 300 MHz), 60 dB (up to 600 MHz), 50 dB (up to 900 MHz)
- SWR: <1.1
- Number of points per cycle: 101
- LCD display 2.8" 320 x 240 pixels
- 3.7V 400mAh battery
- Charging and communication connector: USB type C
- RF connector: SMA
- Metal housing
- Dimensions: 54 x 85.5 x 11mm
Kit contains
- Nano VNAs
- 2 x SMA M-M cable 30cm
- Calibration kit
- USB Type-C cable
