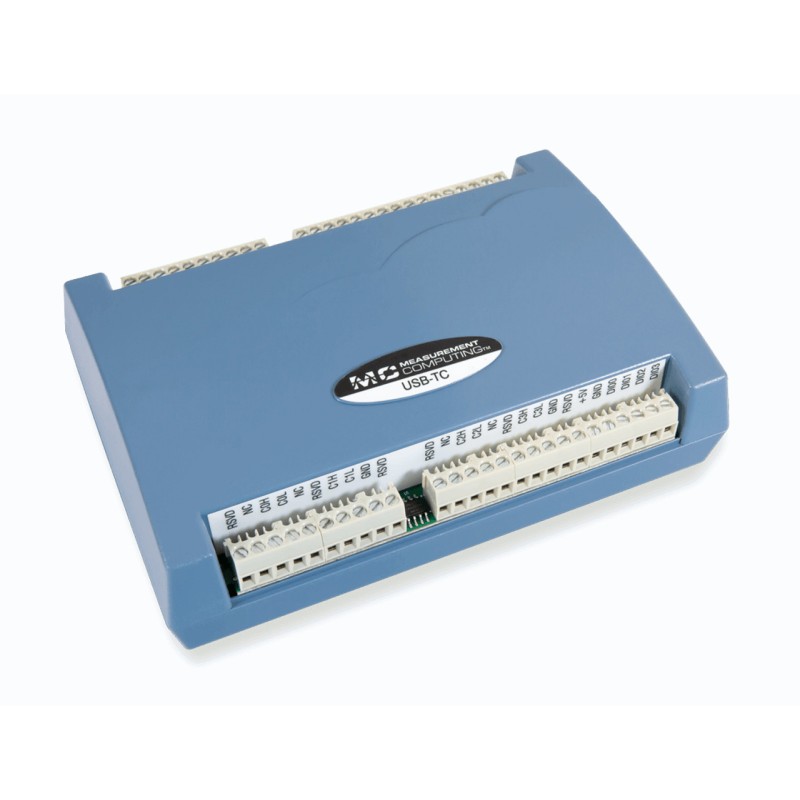

MCC USB-TC (6069-410-021) – Data Acquisition System for Thermocouple Sensors
ID: 1189971
€491.75
Tax included
€399.79 tax excl.
The MCC USB-TC data acquisition system enables data reading from thermocouple-based temperature sensors. Digilent 6069-410-021
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
The MCC USB-TC is a data acquisition system designed for reading data from thermocouple-based temperature sensors. It supports J, K, R, S, T, N, E, and B-type sensors. The device features eight 24-bit analog inputs for precise thermocouple measurements, a sampling rate of 2 S/s per channel, and eight digital I/O channels. It communicates with a computer via USB.
The device is compatible with DAQami, a ready-to-use application for data logging, visualization, and signal generation. Data can be displayed in real-time or analyzed post-acquisition on user-configurable screens.
Drivers are also provided for the most popular applications and programming languages, including Visual C++, Visual C#, Visual Basic .NET, DASYLab, LabVIEW, MATLAB, Linux, and Python.
The MCC USB-TC is ideal for industrial process monitoring, scientific research, testing and calibration, diagnostics, and quality control across various industries.
Features
- Eight differential (DIFF) analog inputs
- 24-bit resolution
- Eight thermocouple inputs (J, K, R, S, T, N, E, and B types)
- Sampling rate: 2 S/s per channel
- Eight digital I/O channels
- No external power supply required
Kit includes
- MCC USB-TC module
- USB cable
