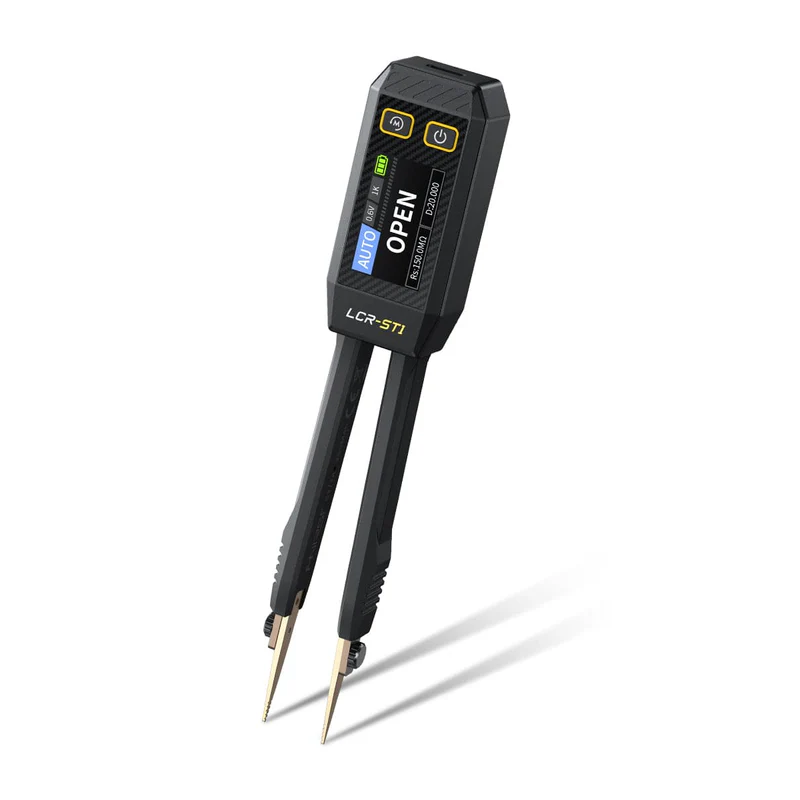

Fnirsi LCR-ST1 - digital LCR tester for SMD components
ID: 1198867
5902186306806
zł109.00
Tax included
zł88.62 tax excl.
A compact tweezers meter that allows for precise measurement of resistance, capacitance, and inductance, as well as diode and continuity testing. Equipped with a 1.14-inch color display, magnetic hold function, and three test frequencies, the device is suitable for versatile use in the field and laboratory. Its lightweight design and long battery life make the LCR-ST1 a convenient and reliable tool for electronics technicians and engineers. Fnirsi LCR-ST1
Description
FNIRSI LCR-ST1 is a modern, miniature tweezer-type meter that combines functionality with the convenience of a portable device. It allows precise, automatic measurement of resistance, capacitance, inductance, diode testing, and continuity checking. Equipped with advanced measurement technology, it guarantees high accuracy and stability, making it a reliable tool for both experienced engineers and beginner electronics enthusiasts.
The meter features a clear, color display with a 1.14-inch diagonal and a magnetic attachment function that enhances user comfort during work. The built-in 250mAh lithium-ion battery provides long operation on a single charge, and three available test frequencies (100Hz, 1kHz, 10kHz) and test levels (0.3V and 0.6V RMS) allow flexible adaptation to various tasks. The unique tweezer shape is ideal for operations in hard-to-reach places and quick testing of electronic components. Thanks to its lightweight and compact design, it is an essential tool for engineers working in the field and laboratories. The LCR-ST1 delivers fast and accurate measurement results, significantly improving the user's workflow.
Features
- Capacitance range: 1pF - 22mF
- Inductance range: 1μH - 10H
- Resistance range: 10mΩ - 10MΩ
- Diode test: forward voltage 0.7V
- Test frequencies: 100Hz, 1kHz, 10kHz
- Test levels: 0.3V and 0.6V RMS
- Display: 1.14" color screen
- Power supply: built-in 250mAh lithium-ion battery
- Charging interface: USB Type-C (5V/A)
- Automatic measurement recognition
- Replaceable tweezer tips
- Data Hold function
- Auto power off
- Data history saving and export via computer connection
- Dimensions: 28 x 19 x 150 mm
- Weight: 41 g
Kit contains
- FNIRSI LCR-ST1
- Measurement tips
- Magnetic cover
- USB cable for data transfer and charging
- Carrying case
