PS2 Shield - expansion module with PS2 controller connector for Arduino
ID: 583822
5906623405510
zł64.92
Tax included
zł52.78 tax excl.
An expansion module with a PS2 controller connector designed for Arduino boards. It communicates via the UART interface. Cytron SHIELD-PS2
Description
An expansion module with a PS2 controller connector designed for Arduino boards. It communicates via the UART interface and supports both wired and wireless pads. The board has jumpers for selecting the UART interface baud rate and selecting the RX and TX pins. Cytron PS2 Shield offers a compact yet reliable PS2 controller converter. It is powered by the Arduino motherboard. The user can use hardware or software UART to communicate with the module. Reset Shield-PS2 connects to the analog pin (A1) of the Arduino. Full documentation with examples is available on the product page.
Features
- UART protocol
- Vibration motor
- PS2 wired and wireless controller supported
- The PS2 controller automatically works in analog mode
- LED status
- Jumpers for selecting different UART baud rates (9600, 57600, 115200)
- Jumpers for selecting digital pins as the UART TX and RX pin
- 5V power supply
- Dimensions: 68 x 53 mm
583822
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
You might also like
Arduino Uno Rev3 is a popular board with Atmel ATmega328 microcontroller from the AVR family, there are 14 I / O lines, 6 PWM channels and 6 analog inputs. The additional ATmega16U4 microcontroller realizes communication via the USB interface. Arduino A000066
zł108.57
24h
Available quantity: 232
Available
The board is compatible with Arduino, based on the ATmega328P microcontroller from the AVR family, 14 I/O lines, 6 PWM channels, 6 analog inputs are available to the user. The CH340G chip communicates via a USB interface. In addition, it has 12 LEDs, a programmable button and a embedded buzzer. Cytron Uno Maker
zł36.62
24h
Available quantity: 2
Available
Wireless PS2 controller included with the receiver. It has a range of approx. 8 m and is powered by two AAA batteries. Communication via the SPI interface
zł59.90
Delivery date unknown
No product available!

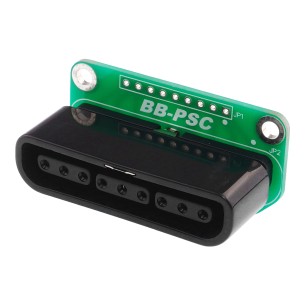

Adapter for PS2 (female) connector. The connector is pre-soldered on the PCB. The pins have a 2.54 mm pitch, which facilitates their installation on the breadboard. Cytron Breakout Board PS2 Connector
