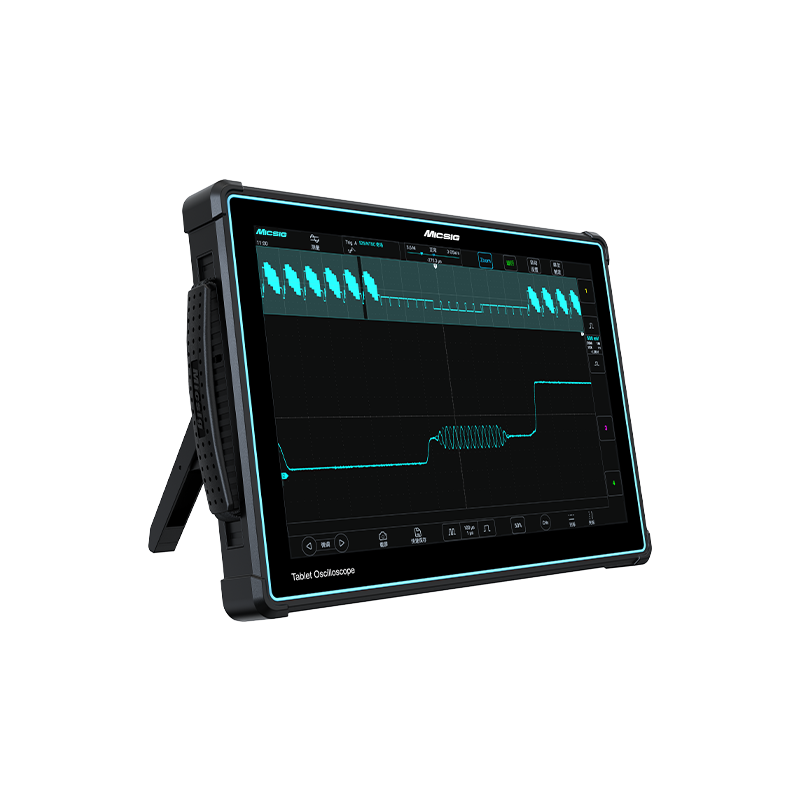

Micsig ETO5004 - 4-channel portable oscilloscope 500MHz
ID: 1190097
zł9,099.00
Tax included
zł7,397.56 tax excl.
Mobile oscilloscope with 500MHz bandwidth and 3GSa/s sampling rate, equipped with a 14″ touch screen (1920×1200) and SigTest UI™ system ensuring intuitive operation. Thanks to ultra-low noise (<90μVrms), deep 360Mpts memory and digital filter from 30Hz, it enables precise analysis of even weak signals. Built-in 13500mAh battery, USB, USB-C, HDMI and Trigger Out interfaces and VESA mount make it an ideal tool for field and laboratory work. Micsig ETO5004
Description
The ETO5004 oscilloscope from the GEN 5 ETO series is a modern and versatile measurement device designed for engineers who value mobility, high measurement quality, and intuitive operation. Equipped with the dedicated SigTest UI™ system, it offers exceptionally smooth and efficient performance, shaped by feedback from hundreds of professional users.

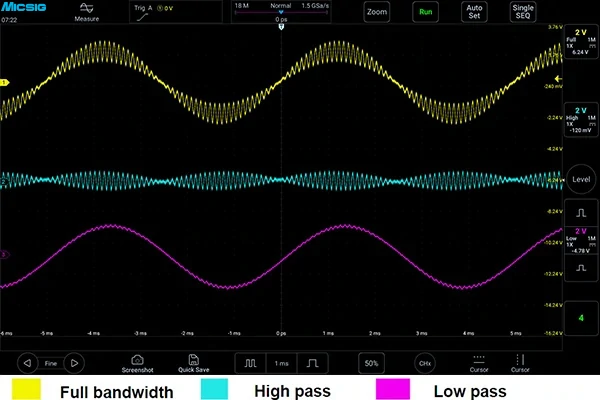

Thanks to the 14-inch fully touch-sensitive screen with a resolution of 1920 x 1200 pixels, waveform visualization is extremely clear, and the interface is user-friendly and easy to navigate. The device offers a bandwidth of 500 MHz and a sampling rate of 3 GSa/s, allowing for the capture of fast and complex signals with high precision. A memory depth of 360 Mpts ensures complete signal information retention even during long recording times. With an ultra-low noise level (<90μVrms), the detection of even the smallest interferences and background signals is possible. The oscilloscope also features a hardware digital filter capable of eliminating noise starting from 30 Hz, enhancing measurement reliability.
A built-in 13,500 mAh battery provides long-lasting field operation, making the device fully mobile. The power lock function secures the device during transport, making it ideal for field applications. A rubber-cornered housing improves mechanical resistance while maintaining a slim and lightweight design. The unit supports standard VESA 75x75 mm mounting, allowing for easy attachment to stands or holders.

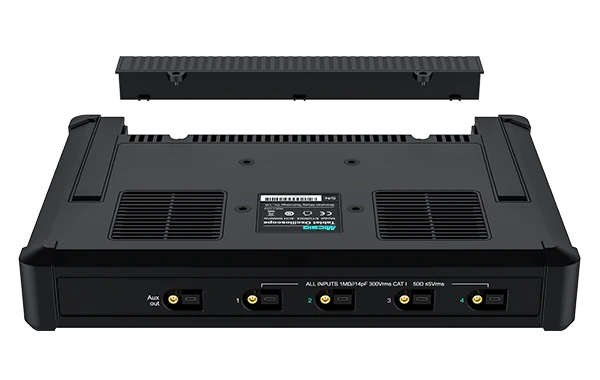

Built-in interfaces such as USB 3.0/2.0 Host, USB-C, HDMI, and Trigger Out provide extensive integration options with computers, measuring devices, and automation systems. The oscilloscope delivers a maximum acquisition rate of 230,000 wfms/s, making it highly efficient in analyzing dynamic events. Its four analog channels allow for simultaneous measurements at multiple points, which is useful in multi-signal circuit analysis. The touch interface puts all functions at your fingertips, eliminating the need for a mouse or keyboard. The ETO series is an excellent choice for both laboratory work and service testing, as well as mobile applications where precision and reliability are key.
Features
- Bandwidth: 500 MHz
- Rise time: ≤0,7 ns
- Number of analog channels: 4
- Real-time sampling rate: 3 GSa/s
- Memory depth: 360 Mpts
- Maximum waveform acquisition rate: 230,000 wfms/s
- Vertical resolution: 8 bits
- Noise level: < 90μVrms
- Display: 14" touch screen, 1920 x 1200 px
- Battery: 7.4V / 13,500 mAh Li-Ion (built-in)
- Ports: USB 3.0/2.0 Host, USB Type-C, HDMI, Trigger Out
- Operating system: SigTest UI™
- Functions: digital filter from 30 Hz, power lock, VESA 75x75 mm
- Dimensions: 353 x 245 x 56 mm
Kit contains
- Micsig ETO5004 Oscilloscope
- 4 x Passive probe
- 4 x MSP-BNC adapter
- Power adapter
- Power cord
- Battery (built-in)
- Side handle (factory installed)
- Calibration certificate
- Quick start guide
1190097
Data sheet
- Type of oscilloscope
- Portable
- Bandwidth
- 500 MHz
- Sampling rate
- 3 GSa/s
- Memory depth
- 360 Mpts
- Number of channels
- 4
