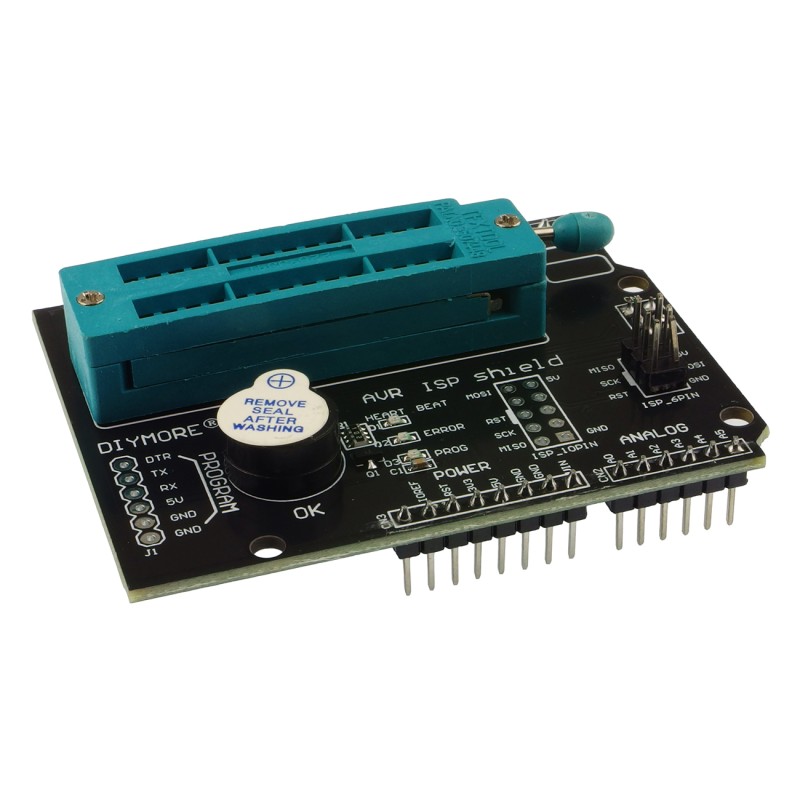

AVR ISP Shield - expansion module for Arduino for AVR programming
ID: 587606
5906623468218
zł26.88
Tax included
zł21.85 tax excl.
Shield dedicated to Arduino boards, which allows you to program AVR systems. Equipped with ISP connectors (6-pin and 10-pin) and a ZIF-28 base. AVR ISP Shield
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
Shield dedicated to Arduino boards, which allows you to turn them into an AVR programmer. It allows you to burn Bootloader in Arduino, change fuse bits and program external AVR microcontrollers using the ISP interface. The board is equipped with ISP connectors (6-pin and 10-pin) and a ZIF-28 base. The status of the programming process is signaled by a LED and a buzzer.
Features
- Compatible with Arduino Uno R3 and Arduino Mega2560
- 6-pin and 10-pin ISP connector
- ZIF-28 socket
- Buzzer
- LED signaling
- 5V power supply
- Current consumption: 500 mA
587606
