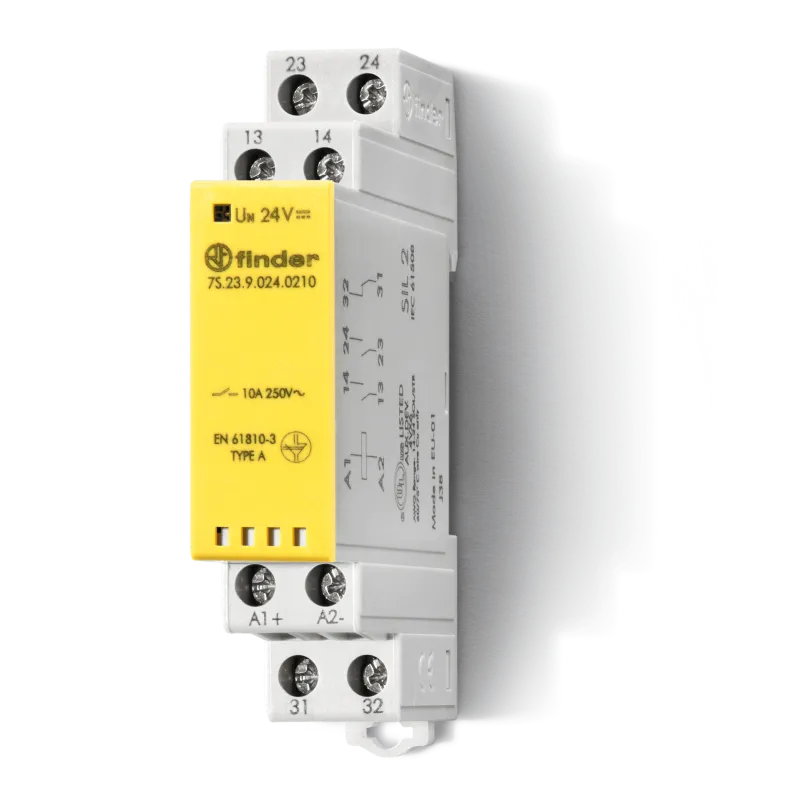

Finder 7S.23.9.024.0210 Safety Relay 24VDC 10A
ID: 1195535
5902186300651
zł206.47
Tax included
zł167.86 tax excl.
Finder 7S.23.9.024.0210 is a modular safety relay with mechanically linked contacts, compliant with the PN-EN 61810-3 and EN 13849-1 standards. Thanks to its compact design with a width of 17.5 mm, LED indicator, and compatibility with DIN 35 mm rail mounting, the relay is used in machine control systems, industrial automation, and safety installations where high operational safety and reliability are required.
Description
Finder 7S.23.9.024.0210 modular safety relay equipped with three contacts (2 normally closed + 1 normally open) featuring mechanically linked contacts compliant with Class A of the PN-EN 61810-3 standard (formerly EN 50205). The relay is designed for applications requiring an elevated level of safety, in accordance with the EN 13849-1 standard concerning machine safety. The product is equipped with a coil powered by 24 V DC and an LED indicator showing the operating status. The 17.5 mm wide module is intended for mounting on a standard DIN 35 mm rail (according to PN-EN 60715).
Properties
- Type: modular safety relay
- Contact configuration: 3 contacts (2 normally closed, 1 normally open)
- Mechanically linked contacts: Class A (PN-EN 61810-3)
- Coil: supply voltage 24 V DC
- Contact material: cadmium-free
- LED indicator showing actuation status
- Housing width: 17.5 mm
- Mounting: on DIN 35 mm rail (PN-EN 60715)
1195535
Data sheet
- Output current
- 10A
- Number of channels
- 3
- Executive element
- Security module
- Coil voltage
- 24 VDC
Manufacturer FINDER POLSKA SPÓŁKA Z OGRANICZONA ODPOWIEDZIALNOŚCIĄ Logistyczna 27, Sady 62-080 Tarnowo Podgórne Poland finder.pl@findernet.com
Responsible person FINDER POLSKA SPÓŁKA Z OGRANICZONA ODPOWIEDZIALNOŚCIĄ Logistyczna 27, Sady 62-080 Tarnowo Podgórne Poland formularz kontaktowy na stronie osoby odpowiedzialnej
