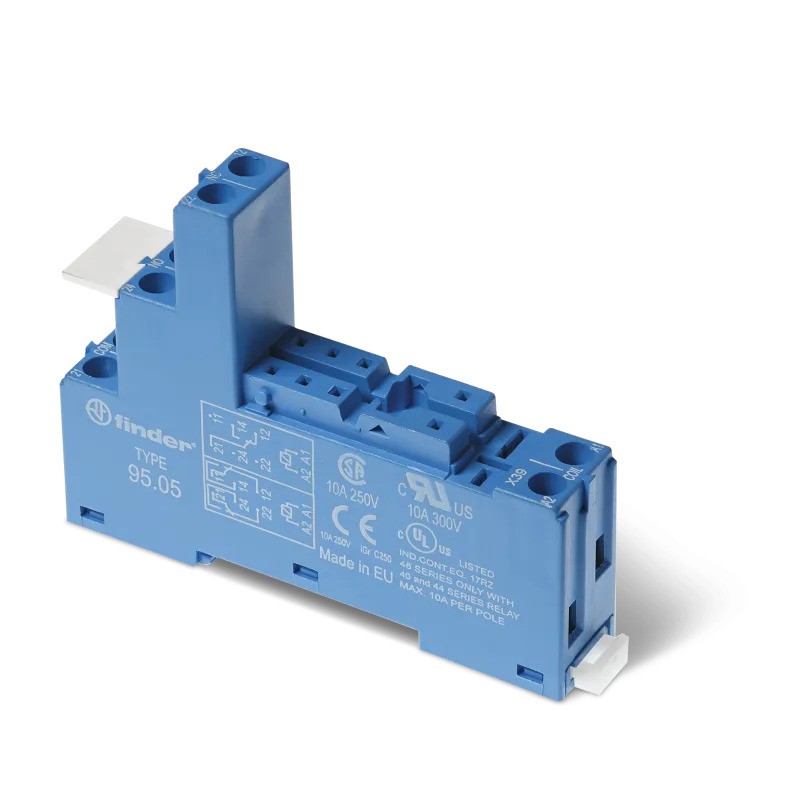

Relay socket with screw terminals - Finder 95.05 SMA

The 4120 12V 30A/40A automotive relay with two changeover contacts (NC and NO) is a robust and compact solution for controlling high current circuits in vehicles, ideal for applications such as ignition interlocks, car alarms or lighting control

Finder 7S.23.9.024.0210 is a modular safety relay with mechanically linked contacts, compliant with the PN-EN 61810-3 and EN 13849-1 standards. Thanks to its compact design with a width of 17.5 mm, LED indicator, and compatibility with DIN 35 mm rail mounting, the relay is used in machine control systems, industrial automation, and safety installations where high operational safety and reliability are required.

Finder 26.01.8.230.0000 is an impulse relay with a single NO contact, designed for installation in mounting boxes. It enables the control of circuits with a maximum current of 10 A at a voltage of up to 250 V AC. The relay coil is powered by 230 V AC, making it suitable for use in standard electrical installations.

Finder 4C.02.8.230.0060 is an interface relay with a 230 V AC coil, featuring two changeover contacts (DPDT) with an 8 A load capacity at 250 V AC. Designed for DIN rail mounting, it has screw terminals and an LED indicator that signals the operating status.

Finder 11.41.8.230.0000 is a twilight switch relay designed for DIN rail mounting, powered by 230 V AC. It features a single-pole double-throw (SPDT) contact with a 16 A load capacity at 250 V AC, allowing for automatic lighting control based on the ambient light intensity.

Finder 38.51.0.024.0060 is an interface relay module with a 24 V AC/DC coil, equipped with a single changeover contact (SPDT) with a 6 A load capacity at 250 V AC. It is designed for DIN rail mounting, facilitating easy integration into industrial automation systems.

Finder 99.01.0.024.59 is an LED module with a green diode, designed to work with sockets from series 90, 92, 94, 95, 96, and 97, providing visual indication of the relay status. This module is compatible with supply voltages from 6 to 24 V AC/DC, making it a versatile solution for various industrial applications.

Finder 55.33.8.230.0010 is an industrial electromagnetic relay with a 230 V AC coil, equipped with three changeover contact sets (3PDT) with a maximum current of 10 A. The relay features silver-nickel contacts (AgNi) and a lockable test button, making diagnostics and maintenance more convenient.

Finder 26.02.8.230.0000 is a pulse (bistable) relay equipped with two normally open (DPST-NO) contacts, with a 10 A load capacity and a maximum switching voltage of 400 V AC. Powered by a 230 V AC coil voltage, it is designed for mounting in an installation box, facilitating integration into building automation systems.

Finder 55.34.8.230.0054 is an industrial electromagnetic relay with a 230 V AC coil, equipped with four changeover contact sets (4PDT) with a maximum current of 7 A. The relay features AgNi contacts and a lockable test button, facilitating diagnostics and maintenance.

Finder 15.11.8.230.0400 is a modular "slave" dimmer with a 1–10 V input, designed for DIN rail mounting (17.5 mm width). It can control lighting loads up to 400 W, including dimmable LED and CFL lamps up to 100 W. The dimmer offers a choice between leading-edge and trailing-edge phase regulation and includes a transformer function for compatibility with electromagnetic transformers.

Finder 20.21.8.230.4000 is a modular bistable relay with one normally open (NO) contact, featuring a 16 A load capacity at 250 V AC. Powered by a 230 V AC coil voltage, it is designed for DIN rail mounting (17.5 mm width), facilitating easy integration into industrial automation systems.

Finder 41.81.7.024.8240 is a solid-state relay (SSR) with one normally open contact (SPST-NO), capable of handling a maximum load current of 3 A and a load voltage range of 12–275 V AC. It is controlled by a 24 V DC input voltage and designed for PCB mounting, featuring compact dimensions of 29 x 12.7 x 15.7 mm.

Finder 99.02.0.024.59 is an LED indicator module with a green diode, designed for use with coils operating at 6–24 V AC/DC, providing visual indication of the relay status. It is compatible with sockets from series 90, 92, 94, 95, 96, and 97, making it a versatile solution for various industrial applications.

Finder 22.21.9.024.4000 is a modular installation relay equipped with one normally open (NO) contact with a 20 A load capacity at 250 V AC. Powered by a 24 V DC coil voltage, it is designed for DIN rail mounting, facilitating easy integration into industrial automation systems.

Finder 7S.14.9.024.4220 is a modular safety relay equipped with two normally open (NO) contacts and two normally closed (NC) contacts, each with a 6 A load capacity at 250 V AC. The relay is powered by a 24 V DC coil voltage and is designed for DIN rail mounting, facilitating easy integration into industrial automation systems.
