ArduCAM B0162 OV9281 MIPI 1MP - monochrome camera module for Raspberry Pi
ID: 576986
5906623403196
1 Mpx camera module with OV9281 sensor compatible with all versions of Raspberry Pi. The maximum video resolution is 1280×800 pixels. ArduCAM B0162
Description
1 Mpx camera module with OV9281 sensor cooperating with all versions of Raspberry Pi. The sensor used has a matrix with a resolution of 1 Mpx and allows video recording at resolutions of 1280×800/60fps. The module is attached to the Raspberry Pi via a dedicated socket located on the upper side of the board. It uses the MIPI CSI-2 interface specially developed for cooperation with cameras. The set with the camera includes a 15-pin tape for connecting the camera to the Raspberry Pi model B and A, and a 22-pin tape for the Raspberry Pi Zero 2W and the Compute module.
Features
- Works with all versions of Raspberry Pi (Raspberry Pi 4 model B, Raspberry Pi 3 model B+, Raspberry Pi 3 model B etc.)
- Matrix: OV9281 (monochrome)
- Resolution: 1 Mpx (1280x800 pixels)
- Optical size: 1/4 inch
- Pixel size: 3 μm x 3 μm
- FOV: 166 degrees
- Build-in IR filter
- Focusing range: 65 mm to infinite
- Output interface: MIPI 1-line serial output
- Output formats: 8/10-bit BW RAW
- Dimensions: 40 x 40 mm
Kit contains
- Arducam OV9281 MIPI 1MP Monochrome Global Shutter Camera Module
- 150mm 15pin 1,0mm to 22pin 0,5mm FPC cable
- 80mm 22pin 0.5mm pitch FPC cable
576986
Data sheet
- Resolution
- 1280 x 800 px
- Interface
- MIPI CSI-2
- Sensor
- OV9281
- IR filter
- Yes
- Lens assembly
- none
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
You might also like
Flex Cable for Raspberry Pi Camera - 100mm / 4"
zł2.90
24h
Available quantity: 472
Available
Flex Cable for Raspberry Pi Camera - 200mm / 8"
zł2.90
24h
Available quantity: 187
Available
Flex Cable for Raspberry Pi Camera - 300mm / 12"
zł4.31
24h
Available quantity: 1
Available
Flexible cable (tape) 50 cm long, used to connect the camera module with Raspberry Pi computers. The tape has 15 wires and a pitch of 1mm
zł3.03
Delivery date unknown
No product available!

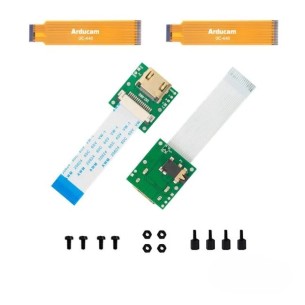

ArduCam CSI to HDMI modules are designed to work with cameras: Raspberry Pi V1 and Raspberry Camera V2. ArduCAM CSI to HDMI allows you to extend the signal from cameras using the HDMI <-> HDMI cable (up to 10 meters). Arducam B0091
