ID: 1201021
zł1,485.26
Tax included

zł1,207.53 tax excl.

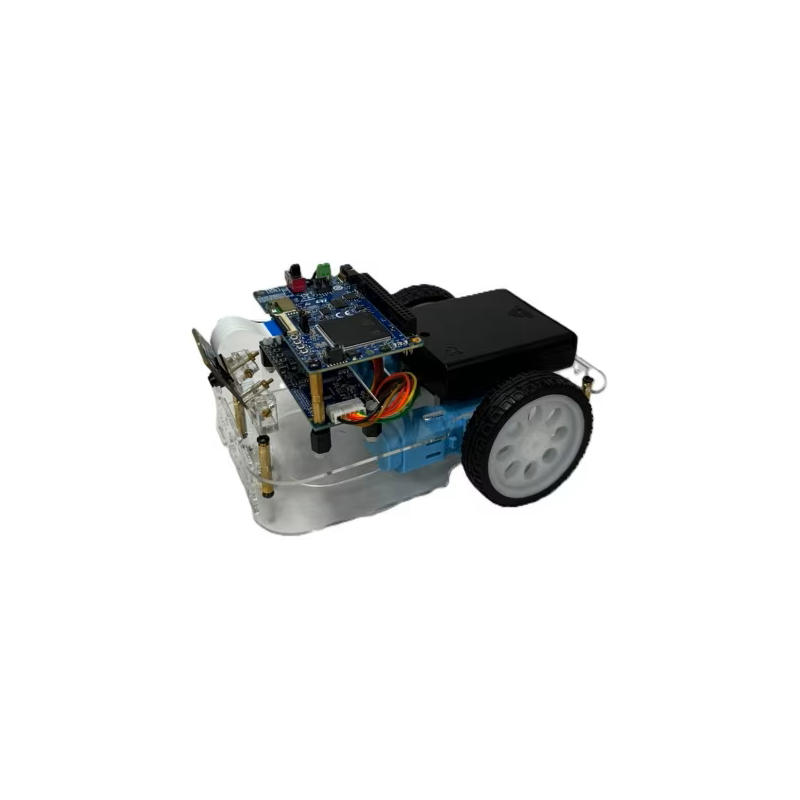

A robotics evaluation kit that enables rapid prototyping of autonomous vehicles thanks to a modular design that includes a motherboard, motor control module, and vision module. The system is based on a powerful STM32H725 microcontroller and an STM32G071 motor controller, providing precise motion control. The kit includes a camera, a ToF sensor, a 6-axis IMU, a magnetometer, and Bluetooth Low Energy, enabling the development of advanced perception and communication systems. STMicroelectronics STEVAL-ROBKIT1

24h
Available
Available quantity: 1

Description

STEVAL-ROBKIT1 is a comprehensive evaluation kit for robotics, designed as a flexible platform for developing modern autonomous applications. Thanks to its modular structure, which includes a main board, a motor control board, and a camera board, the kit enables rapid prototyping of a wide range of projects.



The core of the system is the advanced STM32H725 microcontroller, responsible for coordinating all modules and processing data. The motor control board, based on the STM32G071, allows precise motion control by regulating speed and driving direction. Environmental perception is handled by the vision module equipped with a camera and a Time-of-Flight (ToF) sensor, enabling obstacle, edge, and drop detection. The kit also includes a 6-axis IMU and a magnetometer, significantly improving motion stability and spatial orientation accuracy. The integrated Bluetooth Low Energy module allows wireless robot control using the STRobotics mobile application.

The kit comes with dedicated firmware that enables testing of autonomous driving algorithms and integration with AI-based solutions. Thanks to its open software environment, users can easily extend functionality and modify robot behavior. STEVAL-ROBKIT1 is a fully functional platform ideal for both educational use and professional robotics projects. Its extensive feature set makes it suitable for prototyping mobile robots, autonomous systems, or experimental vehicles. The robust construction and wide range of sensors enable the development of advanced perception and navigation systems. All kit components work together seamlessly, creating an environment ready for use right out of the box. As a result, STEVAL-ROBKIT1 significantly reduces development time and provides an excellent foundation for further experiments.

Features

  • Modular kit design with three separate boards: main board, motor control board, and vision board
  • STM32H725 microcontroller as the main control unit
  • Motor controller based on STM32G071
  • ToF sensor for obstacle and edge detection
  • Monochrome camera for image analysis
  • Integrated Flash memory and PSRAM
  • 6-axis IMU for odometry
  • Magnetometer for improved positioning accuracy
  • Digital microphone for audio signal recording
  • Buzzer for sound generation
  • BLE connectivity via BlueNRG-M2SA module
  • User LEDs and buttons
  • 40-pin GPIO header compatible with Raspberry Pi
  • Support for the STRobotics mobile application
  • Dedicated software with autonomous navigation algorithms
