USR-G786-G - LTE Cat.4 cellular modem with global band support, RS232/RS485 and Modbus TCP/RTU conversion
search

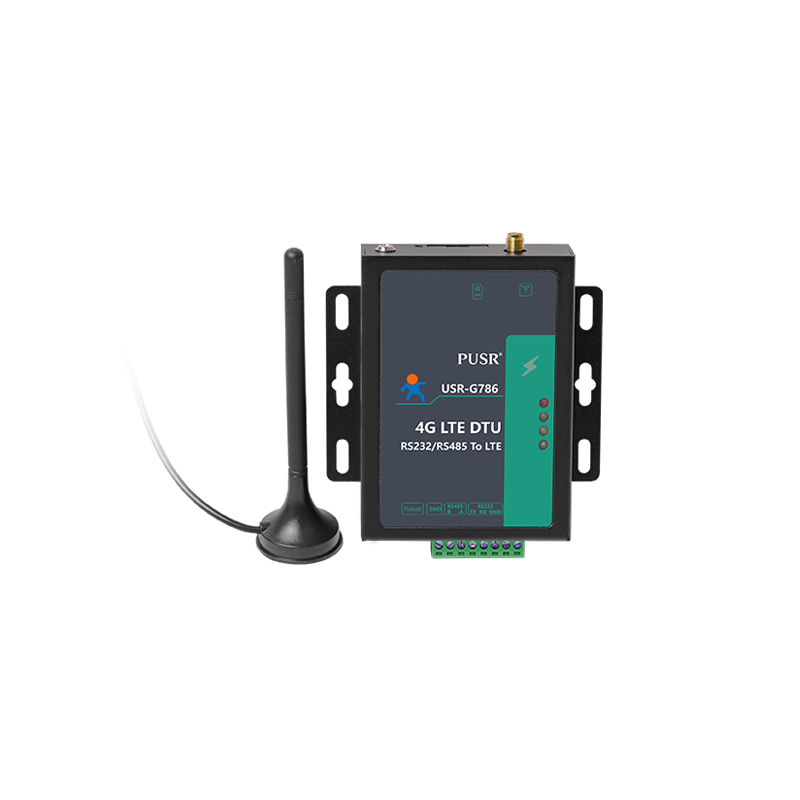

  • USR-G786-G - LTE Cat.4 cellular modem with global band support, RS232/RS485 and Modbus TCP/RTU conversion
ID: 1200633
zł335.75
Tax included

zł272.97 tax excl.

USR-G786-G is an industrial-grade LTE modem with wide band support and Modbus protocol conversion, designed for remote data transmission in automation, M2M and IoT systems. Thanks to support for multiple transmission modes and panel mounting, it is suitable for projects requiring flexibility and reliability.

4 weeks
Awaiting delivery
Kamami is the official distributor of USR converters. All products of this brand in our offer are original and come directly from the manufacturer.

Description

USR-G786-G is an industrial LTE Category 4 modem with a wide range of supported cellular bands, enabling deployment in global applications. The device provides stable and high-speed data transmission with throughput up to 150 Mbps (downlink) and 50 Mbps (uplink), with the ability to operate in 3G and 2G networks in fallback mode. It supports transparent data transmission via TCP, UDP, HTTP and SMS, as well as Modbus RTU to Modbus TCP protocol conversion, allowing easy integration with automation systems. The modem is equipped with RS232 and RS485 interfaces, 9–36 V DC power supply, ESD/EFT/surge protection and panel mounting.

Properties

  • LTE Cat.4 cellular connectivity with fallback to 3G/2G
  • Support for transparent TCP/UDP, HTTP, SMS transmission
  • Modbus RTU ↔ Modbus TCP conversion
  • Support for MQTT, NTP, DNS, FTP, OTA
  • Supported frequency bands:
  • LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28
  • LTE-TDD: B38/B39/B40/B41
  • UMTS: B1/B2/B4/B5/B6/B8/B19
  • GSM: B2/B3/B5/B8
  • Serial interfaces: RS232 (3-pin), RS485 (2-pin)
  • Mini-SIM (2FF) card slot, 1.8 V / 3.0 V
  • SMA antenna connector
  • Power supply: DC 9–36 V with reverse polarity protection
  • Current consumption: 48.95–54.78 mA at 12 V
  • Panel-mount housing
  • Operating temperature range: -35°C to +75°C
  • Dimensions: 111.51 × 94 × 28 mm
  • Indicator LEDs: POWER, WORK, NET, LINK
  • Protections: ESD, EFT, surge compliant with IEC 61000-4-2/4-5 level 3
  • Certifications: CE, RoHS

Included in the set

  • USR-G786-G modem
  • LTE antenna
  • Power connector
  • Mounting materials
