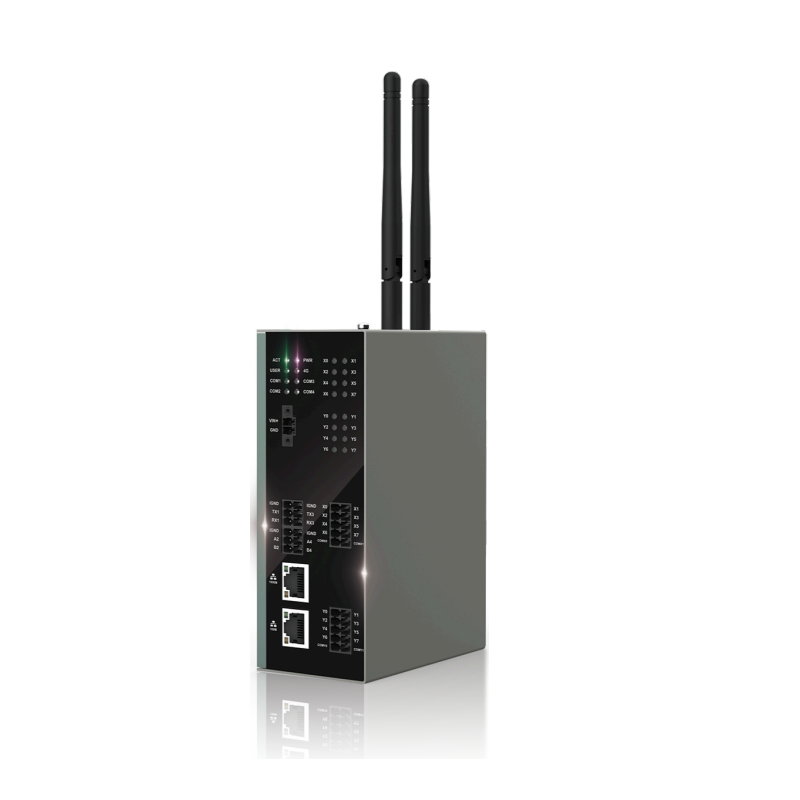

Industrial computer with Cortex-A72 1.5GHz processor, 4GB RAM, 32GB eMMC and support for Micro-SD and M.2 NVMe SSD offers versatility with Gigabit Ethernet, 100M Ethernet and 4 isolated RS485 ports with ESD protection. Equipped with 8 isolated DI inputs and 8 DO outputs, powered by 9-36V DC, operates in temperatures from -25°C to 60°C, ideal for IoT, industrial automation and data acquisition. Edatec ED-IPC2614-0432

5 weeks
Awaiting delivery

Description

Industrial computer based on the Broadcom BCM2711 chipset with a quad-core Cortex-A72 (ARM v8) 64-bit processor clocked at 1.5GHz. It features 4GB of LPDDR4 RAM and 32GB of built-in eMMC storage, with expansion options through Micro-SD card slots and M.2 NVMe SSD. The device is equipped with a dual network interface—one Gigabit Ethernet port and one 100M Ethernet port. For industrial communication, it includes 4 isolated RS485 ports with protection against electrostatic discharge and surges. Additionally, the computer offers 8 isolated digital inputs (DI) with LED indicators and AC input support, as well as 8 isolated digital outputs (DO) with overload protection.


The power supply supports a wide voltage range of DC 9V to 36V, with protections against reverse polarity, overvoltage, and overcurrent. A built-in supercapacitor provides emergency power backup, and additional features include RTC, Watchdog, EEPROM, and a cryptographic module for enhanced security. The device is designed to operate in extreme temperatures ranging from -25°C to 60°C, making it ideal for demanding industrial environments. The high-quality metal casing ensures durability, while compatibility with DIN rail mounting simplifies installation. This versatile device is an excellent choice for IoT applications, industrial automation, and data acquisition systems.

Features

  • Processor: Broadcom BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit @ 1.5GHz
  • VPU:
    • H.265 (HEVC) up to 4Kp60 (decode)
    • H.264 up to 1080p60 (decode), 1080p30 (encode)
  • GPU: OpenGL ES 3.1, Vulkan 1.0
  • RAM: 4GB LPDDR4-3200
  • Storage: 32GB eMMC
  • Micro SD card slot for additional storage
  • Optional M.2 NVMe SSD support
  • Ethernet:
    • 1x 10/100/1000M (RJ45)—supports PoE via expansion module
    • 1x 10/100M (RJ45)
  • USB Ports:
    • 2x USB 2.0 Type-A (up to 480Mbps)
    • 1x USB 2.0 (5-pin FPC)
  • HDMI: 1x Type A, HDMI 2.1 (up to 4K @ 60Hz)
  • GPIO: 10-pin (8 GPIO + power)
  • RS485: 4 ports (with isolation and surge protection)
  • 8 Digital Inputs (DI):
    • Sensor type: Wet Contact (NPN and PNP), Dry Contact
    • Isolation: 5 kV
    • Shared COM pin configuration:
      • X0, X2, X4, X6—shared COMX0 pin
      • X1, X3, X5, X7—shared COMX1 pin
    • DI to COM connection:
      • ON state: 5–30 VDC or -30 to -5 VDC
      • OFF state: 0–2 VDC or -2 to 0 VDC
    • Connector: 10-pin Phoenix terminals with 3.5mm pitch
  • 8 Digital Outputs (DO):
    • Sensor type: NPN
    • Isolation: 5 kV
    • Output: Voltage: 5–36 VDC (recommended 24 VDC), max current: 1.5A per channel
    • Connector: 10-pin Phoenix terminals with 3.5mm pitch
  • Power Input: 9 to 36V DC (2-pin Phoenix terminal)
  • Power Output:
    • 3x 12V @ 1A (for additional devices)
    • 1x 5V @ 1A (for accessories)
  • Power consumption: Up to 24W
  • RTC: Real-time clock (with CR1220 battery)
  • EEPROM: 4KB for configuration data
  • Crypto Authentication
  • Hardware watchdog based on RTC
  • Buzzer
  • Button: Device reset
  • LED Indicators:
    • PWR: Red (power)
    • ACT: Green (system status)
    • USER: Green (configurable)
    • COM1~COM4: Green (UART communication status)
    • X0~X7: 8 green LEDs for DI port status
    • Y0~Y7: 8 green LEDs for DO port status
  • M.2 B-Key: SSD support (2230, 2242)
  • DIN rail mounting
  • Operating system: Raspberry Pi OS (Desktop and Lite) 32-bit and 64-bit
  • Operating temperature: -25°C to 60°C
  • Operating humidity: 5% to 95%
  • Dimensions: 143 x 100 x 55 mm (excluding DIN rail)
  • Weight: 1 kg
