F60A mini - ESC controller module 4-8S 60A
ID: 1194486
5902186303225
zł660.71
Tax included
zł537.16 tax excl.
A compact and powerful ESC speed controller designed for RC models and FPV racing, supporting 4S–8S LiPo batteries and a constant current of 60 A (instantaneous up to 70 A). With a 20x20 mm mounting standard, it ensures durability, reliability and easy integration even in limited space. The use of AM32 software and variable PWM frequency guarantees high precision and smooth operation of the motors in all conditions. F60A mini
Description

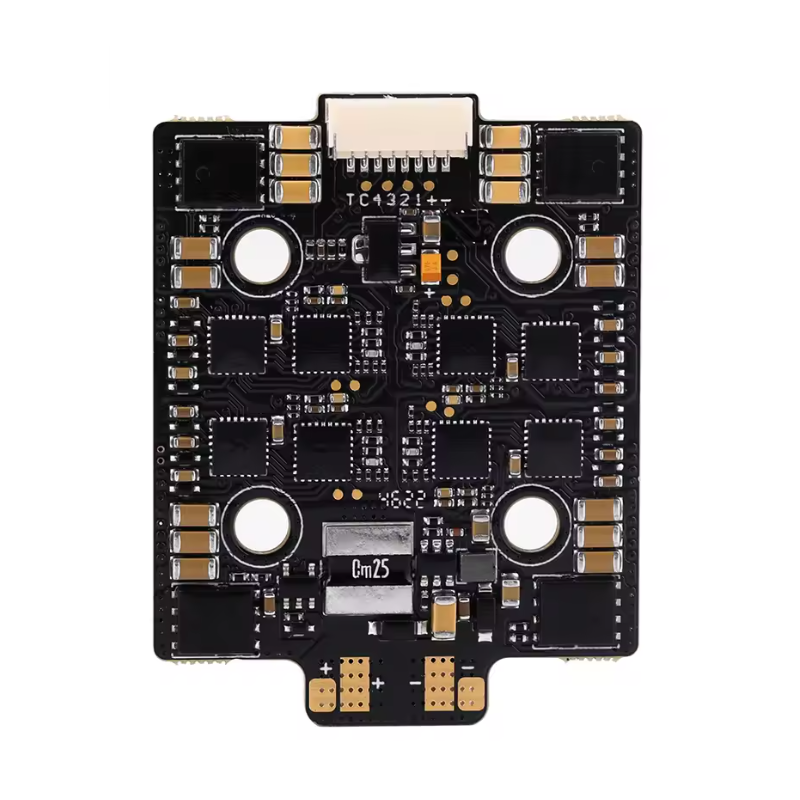

F60A Mini is a high-performance speed controller designed for FPV racing enthusiasts and remote-controlled models. It supports 4S to 8S LiPo battery packs and delivers a continuous current of 60A (burst up to 70A), making it an excellent choice for demanding users. The built-in AM32 firmware and variable PWM frequency ensure smooth and precise operation in all conditions. With a 20 mm mounting hole spacing and standard 4 mm hole diameters, installation in the model is quick and hassle-free. The ESC also offers high responsiveness and accuracy, which are crucial in FPV racing and intensive use. The F60A Mini is a reliable and modern solution for RC model enthusiasts who expect maximum performance and long component life. It is ideal for both experienced users and ambitious amateurs looking to develop their skills in remote model control.
Features
- Continuous current: 60A
- Burst current: 70A
- Power supply: 4S - 8S LiPo
- Firmware: AM32
- Variable PWM
- Mounting hole spacing: 20 mm, Ø4 mm
- Application: RC cars and models
- Compact, lightweight, load-resistant
- Dimensions: 47 x 36 mm
Kit contains
- F60A Mini ESC
- 5 x short silicone damper
- 5 x long silicone damper
- 32 mm signal wire (dual-sided)
- 61 mm signal wire (single-sided)
- 35V 470µF capacitor
- 100 mm power cable with XT60 connector
1194486
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
