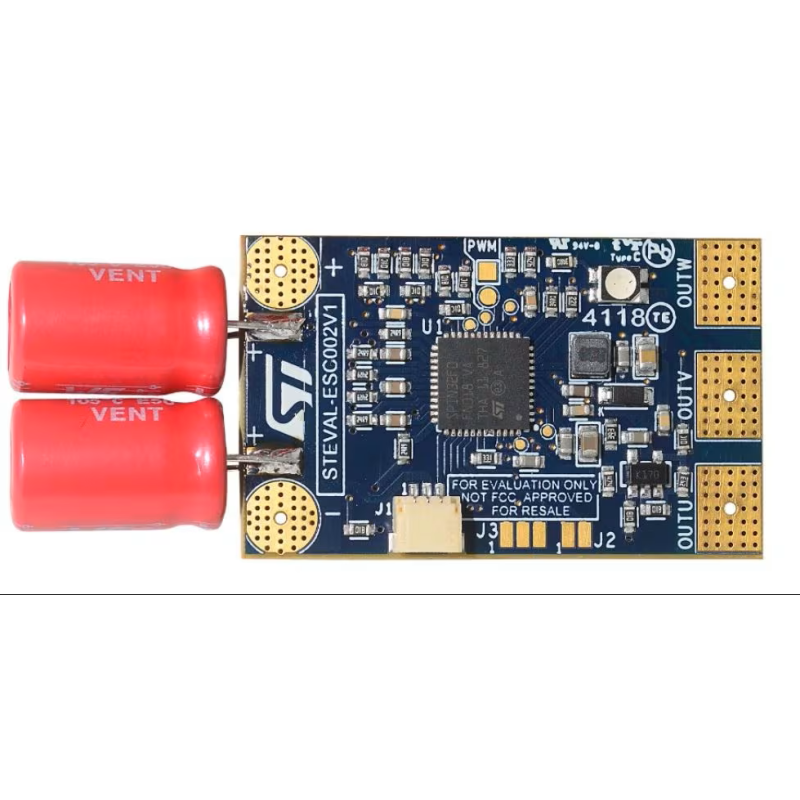

STEVAL-ESC002V1 - ESC speed controller module with STSPIN32F0A system
ID: 1202262
zł155.39
Tax included
zł126.33 tax excl.
A compact ESC module designed for BLDC motors, ideal for drones and mobile devices. Equipped with the STSPIN32F0A chip and ultra-low RDS(on) transistors, it provides efficient operation and currents up to 20A. It supports 2S–6S LiPo batteries and offers precise sensorless control thanks to BEMF detection. STMicroelectronics STEVAL-ESC002V1
Description
STEVAL-ESC002V1 is an extremely compact and fully ready-to-use reference Electronic Speed Controller (ESC) board designed for modern racing drones, inspection platforms, and other projects using BLDC brushless motors. Thanks to its small size and lightweight design, the board is perfect wherever minimal weight and dimensions are crucial. At its core lies the advanced STSPIN32F0A system-in-package, which integrates an STM32 Cortex-M0 microcontroller, gate drivers, and power management circuits in a single chip. This high level of integration simplifies design, reduces the number of components, and improves system reliability. The power stage based on STL140N6F7 MOSFETs delivers extremely low RDS(on) of just 2.8 mΩ, allowing continuous currents up to 20 A while maintaining high efficiency.
The board operates from 2S–6S LiPo batteries, offering a wide application range—from lightweight drones to more demanding propulsion systems. The integrated SEM (BEMF) detection circuitry provides precise sensorless control, while the built-in UART bootloader enables quick and convenient firmware programming. ST provides a complete software package, STSW-ESC002V1, which significantly accelerates development and allows users to focus on application logic. Additionally, a bright RGB LED is included for status indication. The design meets RoHS and 2006/66/EC standards, ensuring full compliance with modern safety and environmental requirements. Altogether, this makes the board an ideal solution for hobbyists, drone builders, and engineers seeking a stable, fast, and ready-to-use BLDC controller that combines compact size with high functionality.
Features
- Very compact and lightweight design
- Ideal for drones and mobile devices
- Sensorless six-step control – precise BLDC motor operation without Hall sensors
- Powered by 2S–6S LiPo battery packs
- Output current up to 20 A RMS using STL140N6F7 MOSFETs with low RDS(on) of 2.8 mΩ
- Integrated STSPIN32F0A controller with STM32F0 MCU, MOSFET drivers, and voltage regulators
- Built-in operational amplifiers for BEMF measurement
- Integrated UART bootloader for easy programming
- Compatible with STSW-ESC002V1 firmware, including ready-to-use control algorithms
- Built-in RGB LED for status indication
- Compliant with RoHS and 2006/66/EC standards
