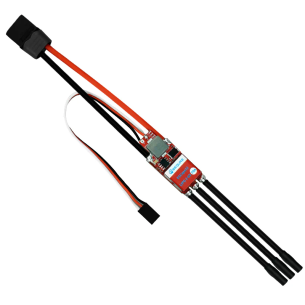

SEQURE SQESC 2670 - ESC controller 2-6S 70A AM32
ID: 1205236
5902186337633
zł159.14
Tax included
zł129.38 tax excl.
Brushless ESC speed controller designed for FPV drones and RC models. Equipped with a 32-bit STM32G071 processor and PWM support up to 128 kHz, it ensures smooth and responsive motor operation. It supports DShot, PWM, Oneshot, and Multishot protocols, offering broad compatibility with flight controllers, as well as a continuous current of 70 A and a maximum current of 110 A. It has a built-in adjustable BEC (5-12 V). SEQURE SQESC 2670 AM32
Description
SEQURE SQESC 2670 is an advanced brushless motor ESC designed for a wide range of RC applications, including FPV drones, multirotors, RC airplanes, boats, and off-road vehicles. The device is equipped with a powerful 32-bit STM32G071 processor operating at up to 64 MHz, ensuring very fast and precise motor control. Support for PWM frequencies up to 128 kHz enables smooth, responsive operation and high drive efficiency. The use of high-current MOSFET transistors and a metal heatsink allows for effective heat dissipation.
SEQURE SQESC 2670 offers wide compatibility thanks to support for DShot (all variants), PWM, Oneshot, and Multishot protocols, enabling operation with most flight controllers. Automatic throttle signal detection at startup simplifies configuration and speeds up setup. The built-in protection system, including low voltage, overheating, motor stall, and overcurrent protection, increases operational safety and protects components.
Advanced configuration options are available via a visual programming tool, allowing adjustment of parameters such as motor timing, throttle calibration, rotation direction, and response characteristics. Additionally, the device features programmable RGB LED lighting, enabling visual customization. Thanks to its versatility and high performance, SEQURE SQESC 2670 is an excellent choice for demanding users looking for a reliable ESC for various RC applications.
Features
- Processor: STM32G071
- Input voltage: DC 7V to 25.2V (2 to 6S LiPo)
- Continuous current (with proper cooling): 70A
- Peak current (with proper cooling): 110A
- Supported firmware: AM32
- Supported protocols: DShot (All), PWM, Oneshot, Multishot, etc.
- Programmable parameters
- Throttle calibration
- Timing adjustment
- Current sensing
- Telemetry signal
- Motor rotation direction settings
- RGB LED lighting
- Dimensions: 190 × 18 × 11 mm
- Weight: 22 g
1205236
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
