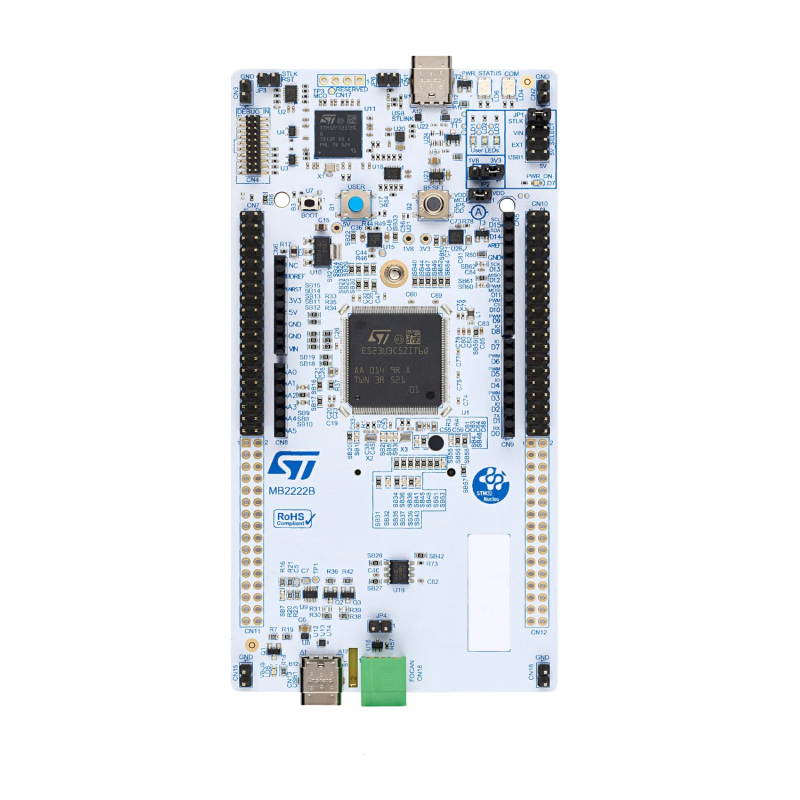

The NUCLEO-U3C5ZI-Q is an STM32 development board with an STM32U3C5ZI microcontroller, offering enhanced functionality and high levels of integration. ST morpho and ARDUINO Uno V3 connectors enable flexible prototyping with ARDUINO-compatible shields. STMicroelectronics NUCLEO-U3C5ZI-Q

24h
Available
Available quantity: 5

Description

The NUCLEO-U3C5ZI-Q development board with the STM32U3C5ZI microcontroller enables the design of advanced low-power applications using the ARM Cortex-M33 core. The microcontroller, available in an LQFP144 package, features 2 MB of Flash memory and 640 kB of SRAM, offering up to 114 I/O lines. The board is compliant with the STM32 Nucleo-144 format and is equipped with ST morpho and ARDUINO Uno V3 connectors, extending compatibility with ARDUINO Uno V3 shields. The integrated ST-LINK programmer/debugger supports MSC, Virtual COM, and debug port functions. Additional components include 3 LEDs, a user button, a RESET button, and a 32.768 kHz oscillator. Power can be supplied via USB, an external connector, or ST-LINK.

Features

  • Microcontroller: STM32U3C5ZI, ARM Cortex-M33
  • Flash memory: 2 MB
  • SRAM: 640 kB
  • Microcontroller package: LQFP144
  • Number of I/O pins: up to 114
  • Oscillator: 32.768 kHz
  • LEDs and buttons: 3 LEDs, 1 user button, 1 RESET button
  • Connectors: ST morpho, ARDUINO Uno V3, USB
  • Debugger: integrated STLINK-V3E
  • Power supply: USB ST-LINK, user USB, or external source
  • Support: STM32Cube MCU Package, STM32CubeIDE, IAR Embedded Workbench, MDK-ARM
1204846

Data sheet

Microcontroller
STM32U3C5ZI
Number of I/O
114
Ethernet
none
WiFi/BT module
No
Bluetooth module
No
MicroSD slot
No
Length
Other
Width
Other
USB connector type
USB type C
