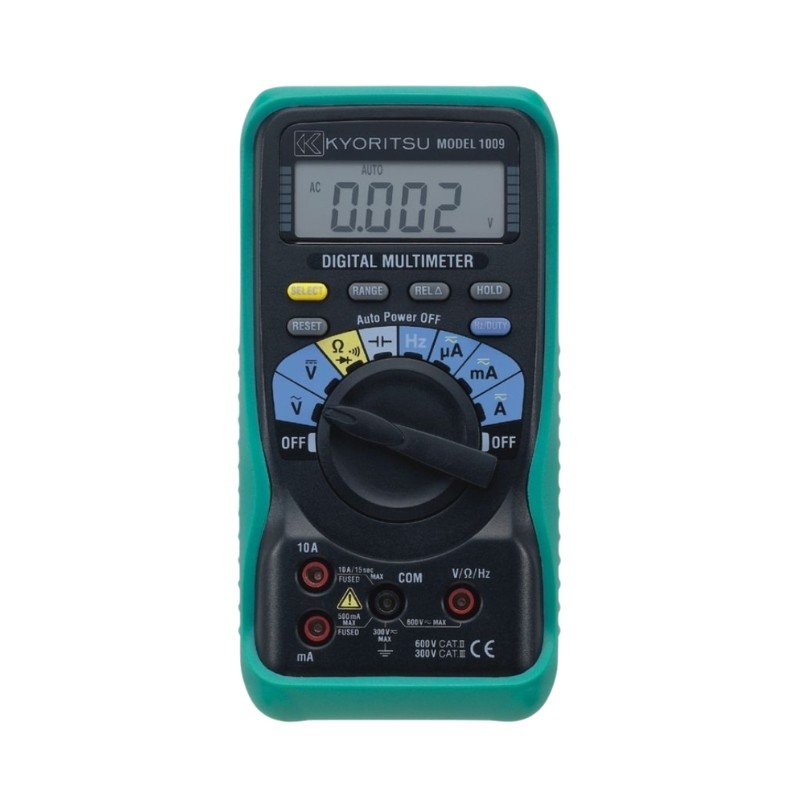

Digital multimeter for measuring AC/DC voltage up to 600 V, current up to 10 A, resistance, capacitance and frequency. Kyoritsu KEW1009

24h
Available
Available quantity: 2

Description

Digital multimeter designed for electrical measurements in low-voltage circuits, used in installation diagnostics, device servicing and control measurements. Supports measurement of AC/DC voltage, AC/DC current, resistance, capacitance, frequency and duty cycle, enabling analysis of both steady and varying signals. The design meets safety requirements for CAT III 300 V and CAT II 600 V categories, allowing use in typical electrical installations.

Automatic and manual range selection allows adjustment to measurement conditions. REL function enables relative measurements with respect to a reference value, while Data Hold allows freezing the result on the display. Continuity test with audible signal and diode test support diagnostics of circuits and electronic components. The LCD display provides readings up to 3999 counts and extended range for frequency measurement.

Features

  • DC voltage measurement: up to 600 V
  • AC voltage measurement: up to 600 V
  • DC current measurement: up to 10 A
  • AC current measurement: up to 10 A
  • Resistance: up to 40 MΩ
  • Capacitance: up to 100 µF
  • Frequency: up to 10 MHz
  • Duty cycle: 0.1 - 99.9%
  • Continuity test with buzzer: ≤ 100 Ω
  • Diode test: test current approx. 0.4 mA
  • DC voltage accuracy: ±0.6% - ±1.0%
  • AC voltage accuracy: ±1.3% - ±2.0%
  • Automatic and manual range selection
  • Data Hold function
  • REL function
  • Display: 3999 counts (5199 for Hz)
  • Auto power off: approx. 30 min
  • Low battery indication
  • Current protection: 600 V fuses
  • Measurement category: CAT III 300 V, CAT II 600 V
  • Power supply: 2 x AA 1.5 V
  • Operating temperature: 0°C - 40°C
  • Dimensions: 155 x 75 x 33 mm
  • Weight: 260 g

Kit includes

  • Multimeter
  • Test leads
  • Protective holster
  • 2 x AA batteries
1205021

Data sheet

Upper DC voltage range
400 mV/4 V/40 V/400 V/600 V
Upper AC voltage range
4 V/40 V/400 V/600 V
Upper DC current range
200μA/2mA/20mA/200mA/10A
Upper AC current range
600μA/6000μA/60mA/600mA/10A
Upper resistance range
400 Ω/4 kΩ/40 kΩ/400 kΩ/4 MΩ/40 MΩ
Upper capacitance range
2nF/20nF/2μF/100μF
Frequency range
No
Temperature measurement
No
Range adjustment
Automatic
True RMS
No
Hold function
Yes
Continuity tester
Yes
Diode tester
Yes
Transistor hFE measurement
No
Buzzer
Yes
Battery indicator
Yes
Automatic shut-off
Yes
Display backlight
No
Battery type
AA
Length
155 mm
Width
75 mm
Thickness
33 mm
Weight
260 g
