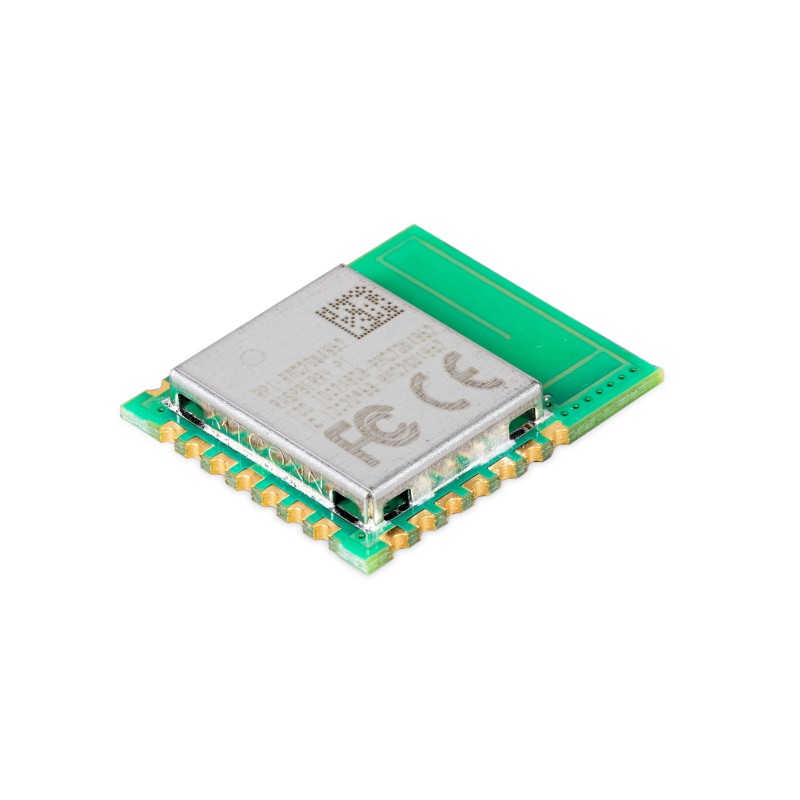

Raspberry Pi Radio Module 2 RMC20452T - radio module for Raspberry Pi microcontrollers
ID: 1198420
5056561805894
zł24.90
Tax included
zł20.24 tax excl.
The Raspberry Pi RMC20452T is a Wi-Fi 4 and Bluetooth 5.2 module designed for use with Raspberry Pi microcontrollers like the RP2040. It offers low power consumption and simple integration thanks to its gSPI interface and full radio certification. Ideal for IoT projects, home automation, and wireless communication systems
Description
The RMC20452T radio module is designed for use with Raspberry Pi microcontrollers such as the RP2040 and RP2350. Based on the Infineon CYW43439 chip, it supports Wi-Fi 4 (802.11n) in the 2.4 GHz band and Bluetooth 5.2 (Classic and Low Energy). The integrated single 2.4 GHz antenna supports Wi-Fi and Bluetooth in a SISO configuration, simplifying device design.
The module is fully module-certified, facilitating compliance with radio regulations. It communicates using a low-overhead gSPI interface and provides three host-controlled GPIO lines. Integrated PA and LNA amplifiers increase transmission range and reliability. The RMC20452T features low power consumption, making it suitable for energy-efficient IoT applications and embedded systems.
Features
- Wi-Fi 4 (802.11n), 2.4 GHz band, data rate up to 96 Mbps (PHY)
- Bluetooth 5.2: Classic and Low Energy, range up to 100 m (Class 1)
- Software compatibility with the Pico W and Pico 2W SDKs
- Three GPIO lines controlled by the host
- gSPI interface with low pin overhead
- SISO configuration with a single 2.4 GHz antenna
- Built-in PA and LNA amplifiers
- Current consumption: 1.19 mA (sleep mode), 43 mA (receive), 271 mA (transmit)
- Operating temperature: −30°C to +70°C
- Dimensions: 16.5 mm × 14.5 mm, package with 21 castellated pads
1198420
Data sheet
- Logic voltage
- 3,3 V
- Wi-Fi chip
- CYW43439
- Wi-Fi standard
- 802.11 b/g/n
- Frequency range
- 2,4 GHz
- Baud rate
- 96 Mbps
- Antenna connector
- Brak
- Power supply voltage
- 3,0-4,8 V
