USR-ST508E compact outdoor Wi-Fi bridge 5.8GHz
ID: 1189723
5906623486151
zł130.91
zł118.57
Save zł12.34
Tax included
zł96.40 tax excl.
Lowest price 30 days:
zł130.91
Compact Wi-Fi bridge for short to medium-range network transmission. With the advanced iPoll 3 protocol and support for multiple services, it is ideal for various video surveillance scenarios. Its IP-66 rated housing ensures weather resistance
Description
The ST515N outdoor wireless bridge is a high-performance, versatile device operating in the 5.8 GHz band with a Qualcomm-based solution. With high transmission power, high-quality components, and a built-in 15 dBi directional antenna, the ST515N is ideal for medium and short-range transmissions, especially within a distance of 3 kilometers and up to a maximum range of 5 kilometers. The bridge is particularly useful in various video surveillance scenarios, such as agriculture, forestry, industry, commerce, transportation, and docks. Featuring the iPoll 3 protocol based on TDMA technology, the device provides excellent interference resistance and stable transmission even in dense and challenging environments. It supports wireless traffic optimization and includes advanced QoS mechanisms. The device's housing meets the IP-66 standard, making it weather-resistant, and with a 2 kV surge resistance design, the device is highly reliable even in complex electrical environments.
Features
- High Performance: Operates in the 5.8 GHz band, offering high transmission power and a built-in 15 dBi directional antenna
- Long-Distance Transmission: Recommended for use up to a distance of 3 kilometers, with a maximum range of 5 kilometers
- iPoll 3 Protocol: TDMA technology providing excellent interference resistance and stable transmission in challenging conditions
- Advanced QoS: Supports transmission priorities with four priority queues and comprehensive support for various services
- Weather Resistance: The housing meets the IP-66 standard, is UV and corrosion-resistant
- Diagnostic Toolset: Built-in tools such as spectrum analysis, link test, ping, and traceroute facilitate installation and troubleshooting
- Versatile Channel and Bandwidth Options: Supports a wide band of 4.9GHz-6GHz and non-standard channels, allowing flexible channel planning and interference avoidance
- Operating Temperature: -40°C ~ +70°C
- Dimensions: 141x77.5x53mm
- Weight: 300g
Includes
- USR-ST515N
- 304 Stainless steel hose clamp
1189723
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Other products in the same category (16)
Connect your Arduino-compatible to the Internet with this WiFi shield that features the FCC-certified ATWINC1500 module from Atmel. Adafruit 3654
zł125.28
24h
Available quantity: 1
Available

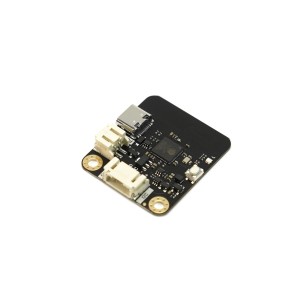

Board for applications in the area of the Internet of Things (IoT). The module is based on the ESP-WROOM-32E system with 240 MHz clock, equipped with 4 MB Flash and 520 KB SRAM, as well as WiFi and Bluetooth communication. DFrobot DFR0654-F
zł66.32
24h
Available quantity: 2
Available
Seeed Studio 114993187 is an LPWAN Asset Tracker development kit based on the Wio-WM1110 module, supporting the Amazon Sidewalk network. With integrated GNSS, Wi-Fi, and Bluetooth, it enables precise asset tracking, while built-in sensors and compatibility with Grove modules provide extensive capabilities for IoT applications and monitoring systems.
zł155.45
4 weeks
No product available!
Wi-Fi module based on the ESP8266 system - simplicity of use (communication through UART, supports AT commands), 3.3V power supply, support for WPA / WPA2 encryption - these features make the EPS8266 module applicable anywhere, where reliable and effective data transmission. The module is not equipped with an antenna, it should be attached using the U.FL connector. ESP-05
zł16.06
24h
Available quantity: 20
Available
The Wireless-RTL8822CE module with the RTL8822CE-CG chip enables high-speed, dual-band WiFi and Bluetooth 5.0 connectivity, supporting wireless communication in embedded systems. Thanks to its compatibility with the M.2 A/E Key interface and NVIDIA Jetson boards, it is used in projects requiring reliable network connection and data transmission in IoT environments, robotics, or video processing.
zł34.97
24h
Available quantity: 7
Available
WiFi 802.11b/g/n controller in the 2.4GHz band, offering simple integration with systems requiring a stable wireless connection. Thanks to SPI and UART interfaces and support for emPower emNet WiFi, it allows easy testing of WiFi solutions with minimal code changes and flexible adaptation to various applications. Segger emPower WiFi Module - Longsys/Arrow GT202 (6.37.04)
zł999.01
1 weeks
No product available!
Integrated circuit, combining Wi-Fi functionality and Bluetooth 4.2 BLE. Integrated 32-bit dual-core Xtensa LX6 processor, 448kB ROM, 520kB SRAM. ESP32 allows you to work with many interfaces, including SPI, I2C, UART, CAN, ETH, IR and can be supplied with 2.2V-3.6V. The system has a QFN48 (5x5mm) housing. ESP32-D0WD
Regular pricezł13.60zł9.58
24h
Available quantity: 97
Available
Development board D1 Mini with WiFi module ESP-8266MOD and 4 MB Flash memory. The module can be programmed from the Arduino IDE level. WeMos D1 Mini
zł19.36
24h
Available quantity: 15
Available
WiFi controller supporting IEEE 802.11b/g/n standards in the 2.4GHz band, ideal for integration with embedded systems requiring reliable wireless communication. With SPI and UART interfaces and the ability to easily update the software, it is a versatile and energy-efficient solution that works well in IoT applications, automation systems and mobile devices. Segger emPower WiFi Module - Atmel ATWILC1000 (6.37.01)
zł1,036.19
1 weeks
No product available!
RN-171 Series 54 Mbps 2.4GHz SMT WiFly GSX 802.11 b/g Wireless LAN module, MICROCHIP, RoHS
zł121.91
24h
Available quantity: 7
Available
WiFI 802.11 b/g/n module. Equipment includes, among others: LED diode, antenna, 8 pins with 2.54mm pitch (including 3 GPIO lines). Power supply: 3.3V.
zł10.41
24h
Available quantity: 88
Available

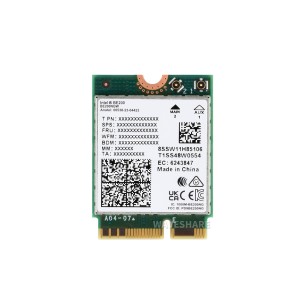

Wireless-BE200 is a modern Wi-Fi 7 network card with an M.2 E Key interface, offering high throughput across three frequency bands and Bluetooth 5.4 for versatile wireless connectivity. With advanced technologies such as MU-MIMO and WPA4, it is ideal for upgrading computers, development kits, and modern embedded systems with fast and secure network access.
zł108.19
24h
Available quantity: 1
Available
WiFi module dedicated to Coral Dev Board Micro. It uses the Murata LBEE5HY1MW chip and connects to the base board via B2B connectors. Coral G650-07974-01
zł138.01
2 weeks
No product available!

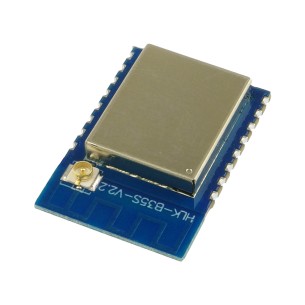

The HLK-B35S module is a compact Wi-Fi + BLE solution for wireless communication in IoT and automation projects. modHLK-B35S
