ID: 1195702
zł72.98
Tax included

zł59.33 tax excl.

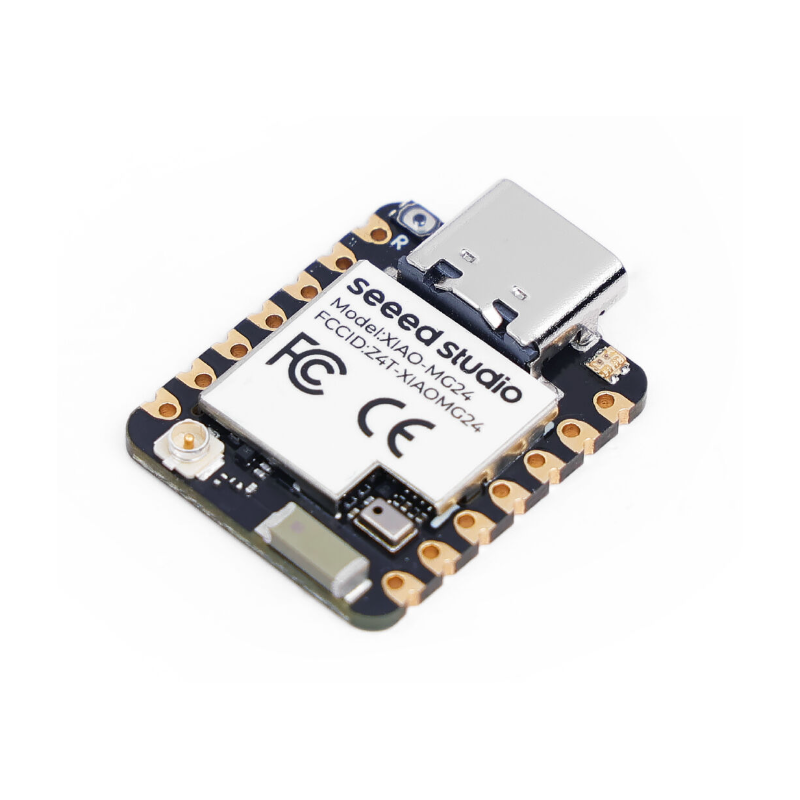

A development board based on the Silicon Labs EFR32MG24 SoC that supports Matter®, Thread®, and Bluetooth® Low Energy 5.3, making it ideal for IoT applications such as smart homes and wearables. With 4MB Flash and 256kB RAM, the board enables more complex applications, including AI, and its low power consumption makes it an excellent choice for battery-powered projects. The board offers broad compatibility with additional XIAO modules, allowing for easy expansion of projects, and built-in security features ensure data and applications are protected. Seeed Studio 102010610

Delivery date unknown
Out-of-Stock
Kamami is the official distributor of Seeed Studio modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.



Free shipping

free shipping in Poland for all orders over 500 PLN



Same day shipping

If your payment will be credited to our account by 11:00



14 days for return

Each consumer can return the purchased goods within 14 days

Description

The Wio-SX1262 and XIAO ESP32S3 module is a modern IoT device that combines the versatility of the ESP32S3 microprocessor with LoRa technology, offering an efficient and flexible solution for wireless communication. The module supports a wide frequency range from 868 to 915 MHz and includes an external antenna with a 2 dBi gain, enabling LoRa communication over distances of up to 5 km in open spaces. Preloaded with single-channel LoRaWAN gateway firmware, the device is ready to use out of the box, allowing users to quickly get started with the SenseCraft application. Additionally, the module supports the Meshtastic protocol, facilitating mesh networks for communication in extreme conditions without Wi-Fi or cellular networks.

Wio-SX1262 and XIAO ESP32S3

Equipped with a high-performance Xtensa LX7 dual-core processor, running at up to 240 MHz, and compatible with Arduino and MicroPython, this module delivers exceptional performance. It also supports Wi-Fi 2.4 GHz and Bluetooth 5.0, making it a versatile tool for various applications. Its advanced power management system allows for USB-C power input and battery charging, ensuring convenience for mobile and outdoor projects. The GPIO ports enable integration with additional modules, such as GNSS, further expanding its functionality.

This module is ideal for both beginners and advanced users looking to explore LoRa/LoRaWAN technology. Its compact size and lightweight design make it perfect for projects where space is limited. It supports rapid prototyping using the XIAO expansion board and Grove sensors. The module can be used as a LoRaWAN gateway, a Meshtastic node, or a LoRaWAN sensor, with functionality adaptable to user needs. It is one of the most cost-effective options for connecting multiple LoRaWAN sensors to servers such as The Things Network or Chirpstack.

Wio-SX1262 Module Overview

Features

  • Processor: ESP32-S3R8, Xtensa LX7, dual-core 32-bit, up to 240 MHz
  • Memory: 8 MB PSRAM, 8 MB Flash
  • Wireless Communication: LoRa (862-930 MHz), Wi-Fi 2.4 GHz, Bluetooth 5.0
  • Interfaces: UART, I2C, SPI, 11 GPIO (PWM), 9 ADC, user LED
  • Power Supply: USB-C 5V input, battery charging with 100 mA current
  • Range: 2-5 km (LoRa), over 100 m (Wi-Fi/BLE)
  • Antennas: External LoRa and Wi-Fi antennas
  • Operating Temperature: -40°C to 65°C
  • Dimensions: 21 x 17.8 mm

Kit contains

  • XIAO ESP32S3
  • Wio-SX1262 Module
  • LoRa Antenna
  • WiFi Antenna
1195702

Data sheet

Microcontroller
EFR32
Flash memory
1536 kB
Number of I/O
22
Ethernet
none
WiFi/BT module
No
Bluetooth module
Yes
MicroSD slot
No
Length
21 mm
Width
17,8 mm
USB connector type
USB type C
