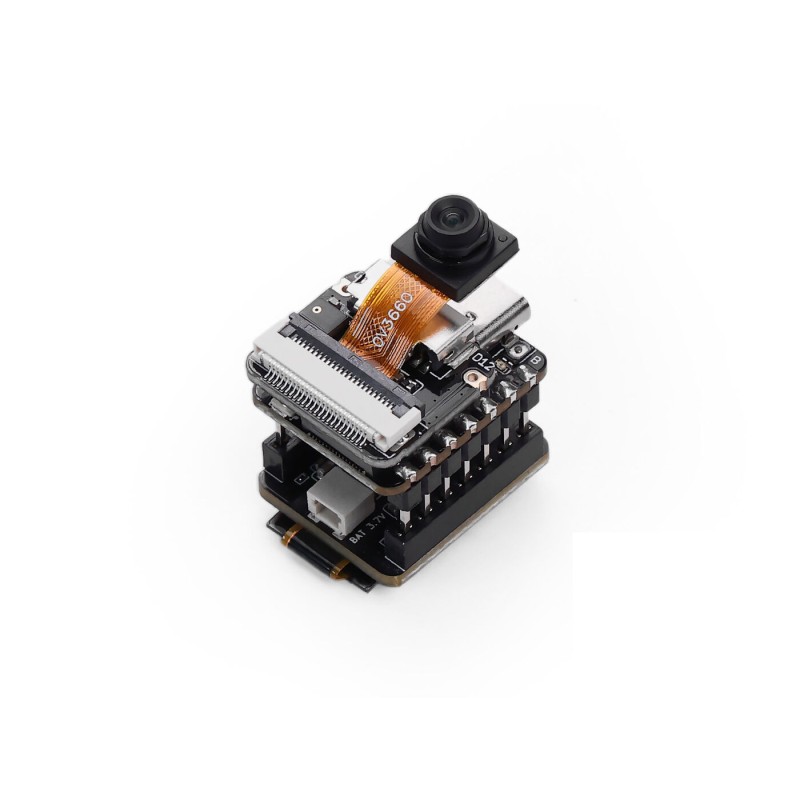

  • Main view
  • Bottom view
  • Side view
  • Top view
ID: 1202930
zł229.63
Tax included

zł186.69 tax excl.

An educational kit for learning machine learning and tinyML, based on the XIAO ESP32-S3 Sense module with a built-in camera and microphone. It includes an expansion board with a 6-axis IMU sensor, OLED display, and microSD card reader, allowing you to work with video, audio, and motion data. The kit supports the Arduino IDE, TensorFlow Lite, and the SenseCraft AI platform, allowing you to easily train and deploy ML models on edge devices. Seeed Studio E2025080501

4 weeks
Awaiting delivery
Kamami is the official distributor of Seeed Studio modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

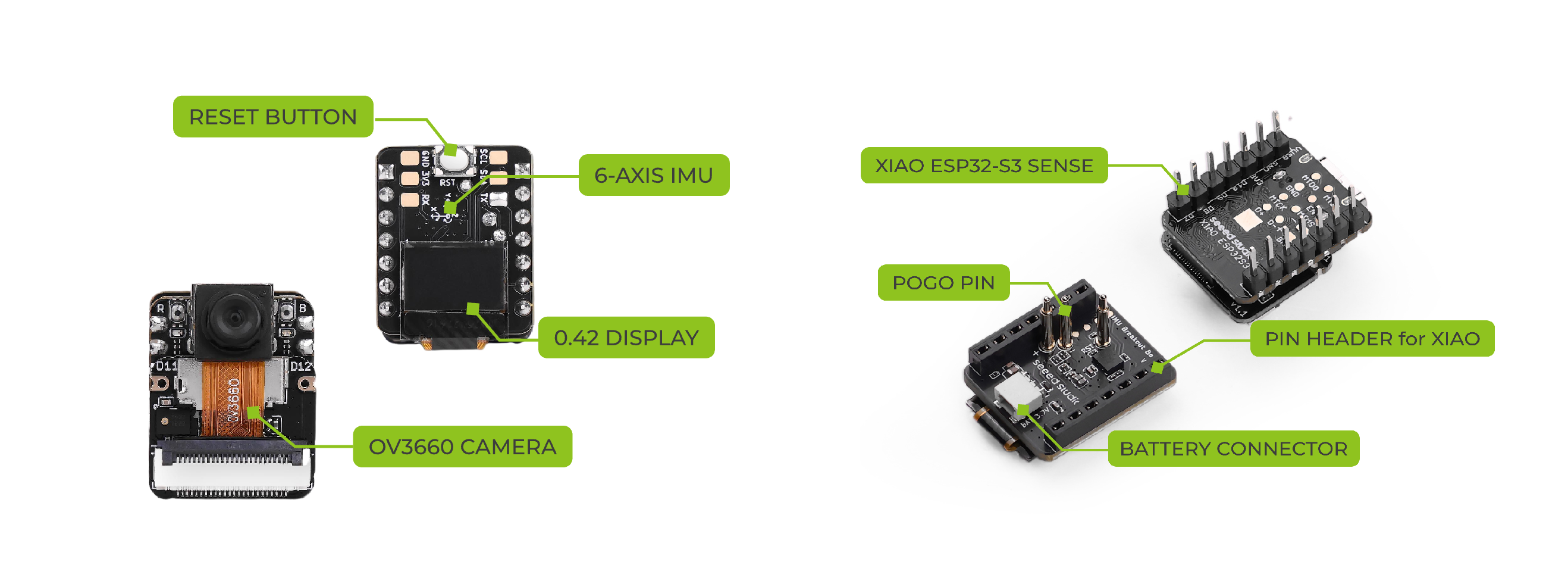

XIAOML Kit is a comprehensive educational kit for learning machine learning and tinyML. It is based on the Seeed Studio XIAO ESP32-S3 Sense, which features a built-in OV3660 camera and a digital microphone, enabling work with visual and audio data without the need for additional modules. The included expansion board integrates a 6-axis IMU sensor and a clear 0.42" OLED display, allowing motion analysis and real-time data visualization. Thanks to microSD card support, training data and experiment results can be conveniently stored.


The kit is designed for students, educators, and developers who want to gain hands-on experience in Edge AI. XIAOML Kit enables a wide range of projects, including image classification, object detection, keyword spotting, and motion and gesture analysis. The tinyML® laboratories, developed in collaboration with Marcelo Rovai (UNIFEI), guide users step by step through building and deploying ML models on resource-constrained devices. The kit is fully compatible with Arduino IDE, TensorFlow Lite, and the SenseCraft AI platform for no-code model training and deployment. Its compact size, power options via USB-C or a 3.7 V battery, and Wi-Fi and BLE connectivity make XIAOML Kit suitable for both classroom use and field projects. It is an ideal tool for learning and experimenting with modern machine learning systems on microcontrollers.

Features

  • Microcontroller: XIAO ESP32-S3 Sense
  • Built-in sensors: OV3660 camera, digital microphone
  • Wireless connectivity: Wi-Fi, Bluetooth Low Energy (BLE)
  • Card reader: microSD
  • Display: 0.42" OLED, SSD1315 controller
  • IMU: LSM6DS3TR-C, 6DOF
  • Button: Reset
  • Battery connector: JST 1.0 mm, 2-pin
  • Software support: Arduino IDE, SenseCraft AI, TensorFlow Lite
  • Power supply: USB Type-C or 3.7 V Li-Po battery
  • Dimensions: 21 × 17.8 × 30 mm
  • Weight: 10.6 g

Kit contains

  • Seeed Studio XIAO ESP32-S3 Sense (with soldered pins, OV3660 camera, microphone, and microSD reader)
  • IMU board with OLED display for XIAO ESP32-S3
  • 2.4 GHz FPC antenna (1.16 dBi)
  • 2 × heatsinks
  • microSD set:
    • SanDisk microSD card 32 GB
    • USB Type-C to USB Type-A adapter
    • USB Type-A to USB Type-C cable (20 cm)
1202930

Data sheet

Microcontroller
ESP32-S3
Flash memory
8 MB
Number of I/O
11
Ethernet
none
WiFi/BT module
Yes
Bluetooth module
Yes
MicroSD slot
Yes
Length
21 mm
Width
17,5 mm
USB connector type
USB type C
