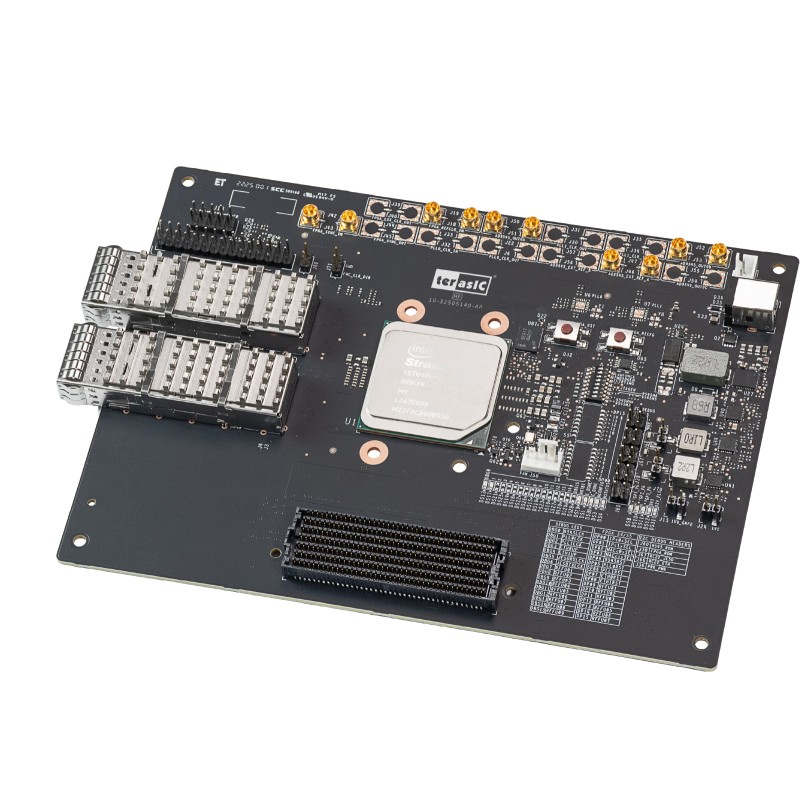

TerasIC Stratix 10 Sensor Processing Kit - development kit with Altera Stratix 10 TX FPGA
ID: 1203140
zł9,349.00
Tax included
zł7,600.81 tax excl.
An advanced FPGA platform based on the Altera Stratix 10 TX, designed for ultra-high-throughput sensor data processing. It supports direct data streaming to the GPU using NVIDIA Hololink IP and GPUDirect RDMA, ensuring extremely low latency. Dual 100GbE (RoCE v2) interfaces and an FMC+ connector enable integration with advanced sensor modules and JESD204C interfaces. TerasIC P0817
Description
Stratix 10 Sensor Processing Kit is an advanced hardware platform for processing ultra-high-throughput sensor data, based on the powerful Altera Stratix 10 TX FPGA. It is designed for real-time streaming data transfer directly into GPU memory using NVIDIA Hololink IP and GPUDirect RDMA technologies. This solution enables extremely low latency and very high data transmission bandwidth.
The platform supports two 100GbE interfaces operating in the RoCE v2 standard, making it an ideal choice for the most demanding applications. Thanks to the VITA 57.4 FMC+ connector, integration with a wide range of commercial sensor modules is possible. When an appropriate FMC+ module is connected, the system supports the JESD204C interface as well as high-speed AD/DA conversion. Numerous control interfaces such as SPI and LVDS are also available. The kit is perfectly suited for prototyping and development of edge AI solutions compatible with the NVIDIA Holoscan platform. Typical applications include medical imaging, radar systems, industrial inspection, and scientific instrumentation. It is a tool designed for engineers and R&D teams that require maximum performance and flexibility.

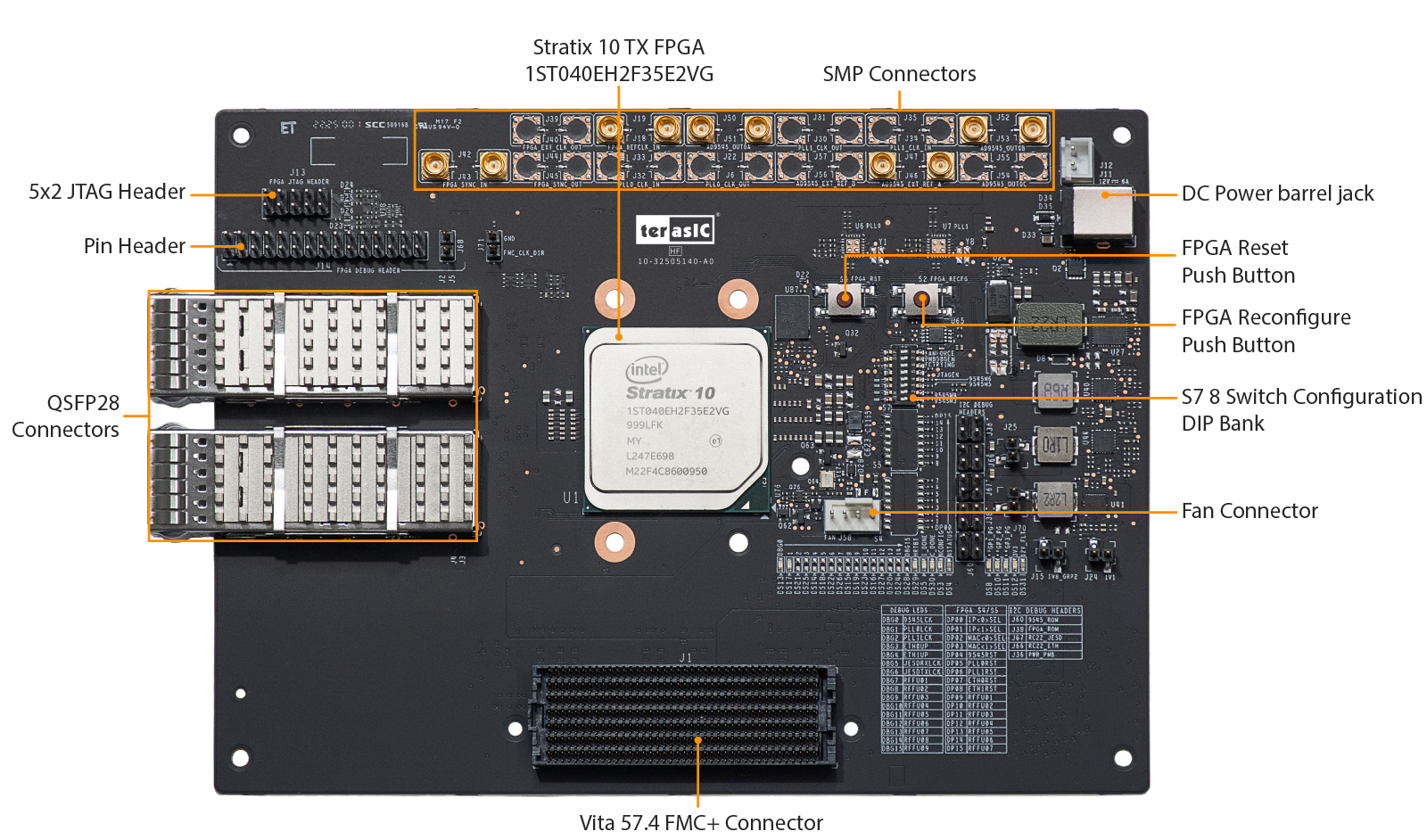

Features
- FPGA device: Altera Stratix 10 TX (1ST040EH2F35E2VG)
- Network interfaces: 2× QSFP28 (dual 100GbE, RoCE v2)
- Support for NVIDIA Hololink IP and GPUDirect RDMA
- Expansion connector: FMC+ (VITA 57.4) with 16 transceivers
- Supported sensor interfaces: JESD204C, SPI, LVDS
- Configuration memory: 512 Mbit QSPI Flash (ASx4 mode)
- Programming and debugging: 2×5 JTAG connector
- Clock synchronization: AD9545 Clock Synchronizer & Jitter Cleaner
- Clock connectors: SMP Clock In / Clock Out
- Additional connectors: EEPROM, debug, and expansion
- Power supply: 12 V DC
Kit contains
- Stratix 10 Sensor Processing Kit
- Active heatsink (installed)
- 12 V power supply
