Compact programmer/debugger from Digilent, designed for use with Xilinx FPGA and SoC devices, including Zynq. With a USB 2.0 interface (up to 30 Mbit/s), power supply from a micro-B port, and full compatibility with Vivado, ISE, iMPACT, and EDK software, it provides convenient and reliable project support. Its design allows easy connection to boards with a 2x7 (2 mm) JTAG socket and sharing the bus with other devices. Digilent 410-299

3 weeks
Awaiting delivery
Kamami is the official distributor of Digilent FPGA kits, modules and measurement tools. All products of this brand in our offer are original and come directly from the manufacturer.

Description

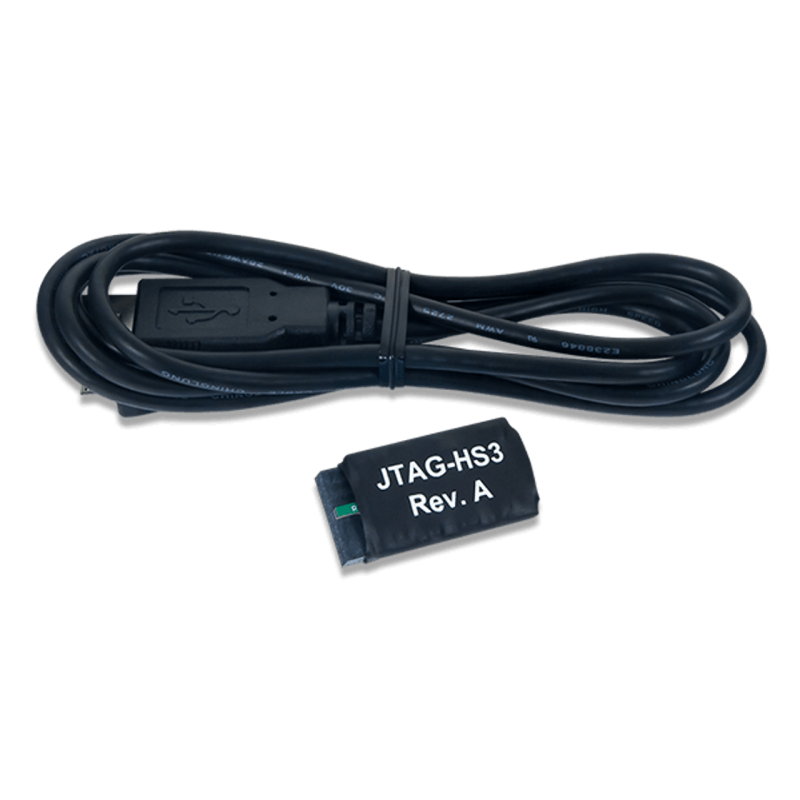

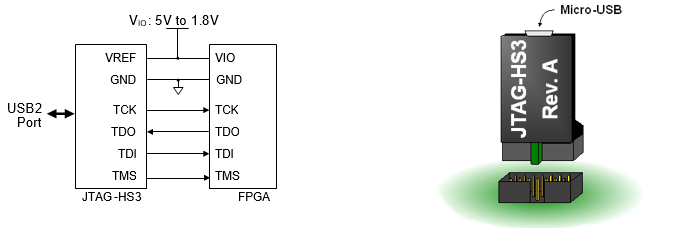

JTAG-HS3 is an affordable and high-speed programming and debugging solution for Xilinx® FPGA and SoC devices, developed by Digilent. It is designed as an enhanced version of the popular JTAG-HS1, featuring an open-drain buffer on pin 14, enabling support for Zynq-SoC processors. The programmer connects directly to the target board using a standard Xilinx JTAG 2x7 (2.00 mm) header. Powered via a USB micro-B port, it requires no external power supply and is automatically detected by the computer as a Digilent programming cable, even when not connected to the target device.

The USB 2.0 interface allows data transfer speeds up to 30 Mbit/s, ensuring fast and stable programming. JTAG signals remain in a high-impedance state when inactive, allowing the bus to be shared with other devices. The compact and lightweight design makes the JTAG-HS3 ideal for embedded systems. It is fully compatible with Xilinx Vivado® (version 2013.3 and later), ISE® (version 14.1 and later), iMPACT™, ChipScope™, and EDK software. It is worth noting that the programmer is not required for Digilent FPGA boards that include built-in programming circuitry. This solution is ideal for engineers, electronics enthusiasts, and developers of advanced FPGA projects.

Features

  • Compatibility with Xilinx FPGA and SoC devices
  • Supports standard 2x7 JTAG header with 2.00 mm pitch
  • Open-drain buffer on pin 14 – Zynq-SoC support
  • USB 2.0 Micro-B port – data transfer up to 30 Mbit/s
  • USB-powered – no external power supply needed
  • Vref voltage range: 1.8 V – 5 V
  • High-impedance JTAG lines when idle
  • Compact and lightweight – easy integration into embedded systems
  • Compatible with Xilinx tools: Vivado 2013.3+, ISE 14.1+, iMPACT, ChipScope, EDK
  • Compliance: HTC: 8473301180 / ECCN: EAR99
