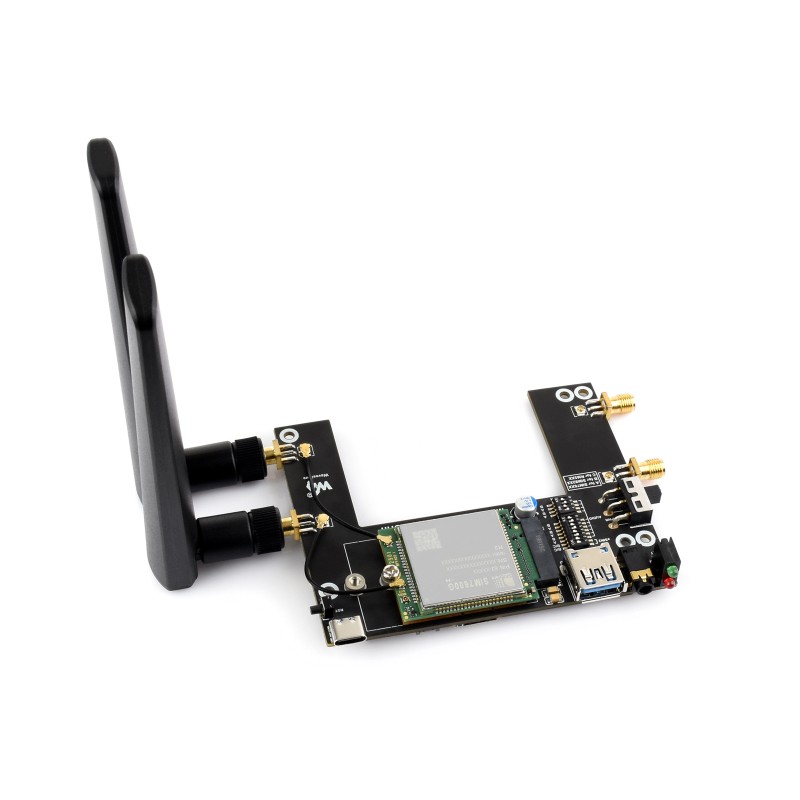

4G communication module with GNSS, M.2 B KEY mounting, USB 3.1 – Waveshare 32257
ID: 1201188
zł451.43
Tax included
zł367.02 tax excl.
SIM7600G-H-M.2 4G for Jetson Orin is a versatile communication module with support for global LTE/3G/2G networks and precise GNSS positioning. Designed for integration with Jetson Orin platforms, it enables fast network connections, data transmission, and voice functions in IoT projects, mobile systems, and industrial communication applications.
Description
4G expansion module designed to work with Jetson Orin Nano and Jetson Orin NX platforms, equipped with the global SIM7600G-H-M.2 modem supporting 4G LTE, 3G and 2G connectivity as well as GNSS positioning systems (GPS, GLONASS, BeiDou, Galileo, QZSS, LBS). The module communicates via USB 3.1 connector (compatible with USB 2.0), enabling fast network connections with PCs, Raspberry Pi and Jetson platforms.
The board features a standard M.2 B KEY socket compatible with various SIMCom and Quectel modules, four SMA antenna connectors, a nano SIM slot and an audio interface with decoder. Configuration switches allow selection of a compatible modem type. Available power inputs via USB or USB-C port (5 V / 3 A).
The board supports phone functions, data transmission (TCP/UDP/MQTT/HTTP/FTP), SMS and extensive operating system support – Windows, Ubuntu, Raspberry Pi OS, OpenWRT.
Properties
- SIM7600G-H-M.2 modem, LTE Cat-4, global support for 4G/3G/2G bands
- Speeds: up to 150 Mbps (DL) / 50 Mbps (UL) – LTE Cat-4
- Support for TCP, UDP, HTTP(S), FTP(S), MQTT, SMS, voice calls
- GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS, LBS
- Interface: USB 3.1 (compatible with USB 2.0), USB-C (power)
- M.2 B KEY slot (compatibility with SIM7600 / SIM8260X / RM5XX)
- nano SIM slot and eSIM (AT command, limited compatibility)
- 4 × SMA antenna connectors (LTE/GPS)
- Audio interface (SIM7600X – voice calls)
- Reserve pads for UART and audio
- Power via USB or USB-C port, current consumption up to 3 A
- LED indicator, RESET button, power switch
- Board dimensions: 100.00 × 79.00 mm
Included
- M.2 4G/5G expansion board for Jetson Orin x1
- SIM7600G-H-M.2 modem x1
- 4G antenna x2
- GPS antenna (external) x1
- IPEX1 to SMA cable (~10 cm) x1
- IPEX1 to IPEX4 cable (~5 cm) x2
- USB 3.0 adapter (type-C) x1
- USB 3.0 Type-A cable (dual plug) x1
- Heatsink x1
- Screwdriver x1
- Mounting screw set x1
- SMA caps (5 pcs) x1
