Expansion board for BBC micro:bit providing access to 21 pins of the edge connector, including additional I/O lines, button A and B signals, LED matrix outputs and the I2C bus. Equipped with solder pads and a prototyping area with 3 V and 0 V rails, it enables sensors, switches and other electronic components to be connected. The kit requires assembly and soldering. Kitronik 5601

24h
Available
Available quantity: 5

Description

The breakout board brings 21 BBC micro:bit pins out to solder pads, providing access to more signals than the standard large contact pads on the microcontroller board. Available connections include additional input and output lines, direct connections to buttons A and B, LED matrix outputs and the I2C bus. The SCL and SDA lines are positioned separately at the edge of the PCB, making them easier to identify and use when connecting I2C devices.


The onboard prototyping area includes 3 V, 0 V and unconnected rows of solder pads, allowing additional circuit sections to be built directly on the board. It can be used to connect switches, sensors, pull-up and pull-down resistors and other electronic components. Clearly labelled connections on the PCB make individual signals easier to identify during circuit assembly and testing.



The board can be used in projects requiring access to additional BBC micro:bit pins, including robots, measurement systems and prototypes using external electronic components. Kitronik 5601 is supplied as a self-assembly version, so the edge connector must be soldered to the PCB before use.

Features

  • Pin breakout and prototyping
    • Access to 21 BBC micro:bit pins
    • Access to additional I/O lines
    • Direct access to button A and B signals
    • Access to LED matrix outputs
    • Access to the I2C bus
    • Separately broken out and labelled SCL and SDA lines
    • Row of solder pads for BBC micro:bit connections
    • Prototyping area with 3 V and 0 V rails
    • Unconnected solder pads for building additional circuits
    • PCB pin labels
  • Assembly and compatibility
    • Designed for BBC micro:bit
    • BBC micro:bit edge connector included for assembly
    • Self-assembly required
    • Soldering required
  • Dimensions
    • Length: 60 mm
    • Width: 40 mm
    • Height: 11.8 mm

Kit includes

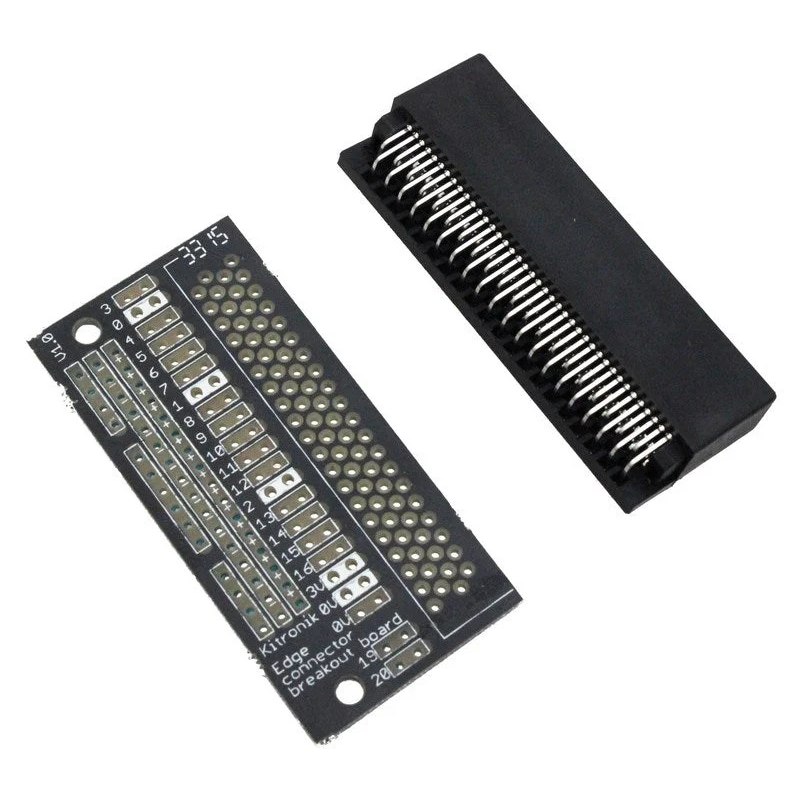

  • 1 x Edge Connector Breakout Board PCB for BBC micro:bit
  • 1 x edge connector for BBC micro:bit
