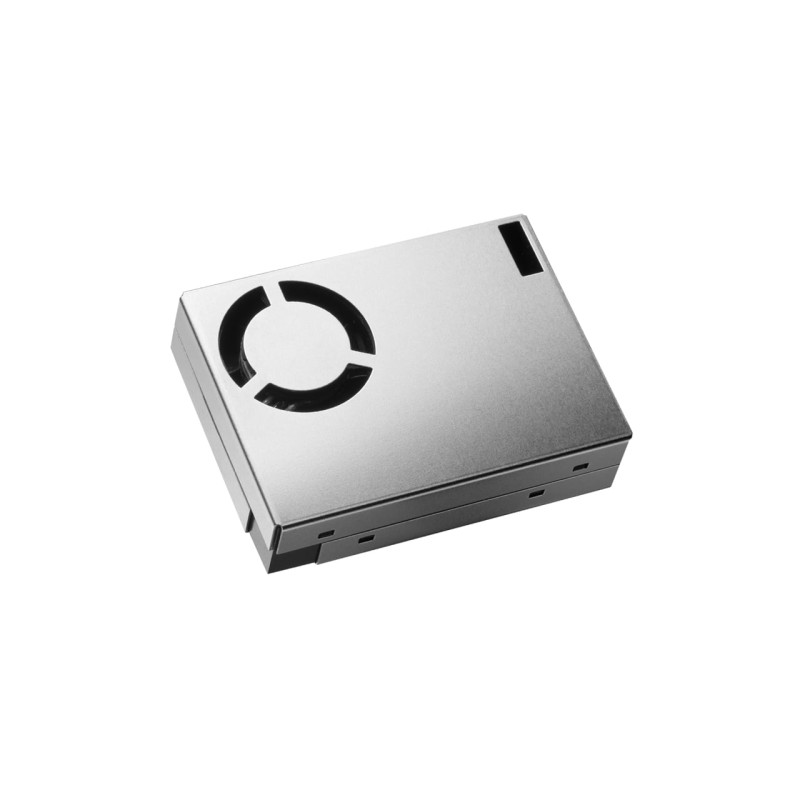

RRH62000-A1V - Air Quality Sensor Module
ID: 1193999
5906623496556
zł179.00
Tax included
zł145.53 tax excl.
The RRH62000-A1V is an integrated air quality sensor module by Renesas, combining the measurement of particulate matter (PM1, PM2.5, PM10), volatile organic compounds (TVOC), estimated carbon dioxide levels (eCO₂), temperature, and humidity in a single device.
Description
The RRH62000-A1V is an advanced air quality sensor module from Renesas that integrates measurements of particulate matter (PM1, PM2.5, PM10), volatile organic compounds (TVOC), estimated carbon dioxide levels (eCO₂), temperature, and humidity in a single device. With I²C and UART interfaces and digital outputs for each parameter, the module enables simultaneous monitoring of key air quality indicators, making it ideal for HVAC systems, building automation, and IoT devices. It features siloxane resistance, a wide operating humidity range (up to 90% RH), and a supply voltage range of 4.5V to 5.5V. The module's dimensions are 46.6 mm × 34.8 mm × 12 mm, and its operating temperature range is -10°C to 60°C, ensuring versatility in demanding environments. It is certified according to JEITA ED-4701 standards, guaranteeing high reliability.
Features
- Simultaneous multi-sensor measurement of all relevant air quality parameters
- Operating humidity range up to 90% RH
- Siloxane resistant
- I²C and UART interfaces
- Certified according to JEITA ED-4701
- Dimensions: 46.6 mm × 34.8 mm × 12 mm
- Supply voltage range: 4.5V to 5.5V
- Operating temperature range: -10°C to 60°C, 6-MOD package
1193999
Data sheet
- Interface
- I2C/UART
- Type of sensor
- inny
- Power supply voltage
- 4.5..5.5V
- Concentration measurement
- PM1.0/PM2.5/PM10
