Low-noise RF amplifier 100 kHz – 6 GHz ZK05-UM Zeenko UM Series, USB-C
ID: 1201359
zł86.90
Tax included
zł70.65 tax excl.
Zeenko ZK05-UM is a wideband low-noise amplifier with high gain and excellent linearity, operating in the 100 kHz – 6 GHz band. Powered via USB-C, it offers a low noise level and high overload resistance, making it a suitable choice for RF applications, antenna systems, and the input stages of spectrum analyzers.
Description
The ZK05-UM is a wideband low-noise amplifier (LNA) from Zeenko, powered via USB Type-C and operating in the frequency range from 100 kHz to 6 GHz. The module is designed for applications requiring low noise, high linearity, and good gain flatness across the entire band. It is suitable for use as an antenna preamplifier or in the input path of spectrum analyzers.
Using an external bias resistor, the supply current can be adjusted. A high 1 dB compression point (OP1dB) and a high third-order intercept point (OIP3) ensure strong overload resistance and good dynamic performance. The device can replace popular modules such as TQP3M9035, QPL9058, TQP3M9037, and QPL9547.
Properties
- Frequency range: 100 kHz – 6 GHz
- Power supply: USB Type-C, 5 V
- Supply current: 68 mA (adjustable via external resistor)
- Gain:
- 28 dB @ 100 kHz / 5 MHz
- 27 dB @ 10 MHz
- 26.5 dB @ 100 MHz
- 24.5 dB @ 1 GHz
- 22.5 dB @ 2 GHz
- 21 dB @ 3 GHz
- 20 dB @ 4 GHz
- 18.5 dB @ 5 GHz
- 16.5 dB @ 6 GHz
- Noise figure (NF):
- 1.9 dB @ 10 MHz
- 1 dB @ 100 MHz
- 0.6–1.7 dB across 1–6 GHz
- OP1dB (1 dB compression point):
- 16 dBm @ 10 MHz
- 18 dBm @ 100 MHz – 4 GHz
- 15 dBm @ 5 GHz
- 13 dBm @ 6 GHz
- OIP3 (third-order intercept point):
- 27 dBm @ 10 MHz
- 30–32 dBm @ 100 MHz – 3 GHz
- 31 dBm @ 4 GHz
- 29 dBm @ 5 GHz
- 23 dBm @ 6 GHz
- Enclosure: compact, shielded
- Notes: wideband design, low noise, suitable replacement for TQP3M9035, QPL9058, TQP3M9037, QPL9547
1201359
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Other products in the same category (16)
LM386 audio amplifier module. It is supplied with the voltage ranging from 4 to 12 V. The set includes an 8 Ω, 0.5 W loudspeaker. DFRobot DFR0064
zł61.97
24h
Available quantity: 1
Available
Class A power amplifier with one channel (mono) with the power of 10 W. Built on the popular design of J. Hood from 1969
zł271.13
24h
Available quantity: 4
Available
Class A power amplifier with one channel, 10 W. Built on the popular design of J. Hood from 1969. The set includes 2 pieces
zł66.63
4 weeks
No product available!
50 W audio signal converter that reduces the speaker signal from the player to the level of RCA inputs. It allows you to connect the radio to an external power amplifier. Fwaeh FH-103
zł25.37
4 weeks
No product available!
Class D stereo sound amplifier based on the Texas Instruments TPA2016D2 circuit. It can work with 4 Ω speakers with power up to 2.8 W or 8 Ω with power up to 1.7 W in stereo mode. SparkFun DEV-20690
zł71.60
24h
Available quantity: 2
Available
Audio amplifier based on the TPA3255 system with a power of 600 W with an active filter. Dedicated to the bass column (subwoofer)
zł273.64
4 weeks
No product available!
The Class D digital audio amplifier module has two channels with a power of 15 W and can work with speakers from 4 to 8 Ω. Powered with the voltage ranging from 8 to 26 V. Bluetooth communication
zł29.42
24h
Available quantity: 4
Available
Class D digital audio amplifier with Bluetooth module. It has two channels with a power of 50 W and can work with speakers from 4 to 8 Ω. It is powered with the voltage in the range from 9 to 24 V. NS-01G
zł139.00
4 weeks
No product available!

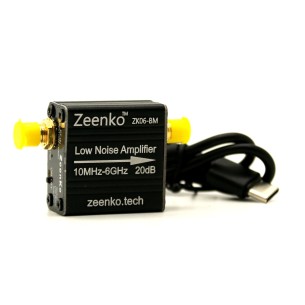

Zeenko ZK06-BM is a portable, low-noise RF amplifier with battery power, operating in the 10 MHz – 6 GHz band. It offers high gain stability, good overload resistance and full compatibility with spectrum analyzers, including tinySA ULTRA. Particularly recommended for measurement applications and antenna systems.
