OpAmp Breakout - module with operational amplifier LMV358
ID: 200867
5906623416783
zł34.10
Tax included
zł27.72 tax excl.

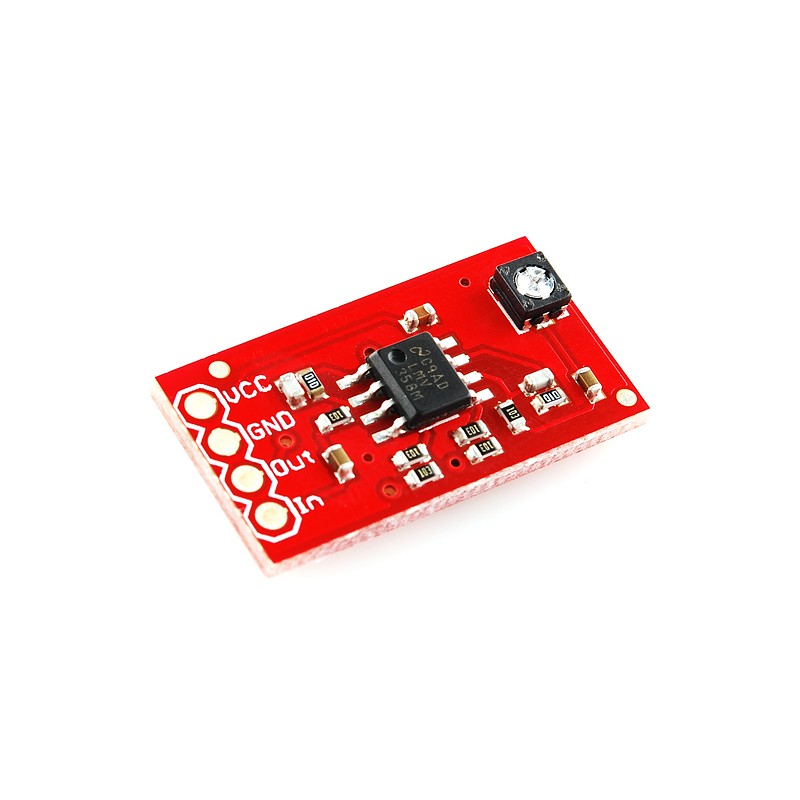

Module with operational amplifier LMV358. It can be used as a low impedance driver or buffer. SparkFun BOB-09816
Description
Module with operational amplifier LMV358. It was configured as a 2-stage amplifier with a gain of 100 (10 for each stage). It is equipped with a potentiometer that regulates the signal level between the stages. It offers a frequency response set to 15.9 kHz with a pair of feedback capacitors, or over 100 kHz without capacitors. It can supply up to 160mA and be used as a low impedance driver or buffer.
Features
- 2-stage operational amplifier
- Boost 100 (10 per rank)
- Potentiometer for adjusting the signal level between stages
- Frequency response 15.9 kHz (with capacitors) or 100 kHz (without capacitors)
- ESD protection
- Operating voltage: 2.7 V to 5 V
- Maximum current: 160 mA
- Dimensions: 23 x 12 mm
