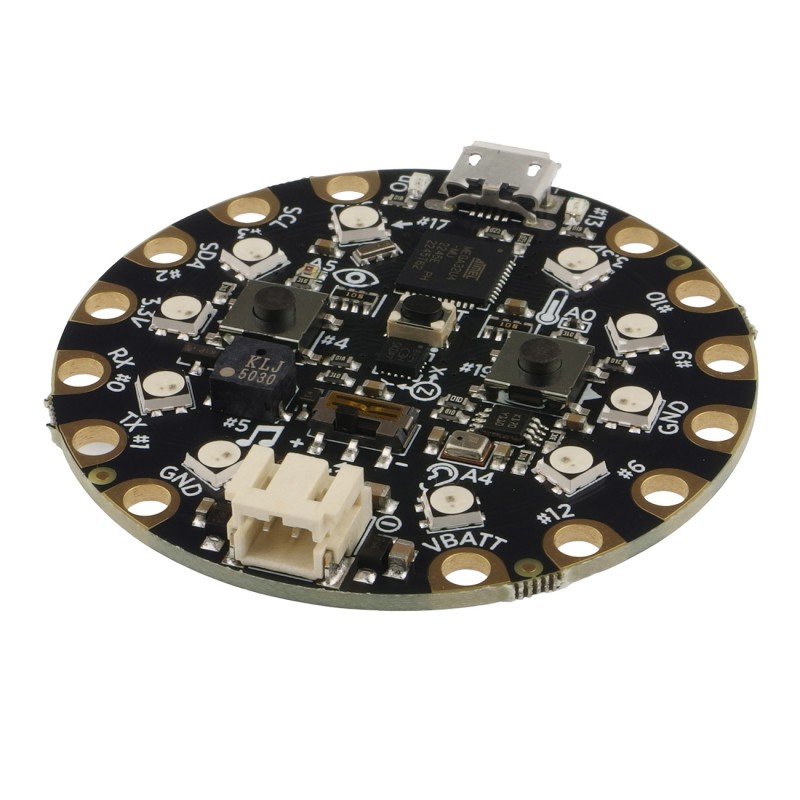

Adafruit 3000 Circuit Playground
ID: 560964
5902186300729
zł90.47
Tax included
zł73.55 tax excl.
Adafruit Circuit Playground Classic is a comprehensive educational platform featuring the ATmega32u4 microcontroller, designed for learning electronics and programming without the need for additional hardware. Integrated sensors, interactive components, and support for the Arduino IDE and code.org enable rapid prototyping and the creation of creative interactive projects. It is especially useful in education, workshops, and as a first step into the world of microcontrollers.
Description
The Adafruit Circuit Playground Classic development board with the ATmega32u4 microcontroller is designed for learning programming and basic electronics without the need for soldering. It is supported by the Arduino IDE and the code.org CS Discoveries educational platform. The chip is factory-programmed with Firmata firmware, allowing immediate use with code.org courses.
The round-shaped board features 8 pads compatible with alligator clips. Built-in sensors and input/output components—such as an accelerometer, temperature sensor, light sensor, MEMS microphone, mini speaker, buttons, and NeoPixel LEDs—enable the creation of diverse projects without the need for additional components. It can be powered via microUSB, a pack of AAA batteries, or a Li-Poly battery (for advanced use).
Specifications
- Microcontroller: ATmega32u4, 3.3 V, 8 MHz
- USB interface: microUSB (for programming and HID – keyboard, mouse, MIDI, joystick)
- Built-in components:
- 10 × NeoPixel RGB LEDs
- 1 × 3-axis accelerometer (LIS3DH)
- 1 × temperature sensor (thermistor)
- 1 × light sensor (phototransistor)
- 1 × MEMS microphone
- 1 × speaker (magnetic buzzer)
- 2 × push buttons (left and right)
- 1 × slide switch
- Inputs/Outputs:
- 8 × I/O pins (analog/PWM/capacitive touch)
- Interfaces: I2C, UART
- Status LEDs: green power LED, red LED #13
- Power supply: USB, AAA batteries, Li-Poly battery
- Reset button
- Diameter: 50.6 mm
- Weight: 8.5 g
560964
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
