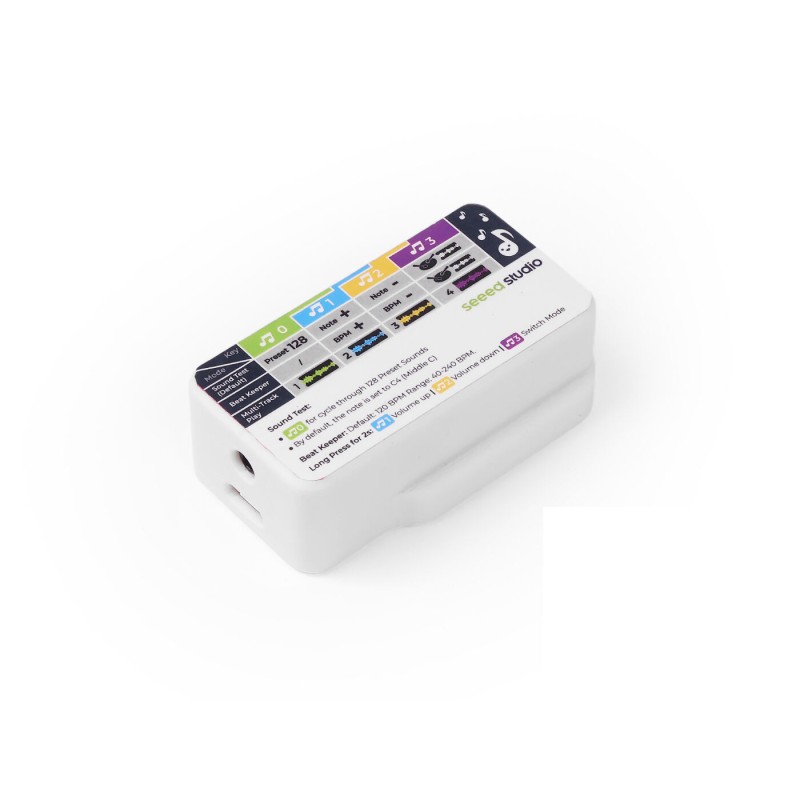

XIAO MIDI Synthesizer - MIDI synthesizer module with XIAO ESP32-C3 and SAM2695 chip
ID: 1198704
5902186305618
zł99.72
Tax included
zł81.07 tax excl.
The compact MIDI synthesizer based on the XIAO ESP32-C3 and SAM2695 chip is a portable sound studio that lets you create music anywhere. With a built-in speaker, hundreds of instrument presets and support for up to 64-voice polyphony, it offers rich sounds and three modes: test, metronome and multitrack. With its open source, ease of use and pocket-sized format, it is the perfect tool for musicians, hobbyists and DIY creators. Seeed Studio 107990333
Description
A compact MIDI synthesizer based on the XIAO ESP32-C3 and the SAM2695 chip, enabling music creation anywhere. Featuring a built-in speaker and hundreds of instrument presets, it offers rich sounds, dynamic polyphony up to 64 voices, and intuitive control. The device includes three operating modes – sound test, metronome, and multi-track playback – allowing both beginners and advanced users to freely explore the world of sound.
The module requires no configuration. Thanks to four control buttons and a 3.5 mm audio port, you can compose, record, or test sounds without additional equipment. Hardware and software openness allow full customization, and the pocket-sized format means you can always have your music studio at hand. An ideal choice for developers, hobbyists, sound creators, and musicians seeking a portable, fully modifiable tool for working with sound.
Features
- Microcontroller: XIAO ESP32-C3
- Audio chip: SAM2695 MIDI
- Polyphony: up to 64 voices
- Instrument presets: over 100 sounds
- Audio connector: 3.5 mm jack (automatic speaker mute when headphones connected)
- Speaker: built-in with class D amplifier
- Physical buttons: 4 buttons for interaction (short and long presses)
- Power supply: 5V via USB-C connector
- Operating modes: Sound Test, Metronome (40–240 BPM), Multi-track Playback
- Platform support: Arduino IDE, MIDI 1.0 protocol
- Case: 3D printed, open-source, fully customizable
- Dimensions: 71 × 49 × 28.5 mm
1198704
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
