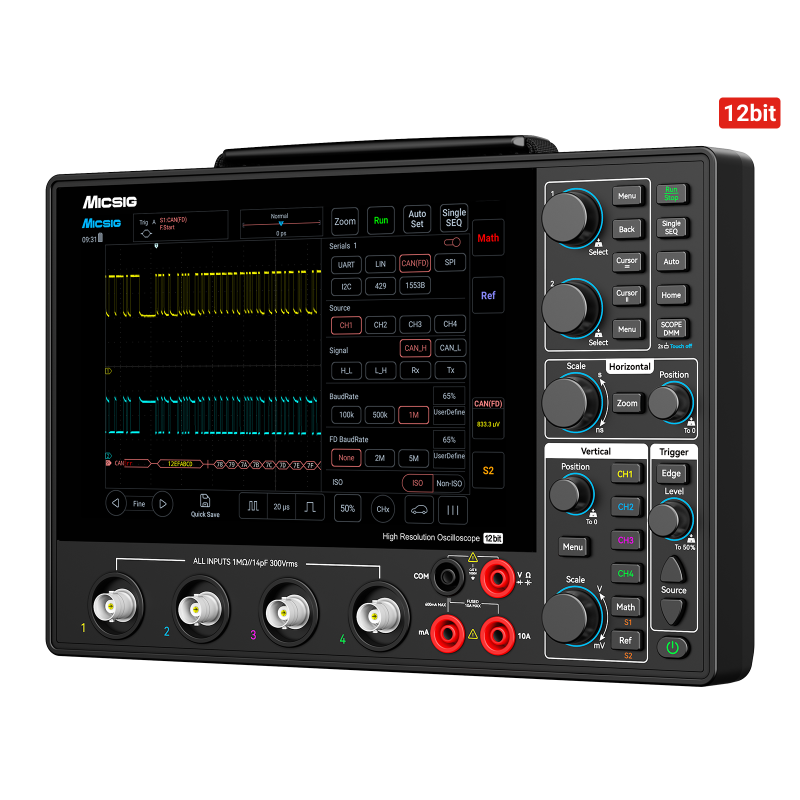

  • Main view
  • Angled view
  • Top view
  • Bottom view
  • Side view
  • Angled view with probes
  • Oscilloscope with carrying case (packaging)
ID: 1205621
zł4,674.00
Tax included

zł3,800.00 tax excl.

Micsig AHO14-200 combines a 4-channel 200 MHz oscilloscope and a 4 5/6 digit multimeter in a device designed for automotive diagnostics. Built-in 16000 mAh battery and support for CAN and LIN buses enable mobile measurements in vehicle systems. Micsig AHO14-200

4 weeks
Awaiting delivery
Kamami is the official distributor of Micsig oscilloscopes and accessories. All products of this brand in our offer are original and come directly from the manufacturer.

Description

Micsig AHO14-200 is designed for diagnostics of automotive electronic systems and signal analysis in embedded applications. The device integrates a 4-channel oscilloscope with 12-bit vertical resolution and a 4 5/6 digit digital multimeter, enabling simultaneous measurement of dynamic signals and electrical parameters. Support for communication buses such as CAN, LIN and FlexRay allows use in vehicle diagnostics and industrial systems.

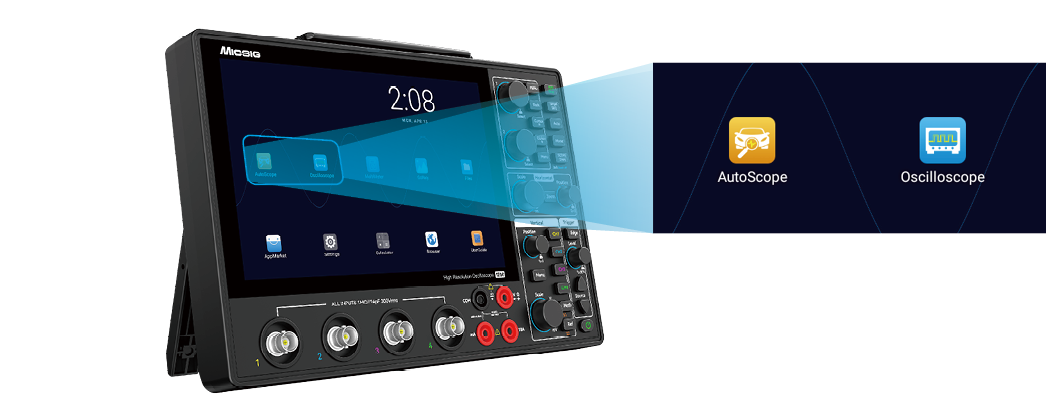

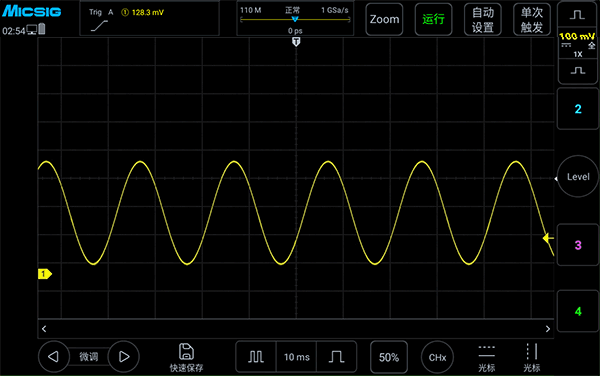

  p1205621-%E5%8F%8C%E7%A4%BA%E6%B3%A2%E5%99%A8_1776323790.png           p1205621-MHO1_1732612024_1754384896.gif

The built-in 16000 mAh Li-Ion battery enables mobile operation without external power. An 8" TFT-LCD display with a resolution of 1280 × 800 provides clear waveform visualization. USB, LAN and HDMI interfaces allow connection to external devices and data storage.

Features

  • Bandwidth: 200 MHz
  • Channels: 4
  • Sampling rate: 1 GSa/s
  • Vertical resolution: 12 bit
  • Memory depth: 110 Mpts
  • Waveform capture rate: up to 50000 wfms/s
  • Rise time: ≤ 1.75 ns
  • Display: 8" TFT-LCD, 1280 × 800
  • Multimeter: 4 5/6 digits
  • Interfaces: USB 3.0 Host, USB Type-C, LAN, HDMI
  • Power supply: Li-Ion battery 16000 mAh
  • Charging: 12 V DC, USB Type-C 5 V
  • Bus support: CAN, CAN FD, LIN, FlexRay, K-Line
  • Dimensions: 265 × 174 × 31 mm
  • Weight: 1.73 kg

Kit includes

  • Micsig AHO14-200 oscilloscope
  • Measurement probes
  • Test leads
  • Power supply
  • Diagnostic accessories
1205621

Data sheet

Type of oscilloscope
Digital
Bandwidth
200 MHz
Sampling rate
1 GSa/S
Memory depth
110 Mpts
Number of channels
4
