RP2350 development board with 1.8-inch AMOLED touch display 368×448 - Waveshare 31296
ID: 1198964
zł119.84
Tax included
zł97.43 tax excl.
RP2350-Touch-AMOLED-1.8 is a compact board with a touchscreen AMOLED display, an RP2350A microcontroller, and a rich set of peripheral features. It enables rapid development of modern interactive devices with a graphical interface, sensor support, and audio, ideal for educational and embedded applications.
Description

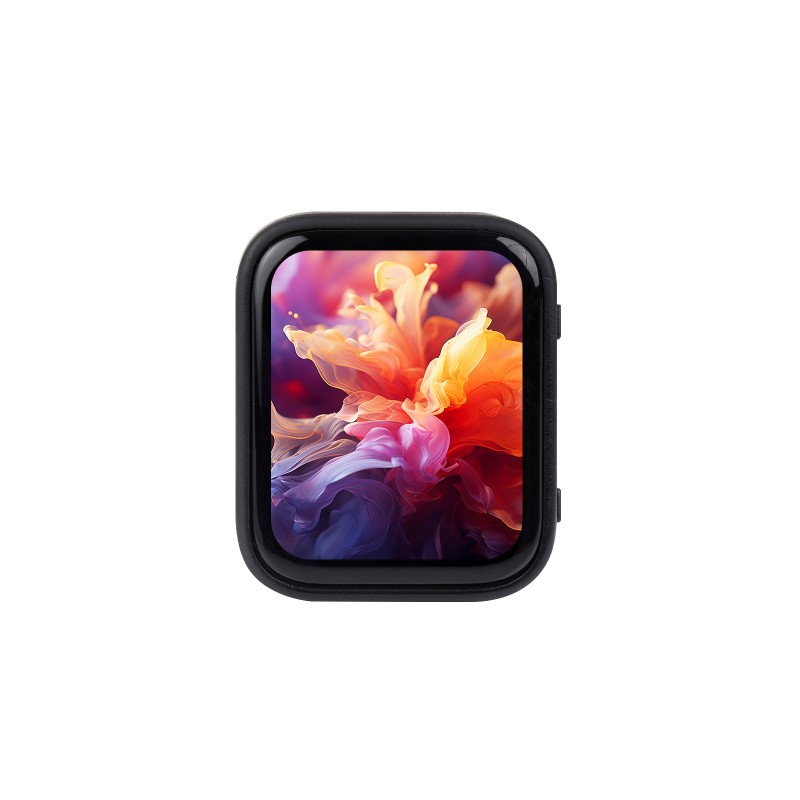

RP2350-Touch-AMOLED-1.8 is a compact development board with a 1.8-inch AMOLED display at a resolution of 368 × 448 pixels and a capacitive touch panel. The integrated RP2350A microcontroller, based on dual architecture (ARM Cortex-M33 or Hazard3 RISC-V), allows operation at up to 150 MHz. Onboard are a 6-axis motion sensor QMI8658 (accelerometer and gyroscope), RTC, 16 MB Flash memory, microphone, ES8311 audio codec, and NS4150B amplifier. The module features a built-in USB Type-C connector for power and programming, a microSD slot, and an MX1.25 connector for an optional 3.7 V battery (not included). A dedicated enclosure allows easy integration into projects with limited space. Support for C/C++, MicroPython, and Arduino IDE, along with comprehensive documentation, ensures a quick start and full project control.
Properties
- Microcontroller: RP2350A, dual-core ARM Cortex-M33 or Hazard3 RISC-V, up to 150 MHz
- Memory: 520 KB SRAM, 16 MB NOR Flash
- Display: AMOLED 1.8" 368×448, 16.7M colors, SH8601 driver
- Touch panel: FT3168, I2C interface
- IMU sensor: QMI8658 (3-axis accelerometer and 3-axis gyroscope)
- RTC: PCF85063
- Audio: ES8311 codec, NS4150B amplifier, microphone, and speaker
- Power supply: USB-C or 3.7 V battery (MX1.25)
- microSD support
- Interfaces: 2× I2C, 1× UART, 1× ADC (12-bit), 5× PWM, 5× GPIO, 12× PIO
- Low-power and sleep modes supported
- Programming: drag-and-drop via USB, support for C/C++, MicroPython, Arduino IDE
- Dedicated enclosure with battery slot and removable cover
- Dimensions: 45.20 × 37.60 × 15.00 mm
1198964
Data sheet
- Microcontroller
- RP2350
- Flash memory
- 16 MB
- Number of I/O
- 22
- Ethernet
- none
- WiFi/BT module
- No
- Bluetooth module
- No
- MicroSD slot
- Yes
- Length
- 45,2 mm
- Width
- 37,6 mm
- USB connector type
- USB type C
