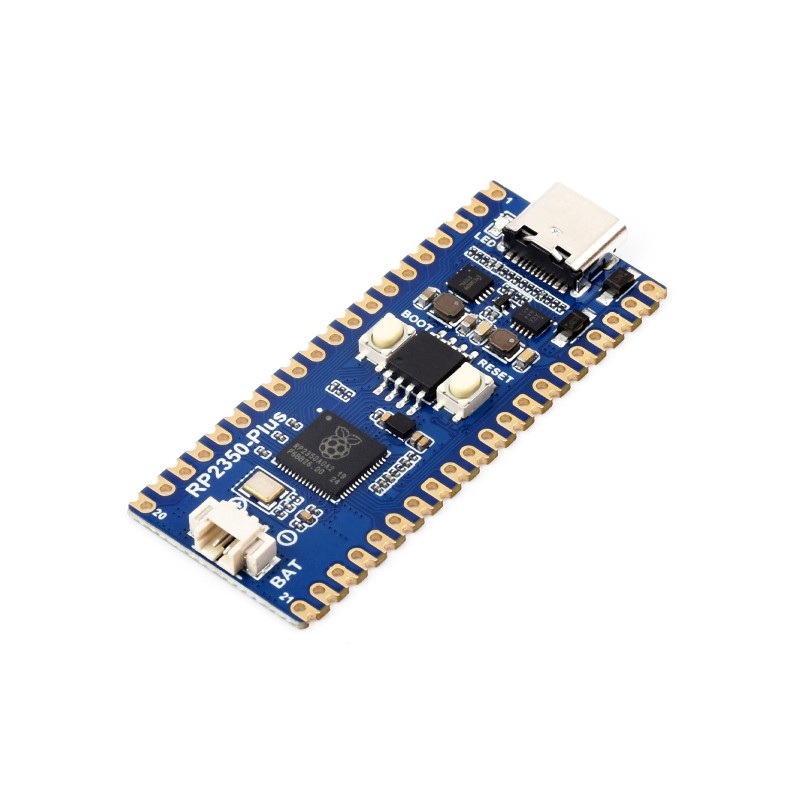

RP2350-Plus development board 4 MB - Waveshare 29370
ID: 1197494
5902186304949
zł24.93
Tax included
zł20.27 tax excl.
RP2350-Plus without headers is a universal development board designed for developers who prefer surface-mount soldering or custom connector configurations. Thanks to a large number of peripherals, a powerful chip, and full compatibility with the Raspberry Pi Pico, it provides a solid foundation for developing consumer, educational, and professional electronics projects.
Description
RP2350-Plus is a compact and cost-effective development board designed in the Raspberry Pi Pico form factor, based on the RP2350A microcontroller. This version without pre-soldered headers includes 4 MB of Flash memory and allows flexible mounting in embedded projects and integration with baseboards. The dual-core chip featuring ARM Cortex-M33 and RISC-V architecture offers high performance and versatility for microcontroller applications.
Features
- Microcontroller: RP2350A with dual ARM Cortex-M33 cores and dual RISC-V Hazard 3 cores
- Clock speed: up to 150 MHz
- Memory: 520 KB SRAM, 4 MB Flash (W25Q32JVSSIQ)
- Power and communication via USB Type-C (USB 1.1 host/device)
- Lithium battery charging chip (ETA6096), MX1.25 connector
- MP28164 DC-DC converter, up to 2 A output
- 26 GPIO, 2× SPI, 2× I2C, 2× UART, 4× 12-bit ADC, 16 PWM channels
- 12 programmable PIO blocks, clock and timer, temperature sensor
- Drag-and-drop programming via USB MSC
- Compatible with Raspberry Pi Pico add-ons
- Castellated edges – suitable for surface-mount soldering
1197494
Data sheet
- Microcontroller
- RP2350
- Flash memory
- 4 MB
- Number of I/O
- 26
- Ethernet
- none
- WiFi/BT module
- No
- Bluetooth module
- No
- MicroSD slot
- No
- Length
- 51mm
- Width
- 21 mm
- USB connector type
- USB type C
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
