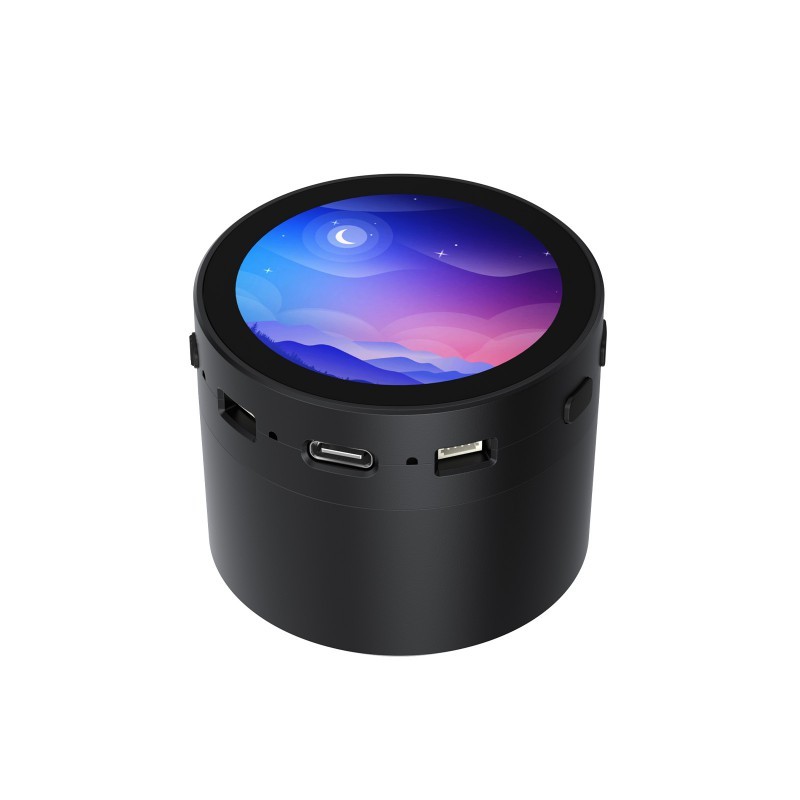

Development board based on the RP2350A microcontroller with a 1.85-inch round capacitive LCD touch display at 360 x 360 resolution and 65K colors, supporting ARM Cortex-M33 and RISC-V architectures, comes with a speaker box, designed for user interfaces and embedded systems. Waveshare RP2350-Touch-LCD-1.85C-BOX-EN

6 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

RP2350 Touch LCD 1.85 is a compact and highly integrated development board designed by Waveshare for modern user interfaces, IoT devices, and embedded systems. The onboard RP2350A microcontroller, developed by Raspberry Pi, features a unique dual-core and dual-architecture design, allowing operation with either two ARM Cortex-M33 cores or two Hazard3 RISC-V cores at clock speeds of up to 150 MHz.

The board integrates a round 1.85-inch capacitive IPS LCD with a resolution of 360 x 360 pixels and a 65K color depth. The display offers wide viewing angles, good readability, and smooth touch operation handled via an I2C interface with interrupt support, enabling intuitive graphical user interface design.


The board is equipped with 16 MB of Flash memory, a microSD card slot, an RTC chip, an audio codec, a microphone, and USB, UART, and I2C communication interfaces. The version with a speaker box and a speaker supports audio-enabled projects, while the 3.7 V MX1.25 battery connector with charging function enables mobile applications. Support for C/C++, MicroPython, and Arduino IDE allows quick startup and easy integration into educational and prototyping projects.

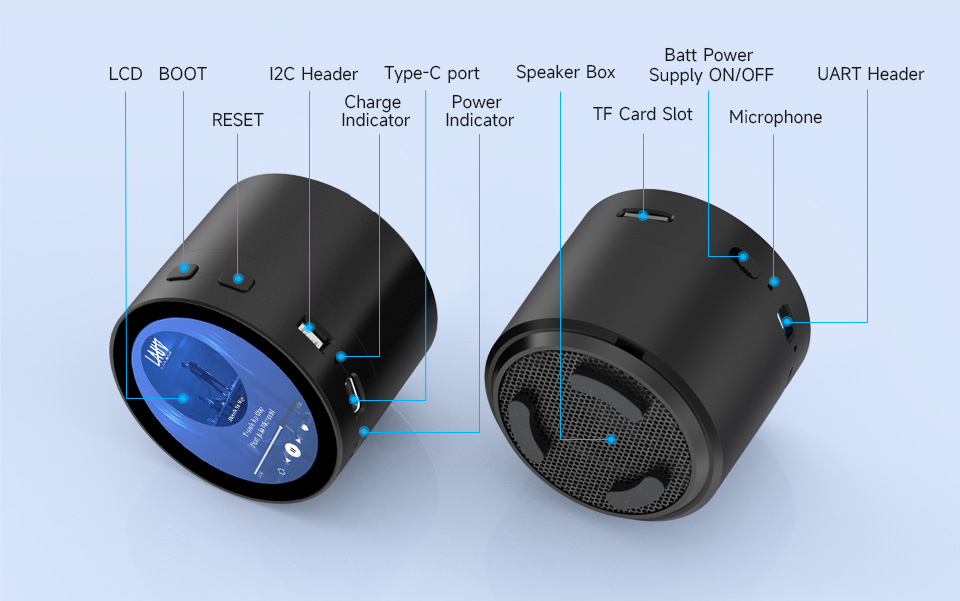

  1. RP2350A -Dual-core and dual-architecture design, up to 150 MHz operating frequency
  2. 16MB NOR-Flash
  3. TF card slot
  4. Amplifier chip
  5. Batt charging management chip
  6. Speaker header
  7. Batt power supply ON/OFF
  8. Microphone
  9. UART header
  10. Power indicator
  11. MX1.25 Batt header - for 3.7V Lithium Batt, supports charging and discharging, with charging current of up to 1A
  12. USB Type-C port - for programming, USB 1.1 with device and host support
  13. Charge indicator - Lithium Batt charge indicator, lights up when charging, off when fully charged (the light status is uncertain when the Batt is not connected)
  14. 12C header - connecting with internal chip, only supports the 12C peripherals and cannot be mapped to other functions
  15. RTC Batt header - for connecting rechargeable RTC Batt
  16. RESET button
  17. ES8311 - low-power audio codec chip
  18. 1.27mm pin header - Reserved 28PIN header, adapting GPIO and other function pins
  19. BOOT button - press it when resetting to enter download mode
  20. RTC chip - PCF85063 RTC chip

                                                                                                                                  Pin definition


Features

  • Microcontroller: RP2350A
  • Architecture: dual-core, ARM Cortex-M33 or Hazard3 RISC-V
  • Clock frequency: up to 150 MHz
  • RAM: 520 KB SRAM
  • Flash memory: 16 MB NOR Flash
  • Display: capacitive IPS LCD
  • Display size: 1.85 inch
  • Resolution: 360 x 360
  • Color depth: 65K
  • Touch interface: I2C with interrupt support
  • USB: USB 1.1 device and host
  • GPIO: 18 multifunctional pins
  • Interfaces: 2 x SPI, 2 x I2C, 2 x UART
  • ADC: 4 x 12-bit
  • PWM: 12 channels
  • PIO: 12 programmable state machines
  • RTC: PCF85063
  • Audio codec: ES8311
  • Card slot: microSD (TF)
  • Battery connector: MX1.25 2-pin
  • Battery voltage: 3.7 V
  • USB port: USB Type-C
  • Temperature sensor: built-in
  • Supported environments: C/C++, MicroPython, Arduino IDE

Kit includes

  • 1x RP2350-Touch-LCD-1.85C development board
  • 1x Speaker box
  • 2x SH1.0 4-pin cable ~100 mm
  • 1x 8 Ω 2 W speaker

Note!

3.7 V lithium battery is not included

1202589

Data sheet

Microcontroller
RP2350A
Flash memory
16 MB
Number of I/O
18
Ethernet
none
WiFi/BT module
No
Bluetooth module
No
MicroSD slot
Yes
Length
51mm
Width
58 mm
USB connector type
USB type C
