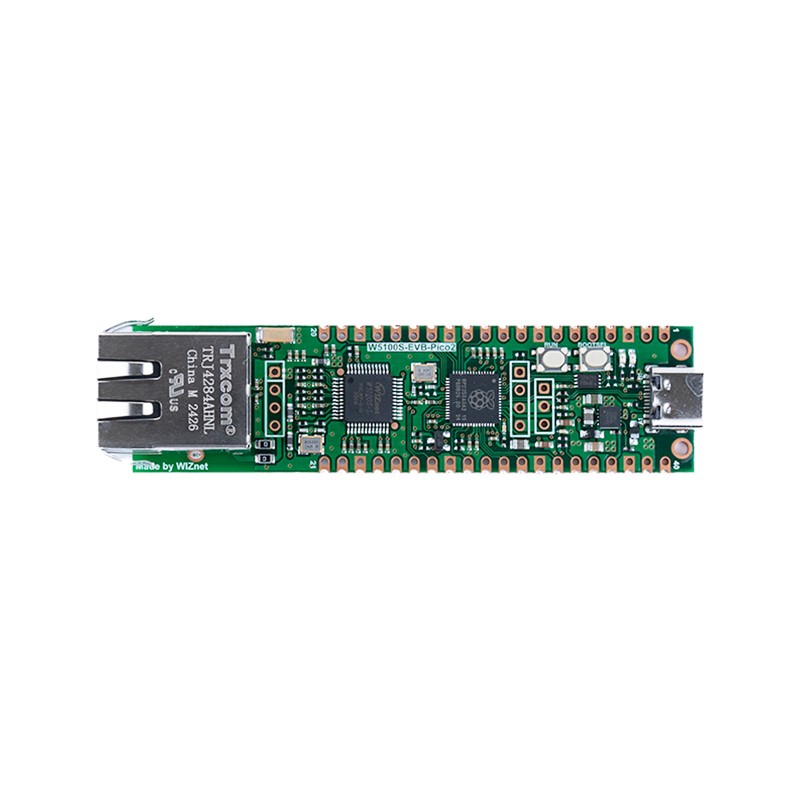

Main view
search
  • Main view
ID: 1207156
zł61.66
Tax included

zł50.13 tax excl.

Development board based on the RP2350 microcontroller combines a dual-core Arm Cortex-M33 processor with the W5100S Ethernet controller featuring a hardware TCP/IP stack. The board maintains compatibility with Raspberry Pi Pico 2 while adding a 10/100 Mb/s Ethernet interface with an RJ45 connector and optional Power over Ethernet support using the WIZPoE-P1 module. It is designed for IoT applications, industrial automation, network communication systems, and embedded devices requiring reliable wired Ethernet connectivity. WIZnet W5100S-EVB-Pico2

24h
Available
Available quantity: 20
Kamami is the official distributor of WIZnet network modules for Raspberry Pi Pico. All products of this brand in our offer are original and come directly from the manufacturer.

Description

The WIZnet W5100S-EVB-Pico2 development board is designed for projects requiring wired Ethernet communication and the capabilities of the RP2350 microcontroller. The hardware combines a dual-core Arm Cortex-M33 processor running at up to 150 MHz with the W5100S Ethernet controller featuring a hardware TCP/IP stack. The board maintains mechanical compatibility and most of the Raspberry Pi Pico 2 pinout, allowing the use of existing accessories and software libraries. It is equipped with a USB Type-C connector, an RJ45 Ethernet port with an integrated Ethernet PHY, and dual 20-pin GPIO headers.

W5100S Ethernet controller with hardware TCP/IP support

The W5100S controller processes network protocols in hardware, reducing the workload of the microcontroller during Ethernet communication. It supports TCP, UDP, IPv4, ICMP, ARP, IGMP, and PPPoE protocols, provides four simultaneous hardware sockets, and includes 16 kB of memory dedicated to TX/RX buffers. The integrated 10/100 Mb/s Ethernet interface combines the MAC and PHY, supports Auto Negotiation, and features Wake-on-LAN (WoL) and Power Down Mode for reduced power consumption.


The board can be expanded with the optional dedicated WIZPoE-P1 PoE module, enabling power delivery through the Ethernet cable in accordance with the IEEE 802.3af standard.


RP2350 microcontroller compatible with Raspberry Pi Pico 2

The RP2350 microcontroller features dual Arm Cortex-M33 cores running at up to 150 MHz, 520 kB of SRAM, and integrated 16 Mbit Flash memory. The device also incorporates advanced security features, including Secure Boot, OTP memory, and Arm TrustZone technology, as well as three Programmable I/O (PIO) blocks, UART, I²C, SPI, PWM interfaces, and a 12-bit ADC. Compatibility with Raspberry Pi Pico 2 simplifies migration of existing projects while allowing the use of compatible expansion boards, software libraries, and development tools.

The manufacturer provides comprehensive technical documentation, schematics, pinout diagrams, 3D models, and example projects for C/C++, FreeRTOS, Ethernet communication, AWS IoT Core, and Microsoft Azure, making it easier to start developing applications with the board.

Features

  • RP2350 microcontroller
  • Dual-core Arm Cortex-M33 processor up to 150 MHz
  • Integrated 16 Mbit Flash memory
  • 520 kB SRAM
  • W5100S Ethernet controller
  • Hardware TCP/IP stack
  • TCP, UDP, IPv4, ICMP, ARP, IGMP, and PPPoE protocol support
  • Support for 4 independent hardware sockets
  • 16 kB TX/RX buffer memory
  • 10/100 Mb/s Ethernet interface
  • RJ45 connector with integrated Ethernet PHY
  • Integrated Ethernet MAC and PHY
  • Auto Negotiation support
  • Wake-on-LAN (WoL)
  • Power Down Mode
  • Up to 48 GPIO pins
  • Up to 8 ADC inputs
  • 12-bit 500 kS/s ADC
  • 2 × UART
  • 2 × I²C
  • 2 × SPI
  • 16 PWM channels
  • 3 PIO blocks with 12 state machines
  • USB Type-C interface for power and programming
  • SWD debugging interface
  • Raspberry Pi Pico 2 compatible
  • C/C++ support
  • FreeRTOS support
  • Optional PoE support via the WIZPoE-P1 module
  • AWS IoT Core Qualified
1207156

Data sheet

Microcontroller
RP2350
Flash memory
2 MB
Number of I/O
48
Ethernet
100Mb x1
WiFi/BT module
No
Bluetooth module
No
MicroSD slot
No
Length
51mm
Width
21 mm
USB connector type
USB type C
